BODY DIMENSIONS (page 3 of 4)

Make

Land Rover

Model

Range Rover L322 Range Rover Service Procedures

BODY DIMENSIONS · page 3 of 4

BODY DIMENSIONS

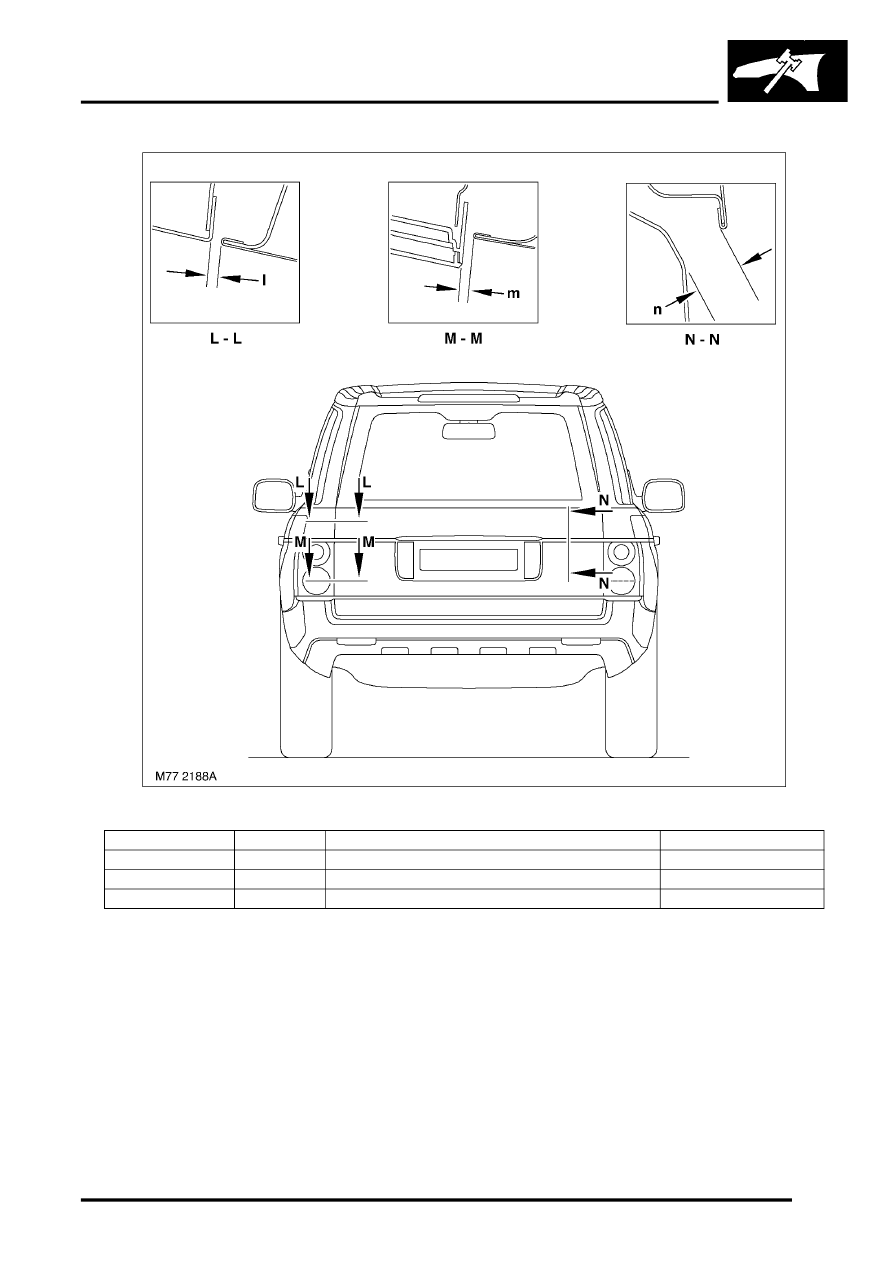

BODY GAPS AND PROFILES

-13

Section

Gap

Description

Dimension

L-L

l

Bodyside to upper tailgate

4.0 (0.157),

±

 1.0 (0.040)

M-M

m

Lower tailgate to tail lamp

5.0 (0.196),

±

 1.5 (0.059)

N-N

n

Upper tailgate to lower tail gate

20 (0.787),

±

 2 (0.078)

97 General
