Transfer gearbox - V8

TRANSFER BOX

41-6

REPAIRS

Transfer gearbox - V8

$% 41.20.25.99

Remove

1. Position vehicle on lift.
2. Disconnect battery earth lead.

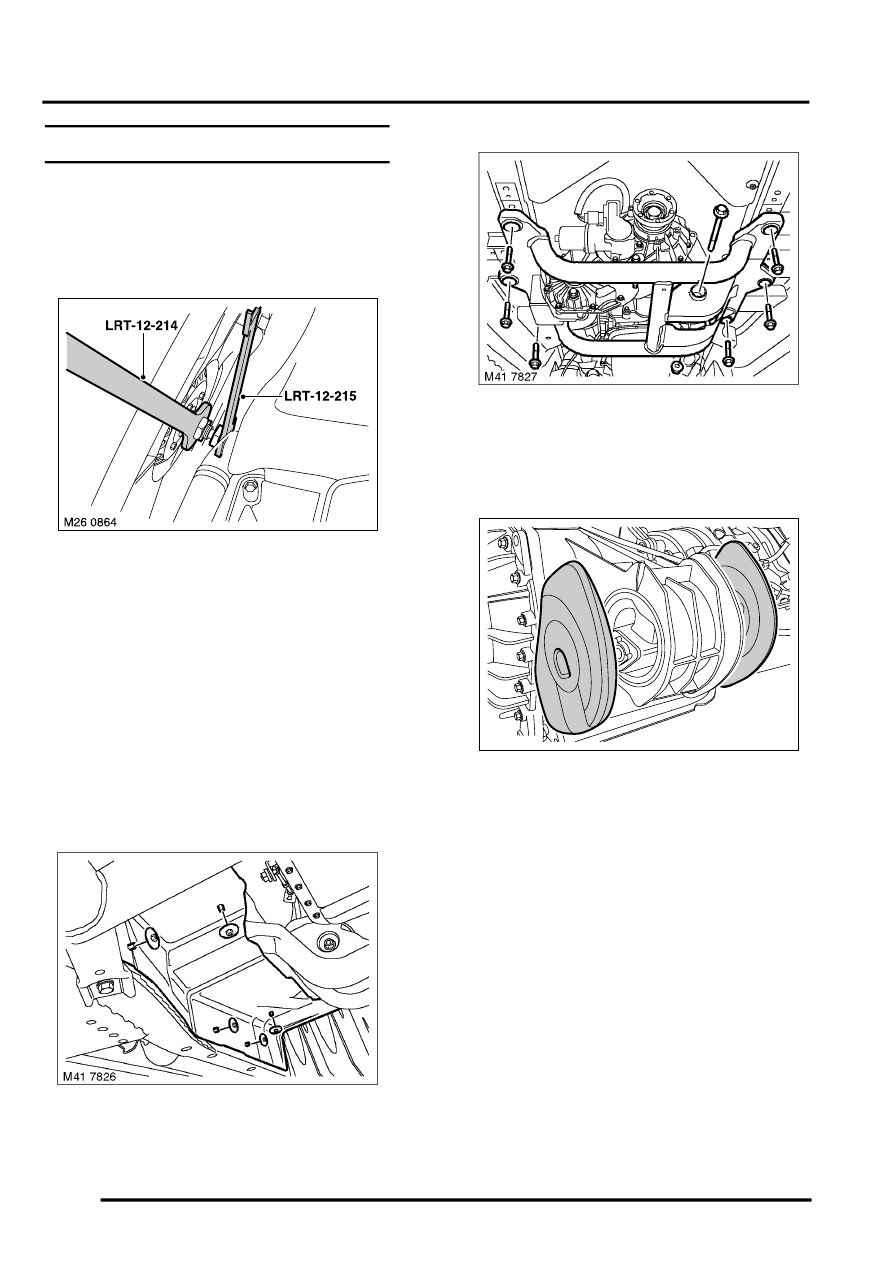

3. Use LRT-12-214 and LRT-12-215 to loosen

viscous coupling lock nut and remove fan
assembly from coolant pump.

NOTE: Thread is left handed.

4. Raise vehicle on lift.
5. Drain transfer gearbox oil.

 +

 TRANSFER BOX, ADJUSTMENTS,

Drain and refill.

6. Remove rear propeller shaft.

 +

 DRIVESHAFTS, REPAIRS, Propeller

shaft - rear.

7. Remove front propeller shaft.

 +

 DRIVESHAFTS, REPAIRS, Propeller

shaft - front.

8. Remove 5 nuts, release and remove RH heat

shield.

9. Support gearbox on a jack.

10. Remove nut and bolt securing mounting to

cross member.

11. Remove 6 bolts securing cross member and

remove cross member.

12. Remove snubbers from mounting.
13. Lower gearbox on jack.

CAUTION: Do not allow gearbox to hang on
gear selector cable.

M41 7828
