Sun roof - align to roof panel & adjust

SUNROOF

ADJUSTMENT

76-6-1

SUNROOF

ADJUSTMENT

Sun roof - align to roof panel & adjust

$% 76.84.82

Check

1. With sunroof closed, check alignment of glass

to roof panel. The glass should be central in its
aperture. Profile of sunroof to body:

l

front edge of sunroof = flush or up to 1.0 mm
(0.040 in) lower

l

rear edge of sunroof = flush or up to 1.0 mm
(0.040 in) higher

Adjust

1. Open sunroof blind.
2. Operate switch to raise sunroof fully.

3. Carefully release upper edges of gaiters from

sunroof glass.

4. Close sunroof.

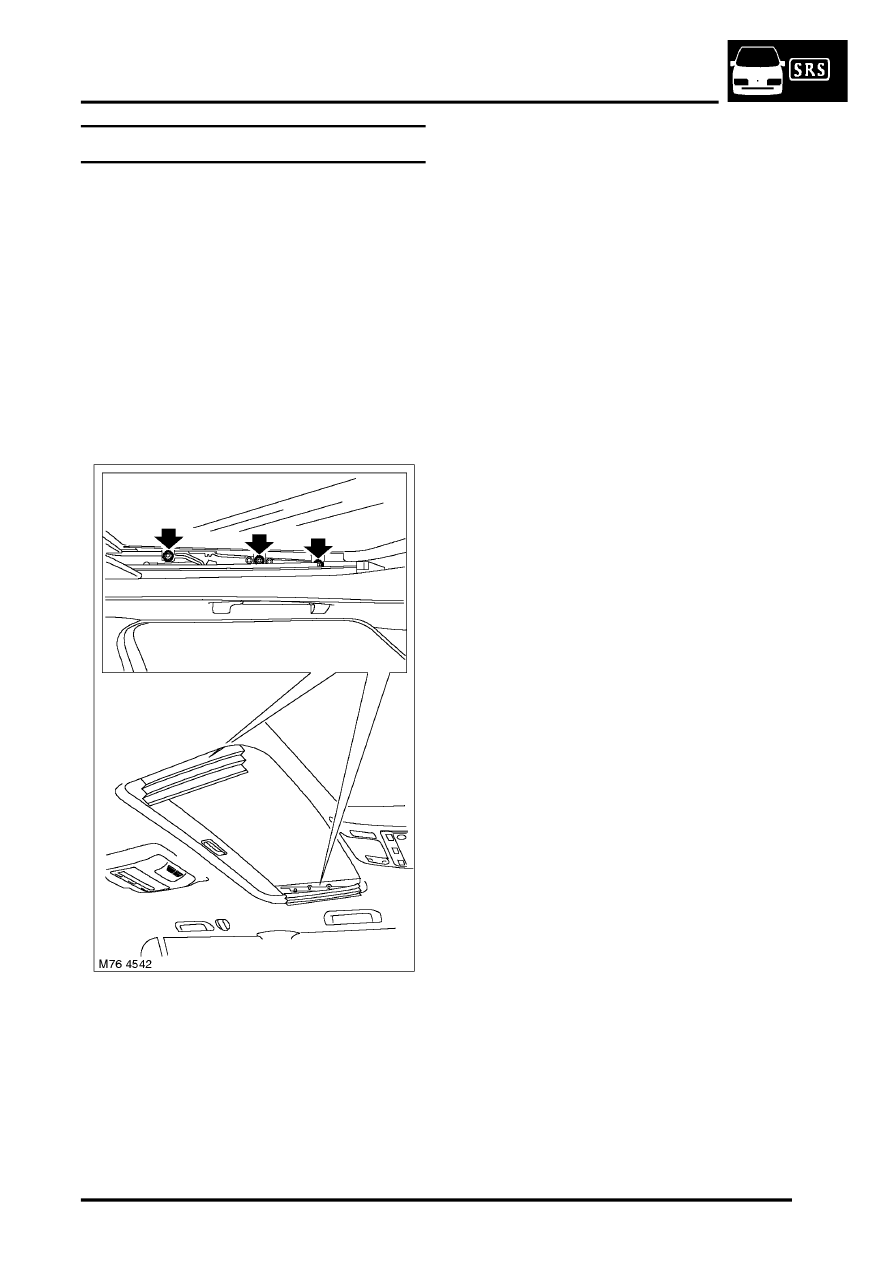

5. Loosen 6 Torx screws securing sunroof glass.
6. Align glass to roof and tighten Torx screws to 6

Nm (4.4 lbf.ft).

7. Operate switch to raise sunroof fully.
8. Fit gaiters to sunroof glass.
9. Close sunroof.

10. Close sunroof blind.
