Engine oil pressure check (ENGINE - V8)

ENGINE - V8

ADJUSTMENTS

12-2-1

Engine - V8

ADJUSTMENTS

Engine oil pressure check

$% 12.90.09.01

Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.


 +

 GENERAL INFORMATION, Electrical

Precautions.

Check

1. Disconnect battery earth lead.
2. Remove oil pressure switch.

 +

 Engine - V8, REPAIRS, Switch - oil

pressure.

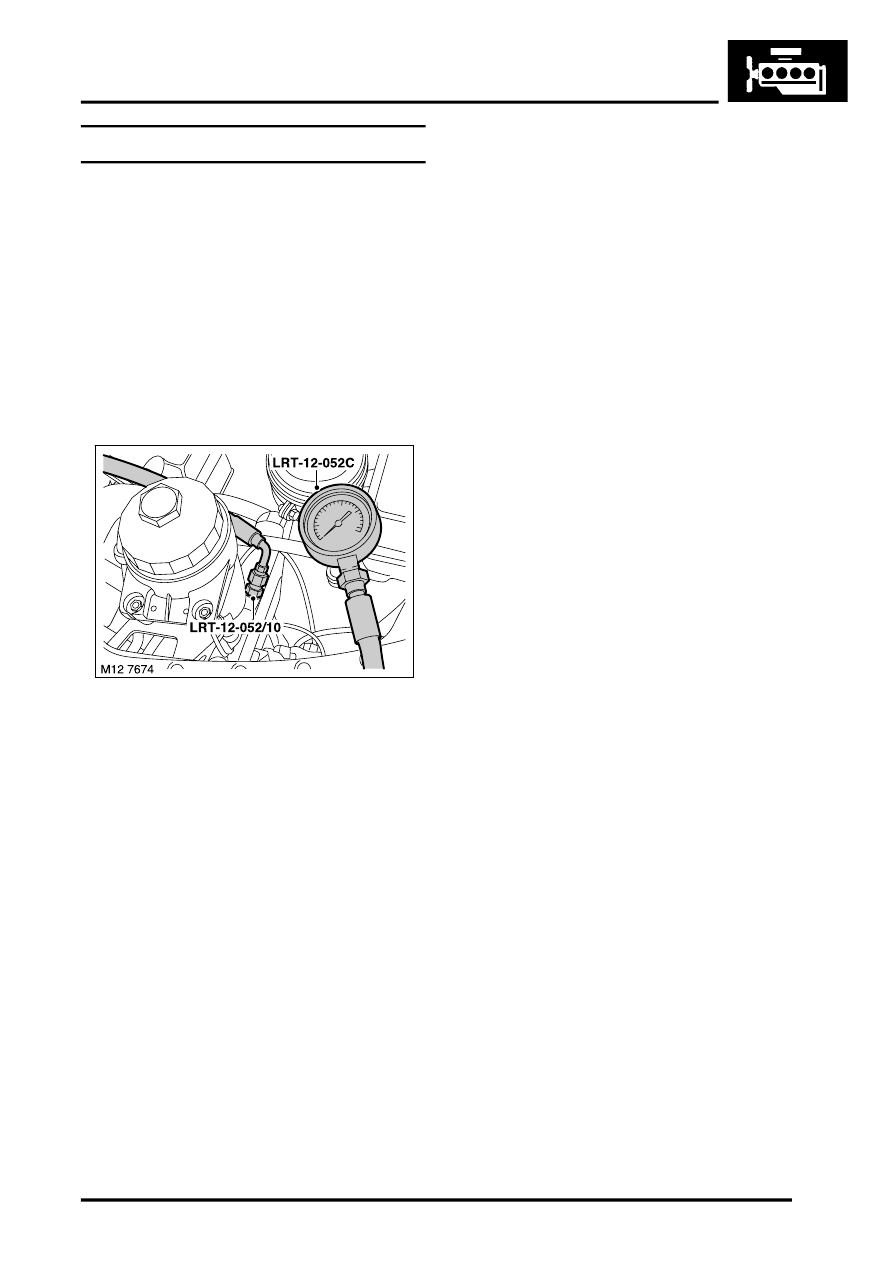

3. Fit LRT-12-052/10 to oil filter housing and fit

LRT-12-052C to LRT-12-052/10, tighten
unions.

4. Check engine oil level, top-up if necessary.
5. Connect battery earth lead.
6. Start and run engine until normal operating

temperature is reached.

7. Note oil pressure readings with the engine

running at idle and at 3500 rev/min.


 +

 GENERAL DATA, Engine - V8.

8. Switch off engine.
9. Disconnect battery earth lead.

10. Remove LRT-12-052C.
11. Remove LRT-12-052/10.
12. Clean oil spillage.
13. Fit oil pressure switch.

 +

 Engine - V8, REPAIRS, Switch - oil

pressure.

14. Check engine oil level, top-up if necessary.
15. Connect battery earth lead.
