Panel - extension - front wing

EXTERIOR FITTINGS

REPAIRS

76-2-1

EXTERIOR FITTINGS

REPAIRS

Panel - extension - front wing

$% 76.10.03

Remove

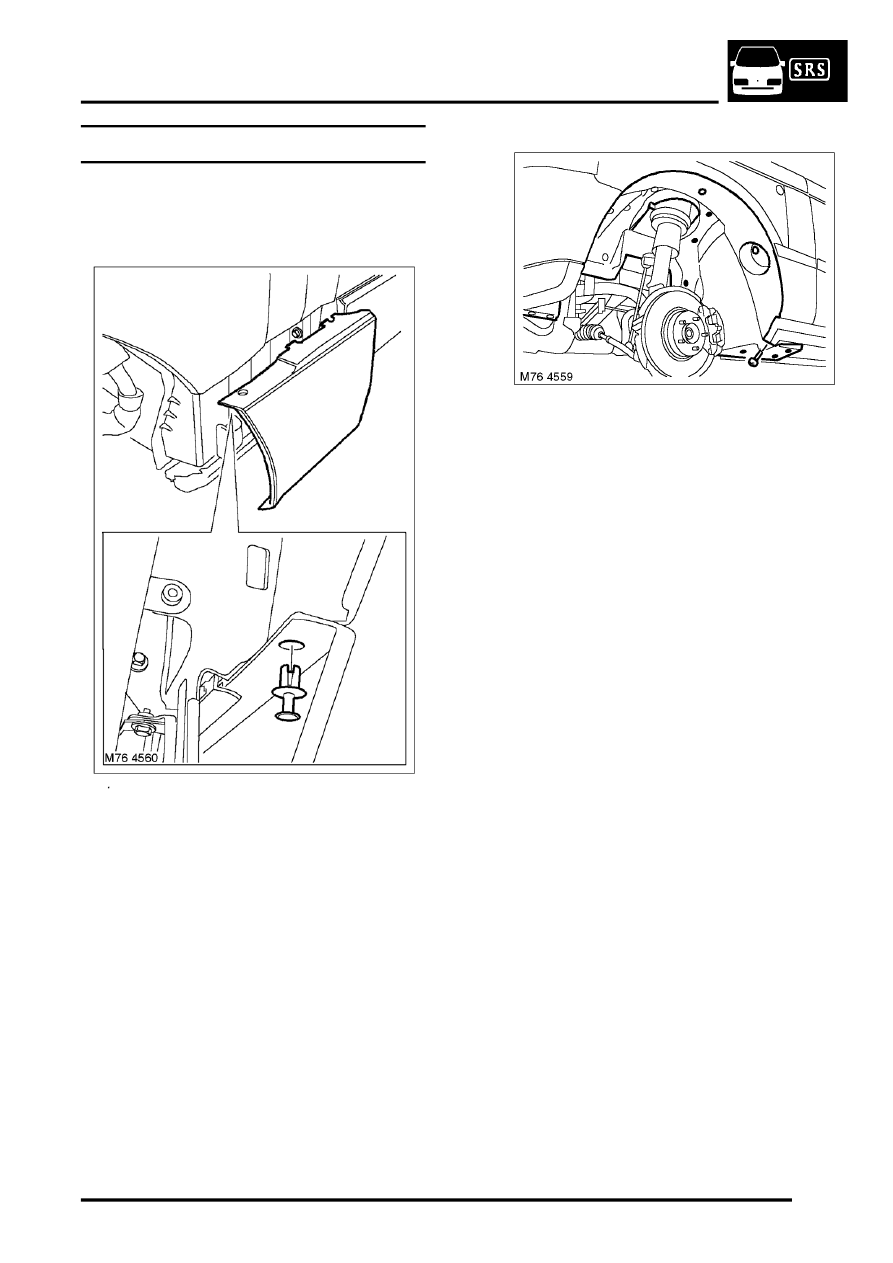

1. Remove 9 screws securing rear of wheelarch

liner to inner wing and sill, release liner from
wing for access.

2. Remove scrivet securing front wing extension

panel to lower wing.

3. Release and remove the lower front wing

extension from retaining clips.

4. Release and remove the sill seal from the front

wing extension panel.

NOTE: Do not carry out further dismantling if
component is removed for access only.

5. Remove 2 securing clips from the front wing

extension.

Refit

1. Fit clips to front wing extension.
2. Fit and secure sill seal to front wing extension.
3. Fit front wing extension and secure with clips.
4. Fit and secure scrivet to front wing extension.
5. Fit and secure wheelarch liner.
