Fuse - transfer gearbox - electronic control unit (ECU)

TRANSFER BOX

41-12

REPAIRS

Fuse - transfer gearbox - electronic
control unit (ECU)

$% 41.20.75

Remove

1. Remove battery carrier.

 +

 CHARGING AND STARTING,

REPAIRS, Carrier - battery.

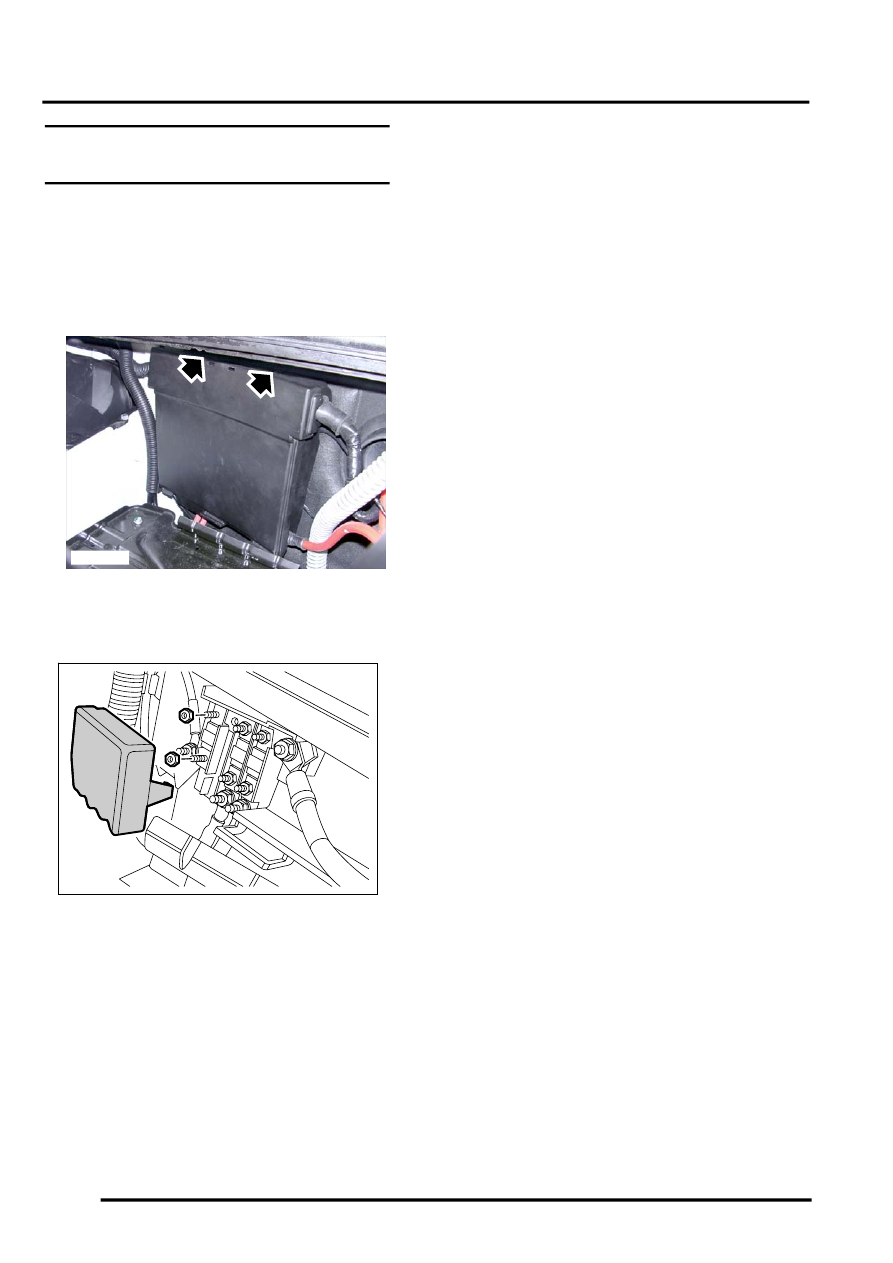

2. Release clips securing ECU cover to bulkhead.

Remove cover.

3. Carefully release 2 clips and remove fuse box

cover.

4. Locate fuse, remove 2 nuts and collect

spacers. Remove and discard fuse.

Refit

1. Ensure fuse box terminals are clean.
2. Position fuse, fit spacers and nuts, tighten to 6

Nm (4.4 lbf.ft).

3. Fit fuse box cover.
4. Fit and secure ECU cover.
5. Fit battery carrier.

 +

 CHARGING AND STARTING,

REPAIRS, Carrier - battery.

M41 7823

M41 7825
