Electronic control unit (ECU) - transfer gearbox

TRANSFER BOX

REPAIRS

41-13

Damper - vibration - Td6

$% 41.20.85

Remove

1. Remove front propeller shaft.

 +

 DRIVESHAFTS, REPAIRS, Propeller

shaft - front.

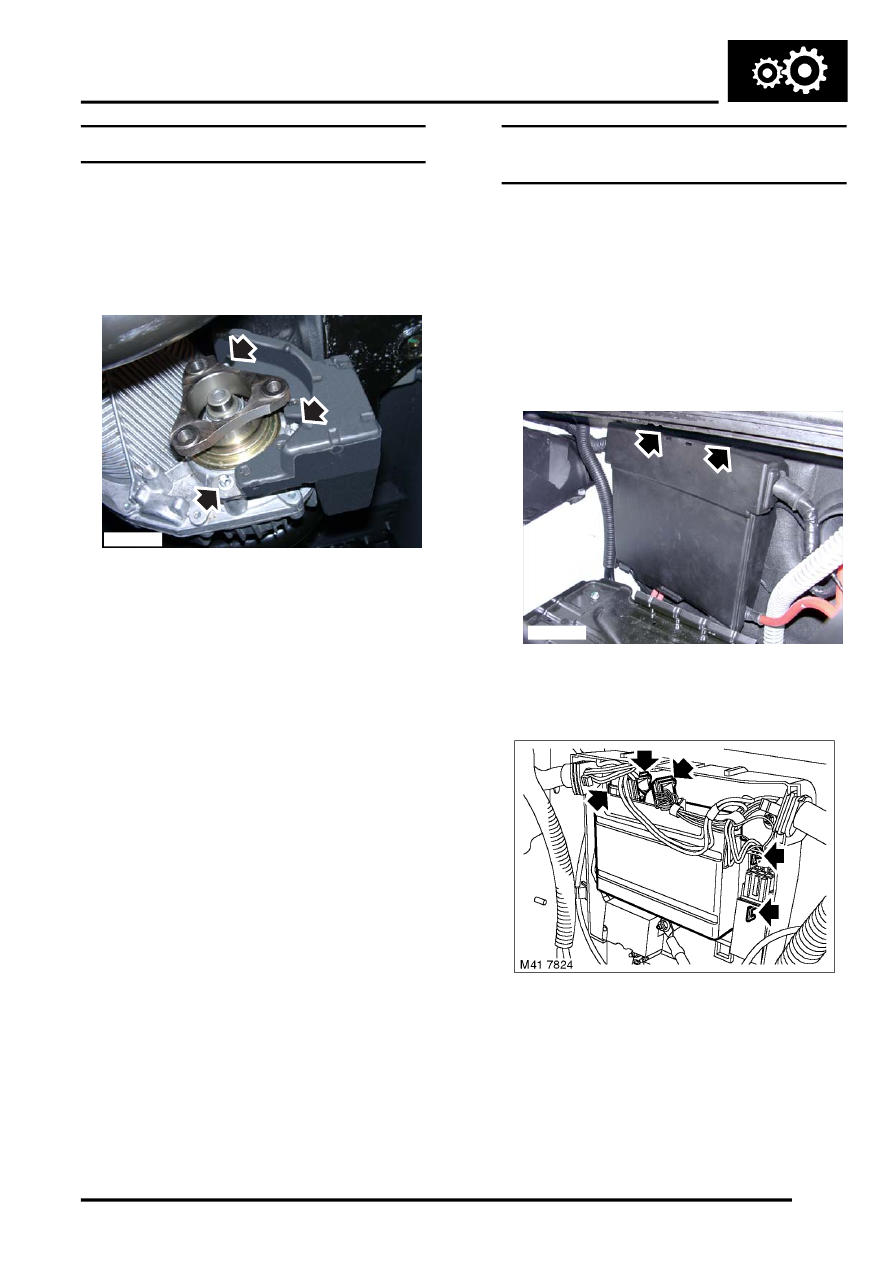

2. Remove 3 Torx screws securing mass damper

and remove damper.

Refit

1. Clean damper and mating face.
2. Fit damper and tighten Torx screws to 23 Nm

(17 lbf.ft).

3. Fit front propeller shaft.

 +

 DRIVESHAFTS, REPAIRS, Propeller

shaft - front.

Electronic control unit (ECU) - transfer
gearbox

$% 41.30.01

If the ECU is to be replaced then Testbook/T4 must
be connected and correct procedures adhered to,
prior to battery disconnection.

Remove

1. Remove battery.

 +

 CHARGING AND STARTING,

REPAIRS, Battery.

2. Release clips securing ECU cover to bulkhead.

Remove cover.

3. Release 2 clips securing ECU to bulkhead

mounting bracket.

4. Release ECU from mounting, disconnect 3

multiplugs and remove ECU.

M41 7832

M41 7823
