Gasket - oil sump (page 2 of 2)

ENGINE - V8

OVERHAUL 12-2-105

Disassembly

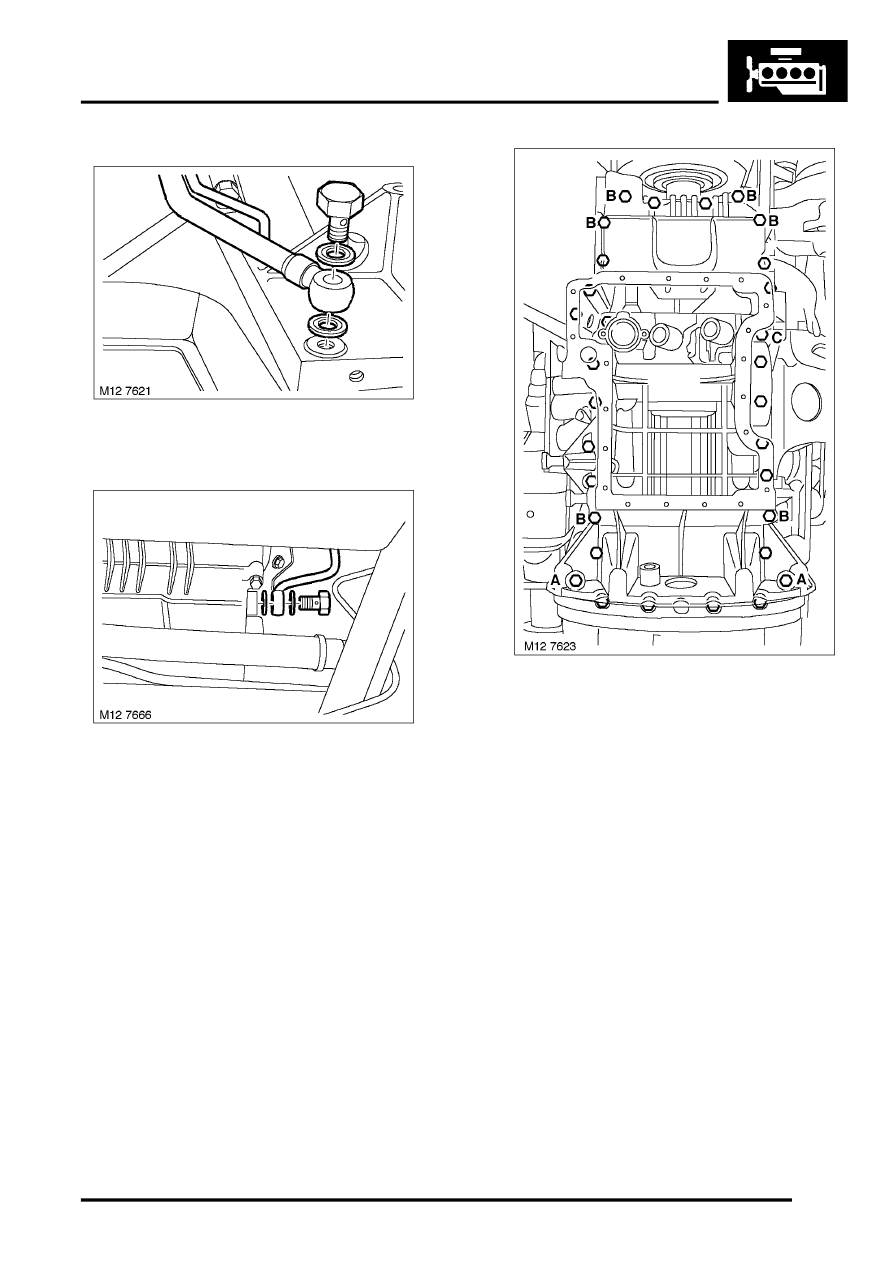

1. Remove banjo bolt securing engine oil return

pipe to oil sump and discard 2 sealing washers.

2. Remove banjo bolt securing engine oil filter

return pipe to oil sump and discard 2 sealing
washers.

3. Remove 31 bolts securing oil sump to engine

cylinder block.

NOTE: Note position of all bolts as they are
different lengths;

l

A=M8 x 60mm

l

B=M6 x 80mm

l

C=M6 x 40mm.

l

All remaining bolts are M6 x 20mm.

4. Remove oil sump and discard gasket.

Inspect

1. Clean oil sump and gasket mating faces.
