Reservoir - brake fluid

BRAKES

70-10

REPAIRS

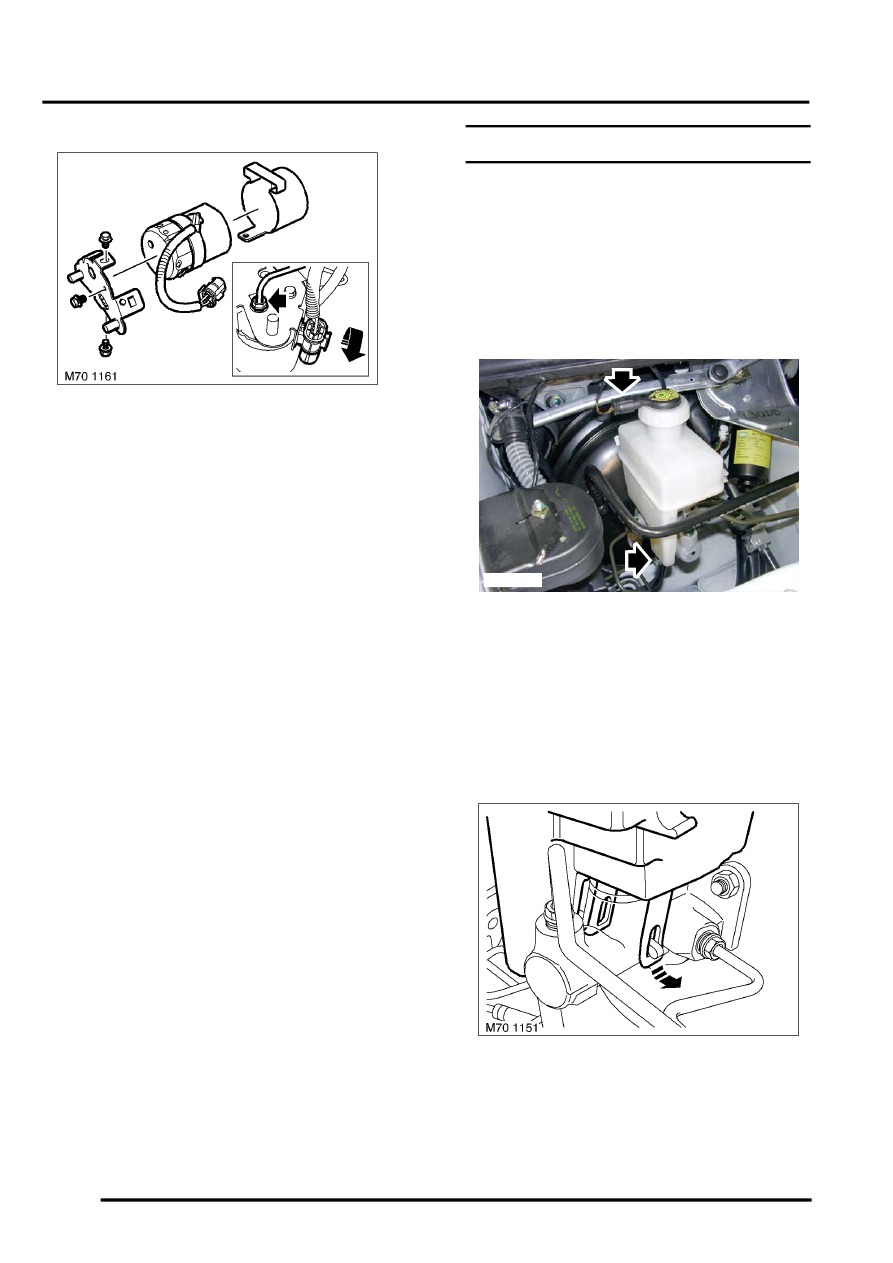

10. Noting its fitted position, remove brake pipe.
11. Release multiplug, remove 3 bolts and remove

mounting bracket and cover.

Refit

1. Fit mounting bracket and cover to pre-charge

pump, fit bolts and tighten to 8 Nm (6 lbf.ft).

2. Secure multiplug.
3. Clean brake pipe unions.
4. Fit brake pipe to pump and lightly tighten union.
5. Connect multiplug.
6. Locate pre-charge pump to mounting rubbers.
7. Fit bolt securing pre-charge pump and tighten

to 8 Nm (6 lbf.ft).

8. Connect pre-charge pump pipe to master

cylinder, tighten both unions to 14 Nm (10
lbf.ft).

9. Connect master cylinder feed to pre-charge

pump and tighten union to 14 Nm (10 lbf.ft).

10. Position alarm sounder to bracket, fit nut and

tighten to 8 Nm (6 lbf.ft).

11. Fit front wheel arch liner.

 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - front wheel arch.

12. Bleed brakes using TestBook/T4.

Reservoir - brake fluid

$% 70.25.31

Remove

1. Position container to collect fluid spillage.

CAUTION: Brake fluid will damage paint
finished surfaces. If spilled, immediately
remove fluid and clean area with water.

2. Disconnect multiplug from low fluid level

sensor.

3. Release harness from clip.
4. Release clip and disconnect pre-charge pump

feed hose.

CAUTION: Plug hose immediately to
prevent fluid loss from pre-charge pump.

5. Release 2 clips and remove reservoir.
6. Remove and discard 2 reservoir seals.

CAUTION: Always fit plugs to open
connections to prevent contamination.

M70 1150
