Valve - thermostatic expansion (TXV) - LHD

AIR CONDITIONING

REPAIRS

82-19

Valve - thermostatic expansion (TXV) -
LHD

$% 82.25.01

Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.


 +

 GENERAL INFORMATION, Electrical

Precautions.

Remove

1. Disconnect battery earth lead.
2. Remove air intake plenum.

 +

 HEATING AND VENTILATION,

REPAIRS, Plenum - air intake.

3. Recover refrigerant from A/C system.

 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.

4. Remove glove box.

 +

 INTERIOR FITTINGS, REPAIRS,

Glove box.

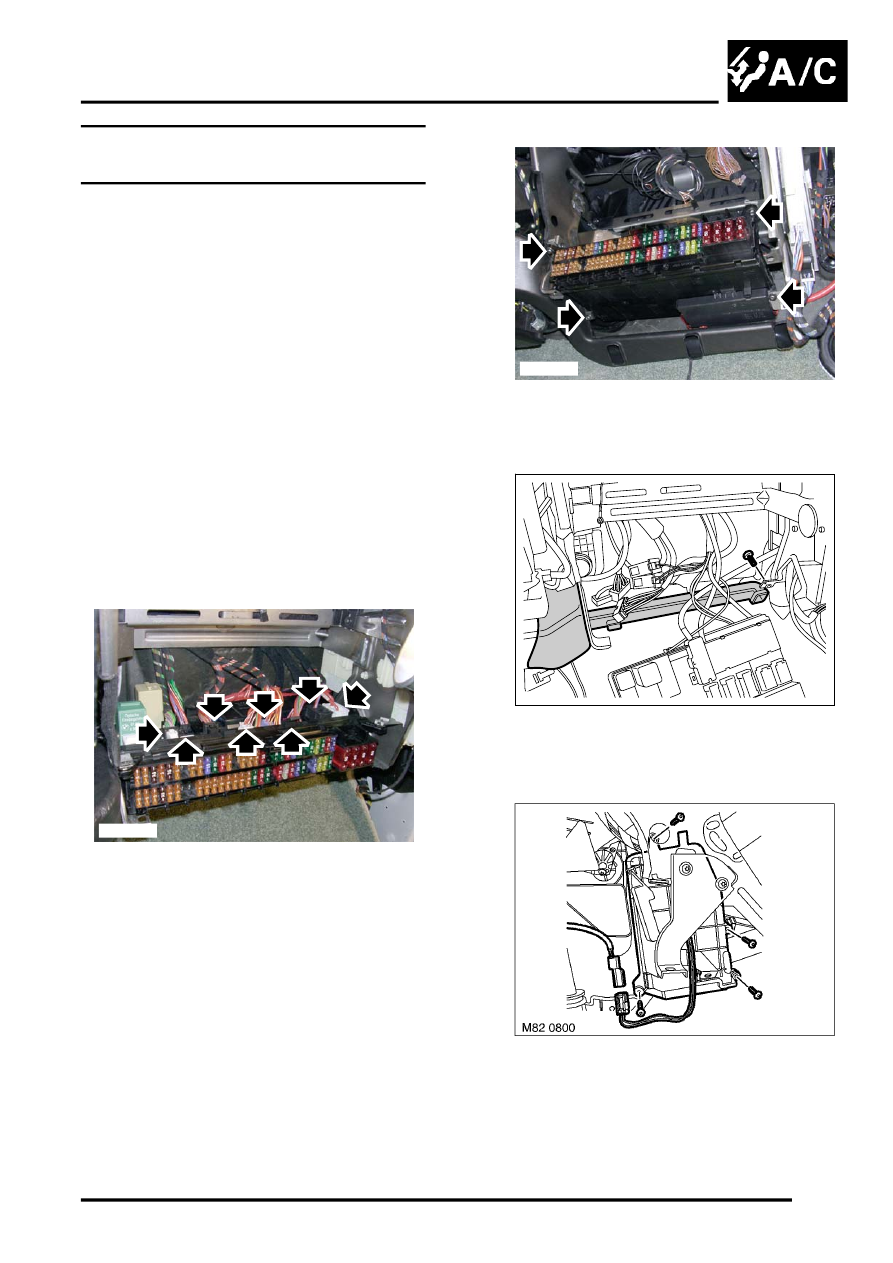

5. Noting fitted position, disconnect 8 multiplugs

from fuse box.

6. Remove 4 Torx screws securing the fuse box,

position the fuse box aside.

7. Remove screw securing footwell heating duct

to carrier. Remove duct.

8. Release evaporator sensor harness from TXV

cover.

9. Remove 4 Torx screws securing TXV cover

and position aside.

M86 5732

M86 5733

M82 0799
