Sensor - brake pedal position

BRAKES

REPAIRS

70-13

Switch - stop light

$% 70.35.42

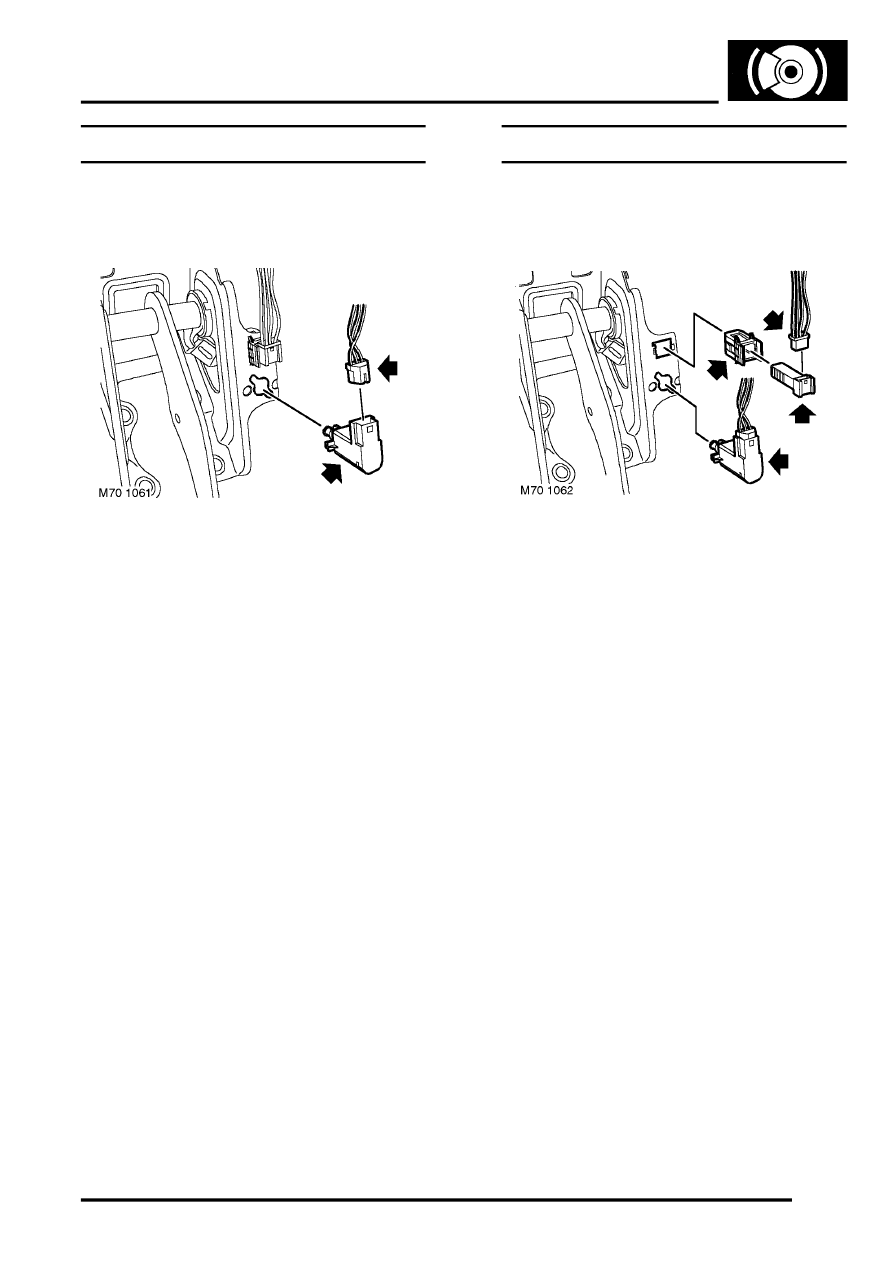

Remove

1. Disconnect brake light switch  multiplug.
2. Release bayonet fitting on brake light switch

and remove switch.

Refit

1. Position switch and secure bayonet fitting.
2. Connect brake light switch multiplug.
3. Depress and hold brake pedal.
4. Reset switch by pulling plunger fully out.
5. Release brake pedal slowly to set switch

adjustment.

Sensor -  brake pedal position

$% 70.35.44

Remove

1. Release bayonet fitting on brake light switch

and remove switch.

2. Release sensor from mounting bracket.
3. Disconnect sensor multiplug and remove

sensor.

4. Remove sensor mounting from bracket.

Refit

1. Position sensor to mounting bracket and

connect multiplug.

2. Position switch and secure bayonet fitting.
3. Hold brake pedal depressed and push sensor

fully into bracket, release pedal slowly to set
sensor position.
