Controls - heater - up to 04MY

HEATING AND VENTILATION

REPAIRS

80-1

HEATING AND VENTILATION

REPAIRS

Controls - heater - up to 04MY

$% 80.10.02

Remove

1. Remove front console.

 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - front - up to 04MY.

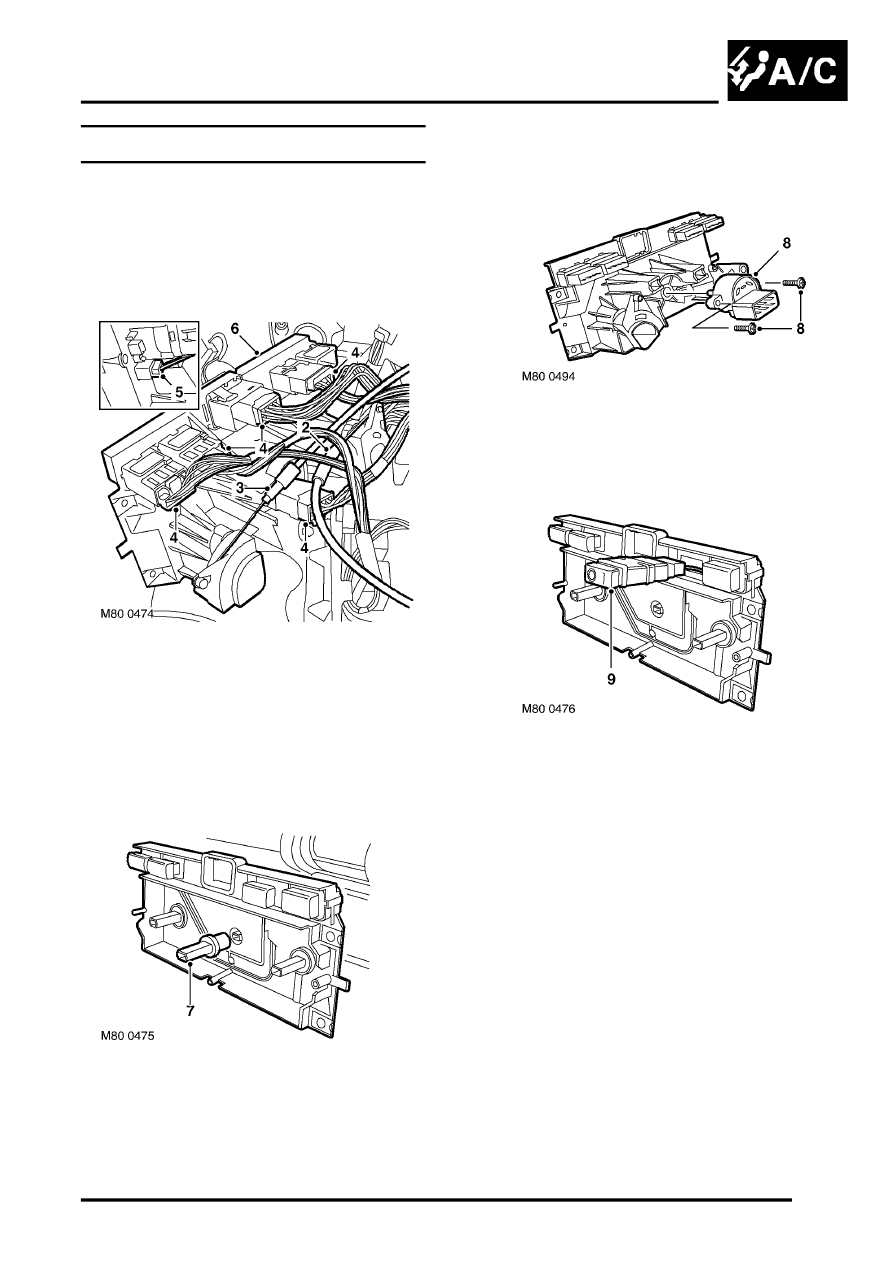

2. Release air blend control cable from control

knob and abutment.

3. Release air distribution control cable from

control knob and abutment.

4. Disconnect multiplugs from all switches.
5. Disconnect illumination multiplug.
6. Remove heater controls.

7. Remove fan speed switch drive shaft.

8. Remove 2 screws securing fan speed switch

and remove switch.

9. Remove 5 switches from heater controls.

Refit

1. Fit switches to heater control housing.
2. Fit fan speed switch and secure with screws.
3. Fit drive shaft to fan speed switch.
4. Fit heater control assembly to vehicle.
5. Connect switch and illumination multiplugs.
6. Connect air blend control cable to control knob

and abutment.

7. Connect air distribution control cable to control

knob and abutment.

8. Fit front console.

 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - front - up to 04MY.
