Relay - power folding mirrors - from 02MY

CONTROL UNITS

REPAIRS

86-3-1

CONTROL UNITS

REPAIRS

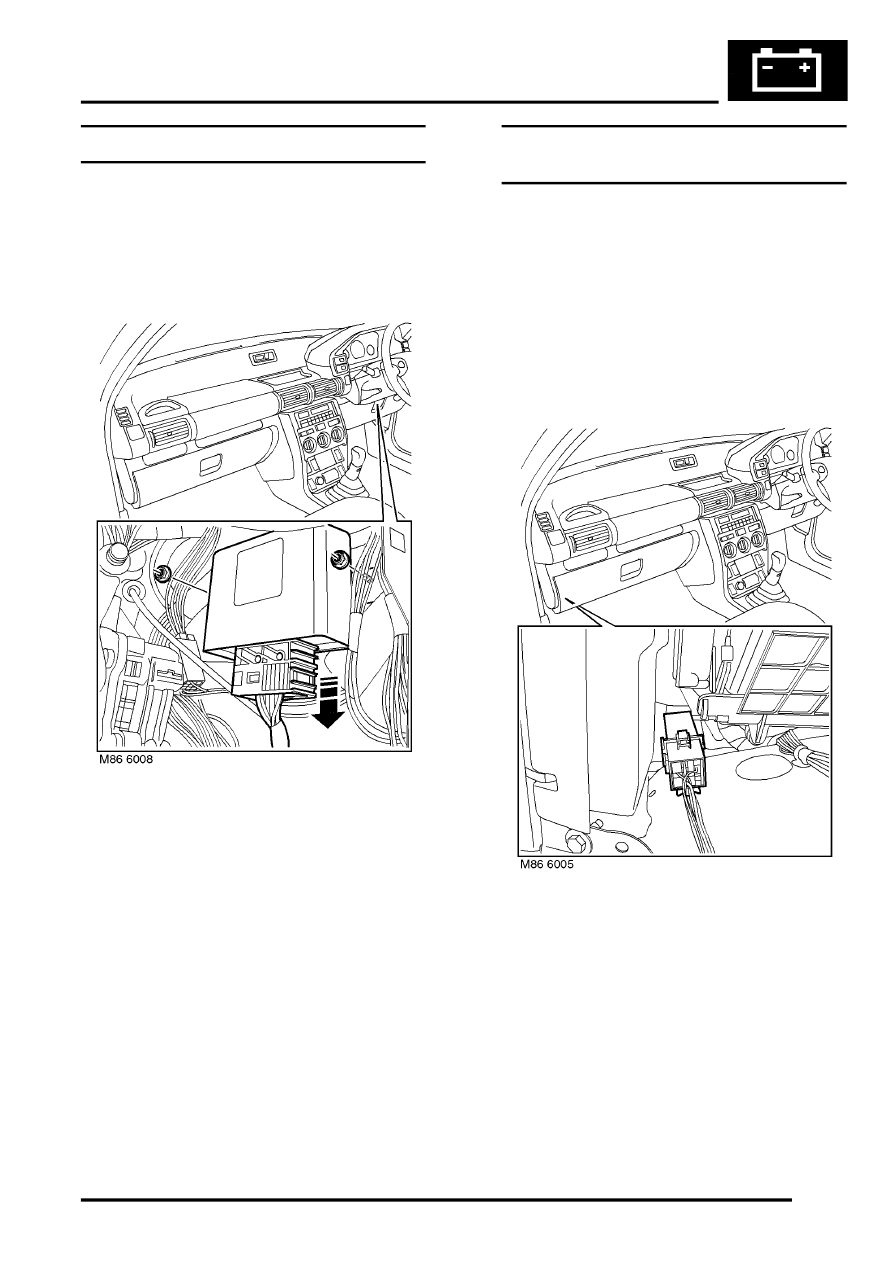

Control unit - window lift

$% 86.25.39

Remove

1. Remove driver's side fuse box.

 +

 HARNESSES, REPAIRS, Fuse box -

passenger compartment.

2. Remove 2 nuts securing window lift control unit

and release unit from studs.

3. Disconnect multiplug from window lift control

unit and remove unit from vehicle.

Refit

1. Connect multiplug to window lift control unit.
2. Position unit and secure with 2 nuts.
3. Fit fuse box.

 +

 HARNESSES, REPAIRS, Fuse box -

passenger compartment.

Relay - power folding mirrors - from
02MY

$% 86.55.13

CAUTION: If the power fold mirrors are operated
consecutively more than three times, then they
will cease to function for a period of one minute.
This is to prevent damage to the power fold
mirror motors.

Remove

1. Remove passenger side tread strip.

2. Release power fold mirror relay from 'A' post.
3. Remove relay from harness block connector.

Refit

1. Fit relay to harness block connector.
2. Fit relay to securing clip.
3. Fit tread strip.
