Drum - rear

BRAKES

REPAIRS

70-3

REPAIRS

Drum - rear

$% 70.12.03

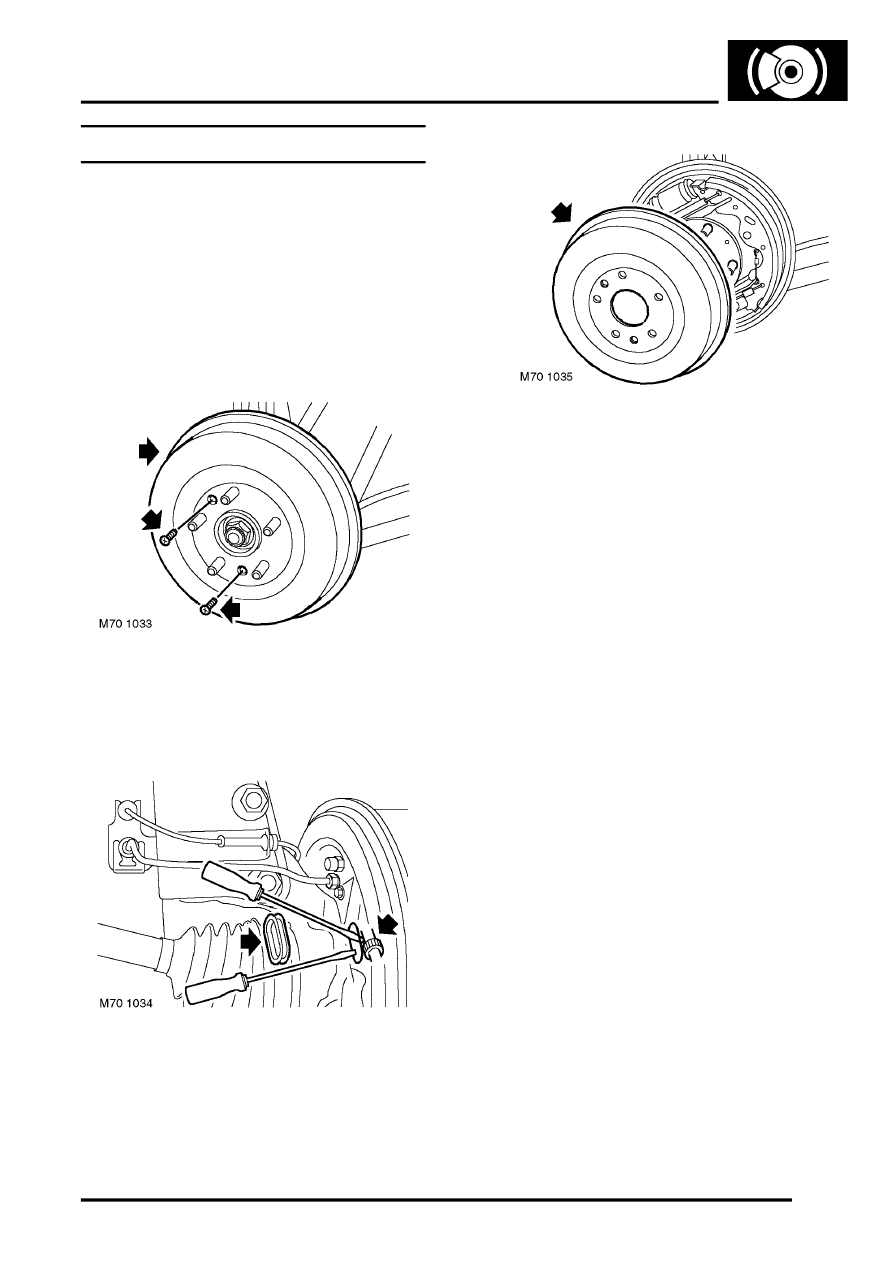

Remove

1. Raise rear of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

2. Remove road wheel.
3. Release handbrake.

4. Remove 2 screws securing brake drum and

remove brake drum.

NOTE: If brake drum cannot be removed,
release brake shoe adjustment as follows:

5. Remove rubber grommet from rear of

backplate.

6. Using 2 flat bladed screwdrivers, release

ratchet and turn the adjuster to increase the
shoe to drum clearance.

7. Remove brake drum.

WARNING: Do not use compressed air to
clean brake components. Dust from friction
materials can be harmful if inhaled.
