Air Inlet Duct

HEATING AND VENTILATION

DESCRIPTION AND OPERATION

80-3

Description

General
The heating and ventilation system controls the temperature and distribution of air supplied to the vehicle interior. Air
is drawn into a heater assembly through a connector hose and an air inlet duct or, on vehicles with air conditioning,
the cooling unit.


 +

 AIR CONDITIONING, DESCRIPTION AND OPERATION, Description.

In the heater assembly, the air can be heated and supplied as required to fascia and floor level outlets. An electrical
variable speed blower, and/or ram effect when the vehicle is in forward motion, forces the air through the system.
Temperature, distribution and blower controls are installed on a panel on the centre console.

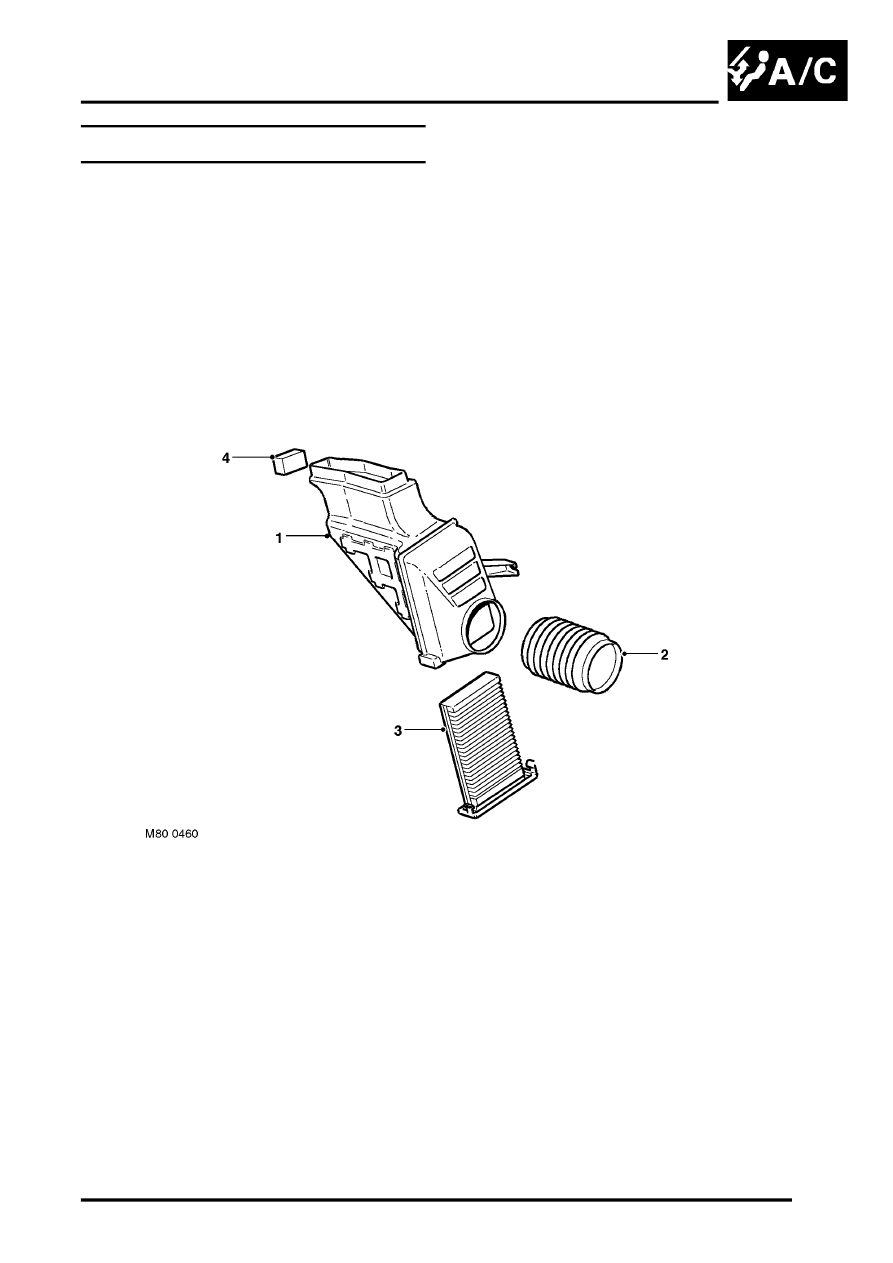

Air Inlet Duct

RHD (non aircon) shown, LHD (non aircon) similar

1 Air inlet duct
2 Connector hose

3 Pollen filter
4 Foam block
