RESTRAINT SYSTEMSSRS Component Layout
RESTRAINT SYSTEMS
DESCRIPTION AND OPERATION
75-1
RESTRAINT SYSTEMS
DESCRIPTION AND OPERATION

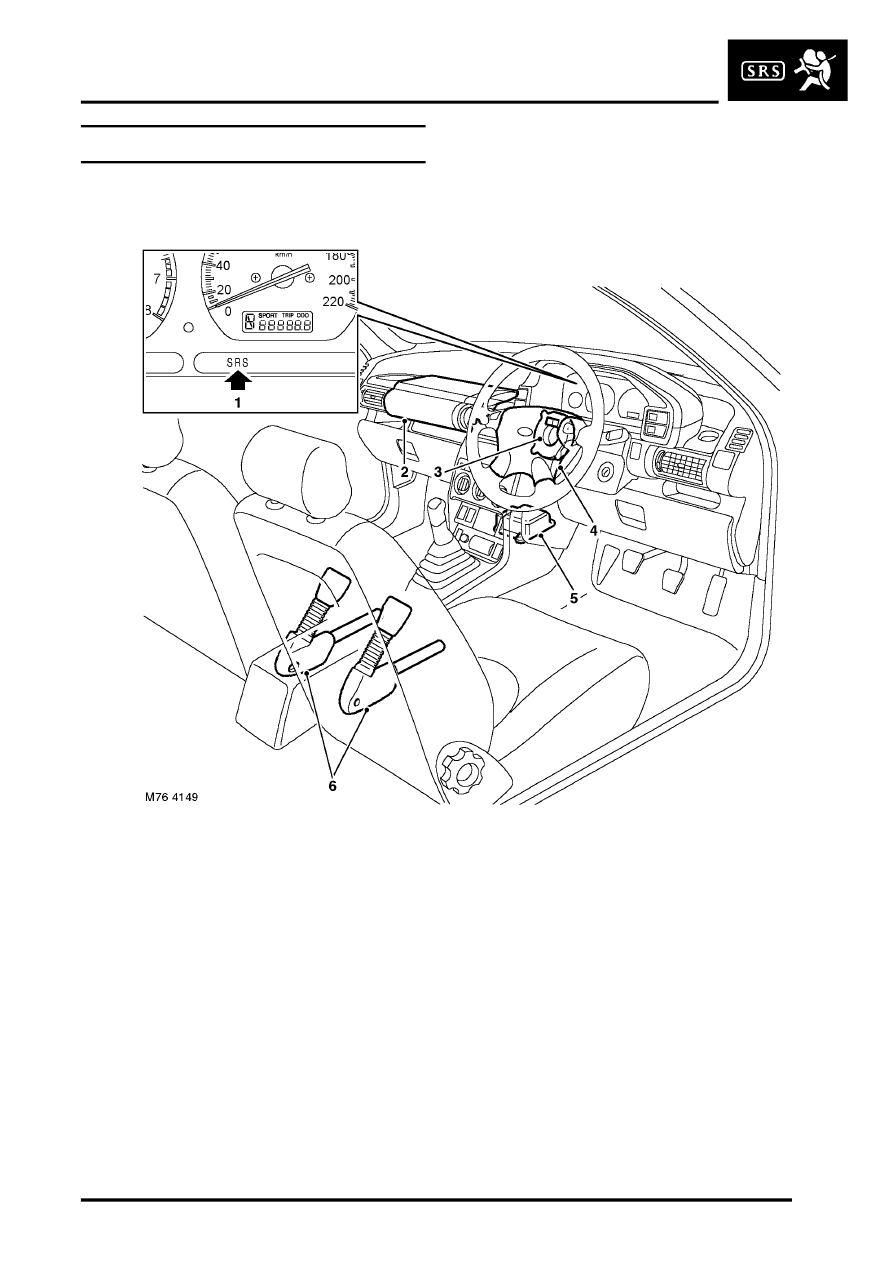

SRS Component Layout
1 SRS warning lamp
2 Passenger's airbag module
3 Rotary coupler
4 Driver's airbag module
5 Airbag DCU (pre 2002 MY version shown)
6 Seat belt pretensioners
