INSTRUMENTS

DESCRIPTION AND OPERATION

88-1

INSTRUMENTS

DESCRIPTION AND OPERATION

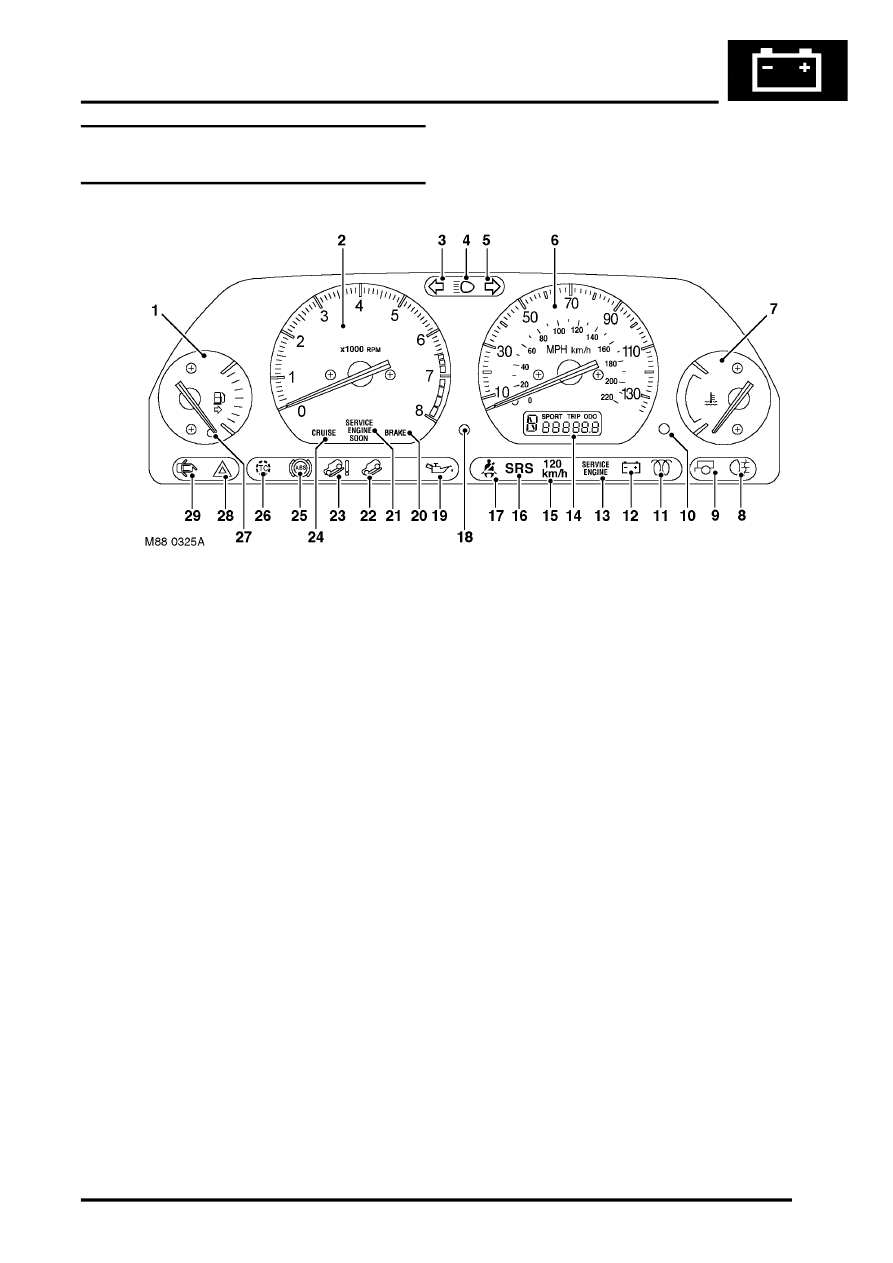

Instrument Pack Component Location -
Front View

1 Fuel level gauge
2 Tachometer
3 LH direction indicator warning lamp
4 Headlamp main beam warning lamp
5 RH direction indicator warning lamp
6 Speedometer (USA version shown)
7 Engine coolant temperature gauge
8 Rear fog lamp warning lamp
9 Trailer direction indicator/hazard failure

warning lamp

10 Trip counter reset button
11 Not used
12 Ignition/No charge warning lamp
13 Engine malfunction warning lamp (Service

Engine)

14 Liquid Crystal Display (LCD)
15 Not used

16 Supplementary Restraint System (SRS)

warning lamp

17 Not used
18 Alarm LED
19 Low oil pressure warning lamp
20 Handbrake and brake system warning lamp
21 Malfunction Indicator Lamp (MIL) (Service

Engine Soon)

22 Hill Descent Control (HDC) active warning lamp
23 HDC failure warning lamp
24 Cruise control active warning lamp (if fitted)
25 Anti-lock Braking System (ABS) warning lamp
26 Traction Control (TC) active warning lamp
27 Low fuel level warning lamp
28 Hazard flasher warning lamp
29 Door open warning lamp
