Heating and Ventilation System Component Layout
- Make
- Land Rover
- Model
- Freelander System Description and Operation
- Section
- Heating and Ventilation System Component Layout
HEATING AND VENTILATIONHeating and Ventilation System Component Layout
HEATING AND VENTILATION
DESCRIPTION AND OPERATION
80-1
HEATING AND VENTILATION
DESCRIPTION AND OPERATION

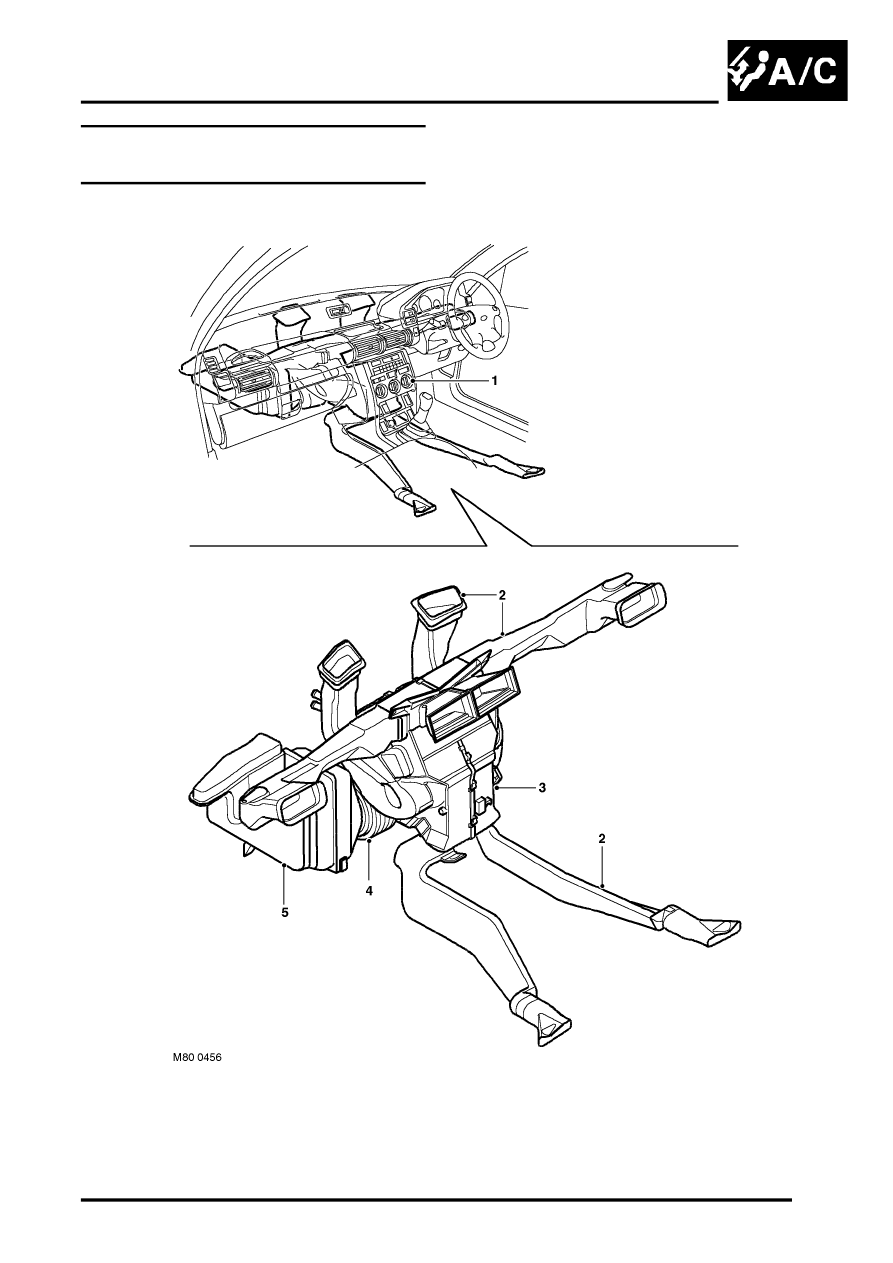

Heating and Ventilation System
Component Layout
RHD shown, LHD similar
1 Control panel
2 Distribution ducts
3 Heater assembly
4 Connector hose
5 Air inlet duct
