Control Unit Locations

CONTROL UNITS

DESCRIPTION AND OPERATION

86-3-1

CONTROL UNITS

DESCRIPTION AND OPERATION

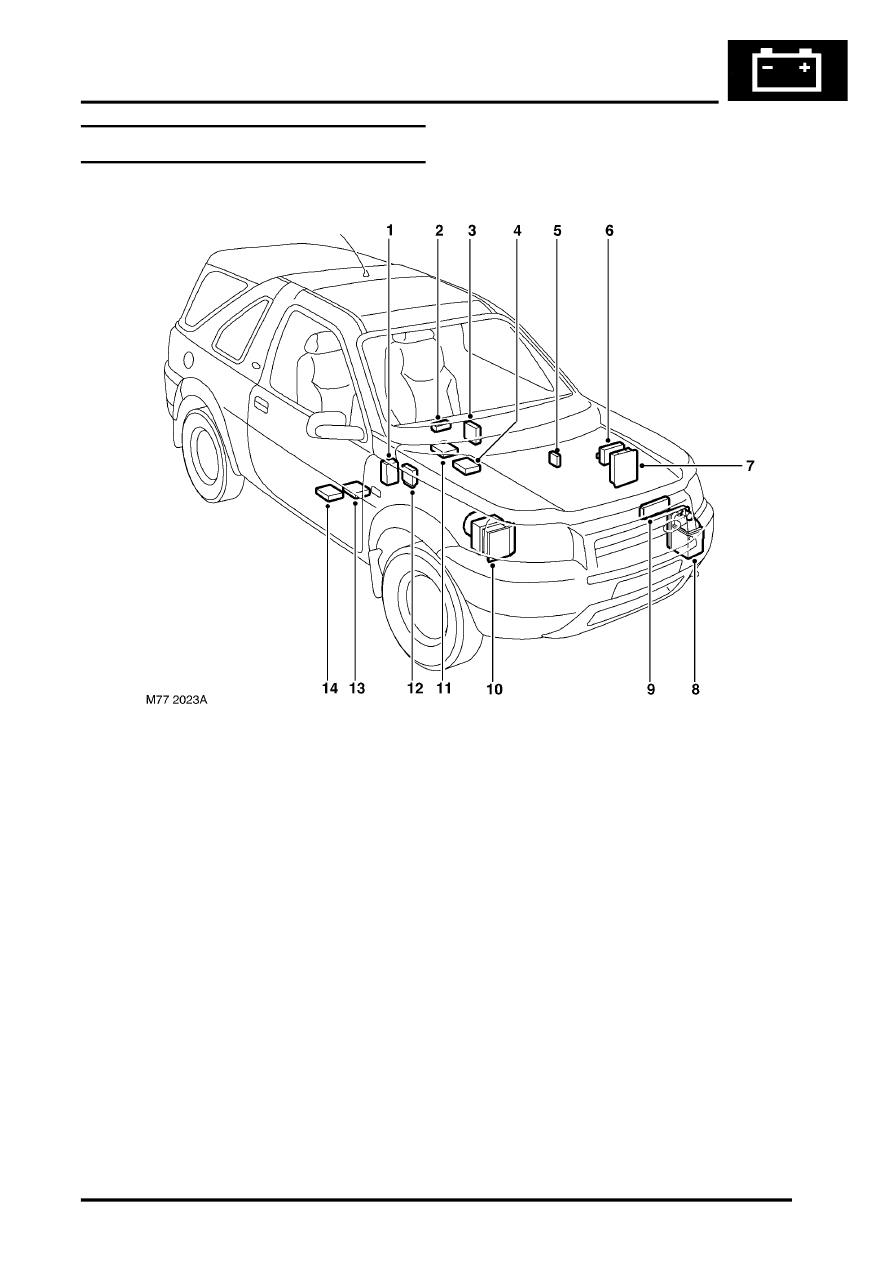

Control Unit Locations

RHD shown, LHD similar

1 CCU
2 RF receiver
3 Immobilisation ECU
4 SRS DCU
5 Folding door mirror relay, from 2002 MY

(where fitted)

6 EAT ECU (automatic gearbox models only)
7 ECM
8 Fuel burning heater ECU (some Td4 models)

9 Cooling fan ECU (all except K1.8 non A/C)

10 ABS modulator
11 Folding door mirror ECU, up to 2002 MY

(where fitted)

12 Window lift ECU
13 Cruise control interface ECU (where fitted)
14 Cruise control ECU (where fitted)
