Fuel Delivery System Component Layout
- Make
- Land Rover
- Model
- Freelander System Description and Operation
- Section
- Fuel Delivery System Component Layout
FUEL DELIVERY SYSTEM - K SERIES KV6Fuel Delivery System Component Layout
FUEL DELIVERY SYSTEM - K SERIES KV6
DESCRIPTION AND OPERATION
19-3-1
FUEL DELIVERY SYSTEM - K SERIES KV6
DESCRIPTION AND OPERATION

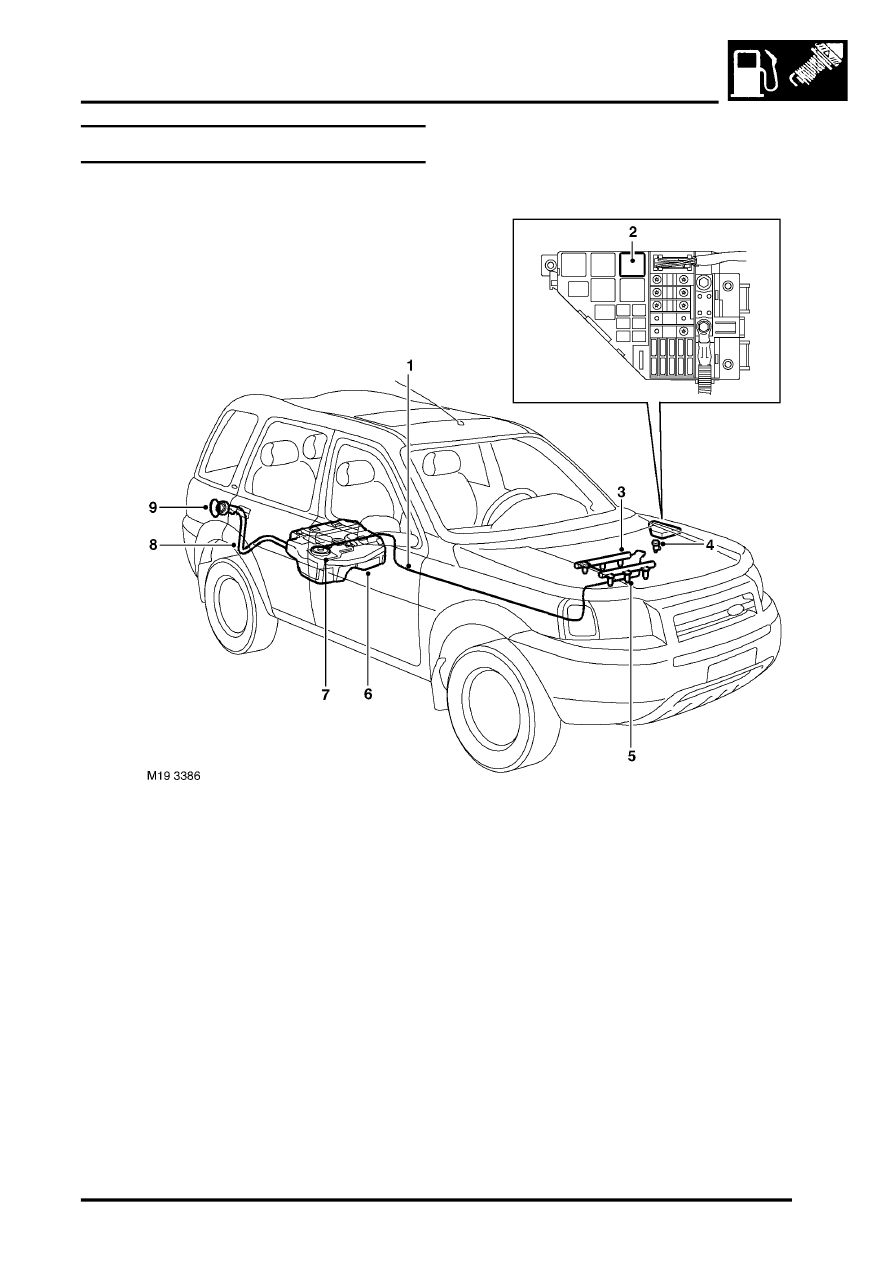

Fuel Delivery System Component Layout
1 Fuel feed pipe
2 Fuel pump relay
3 Fuel rail
4 Inertia fuel cut-off switch
5 Fuel injector
6 Fuel tank
7 Fuel pump
8 Filler tube
9 Fuel filler cap
