Land Rover Freelander System Description and Operation37 · BRAKES
37 · Brakes

Brake System Layout (KV6)

Make
Land Rover
Model
Freelander System Description and Operation
Section
Brake System Layout (KV6)
BRAKESBrake System Layout (KV6)
background image

BRAKES

DESCRIPTION AND OPERATION

70-1

BRAKES

DESCRIPTION AND OPERATION

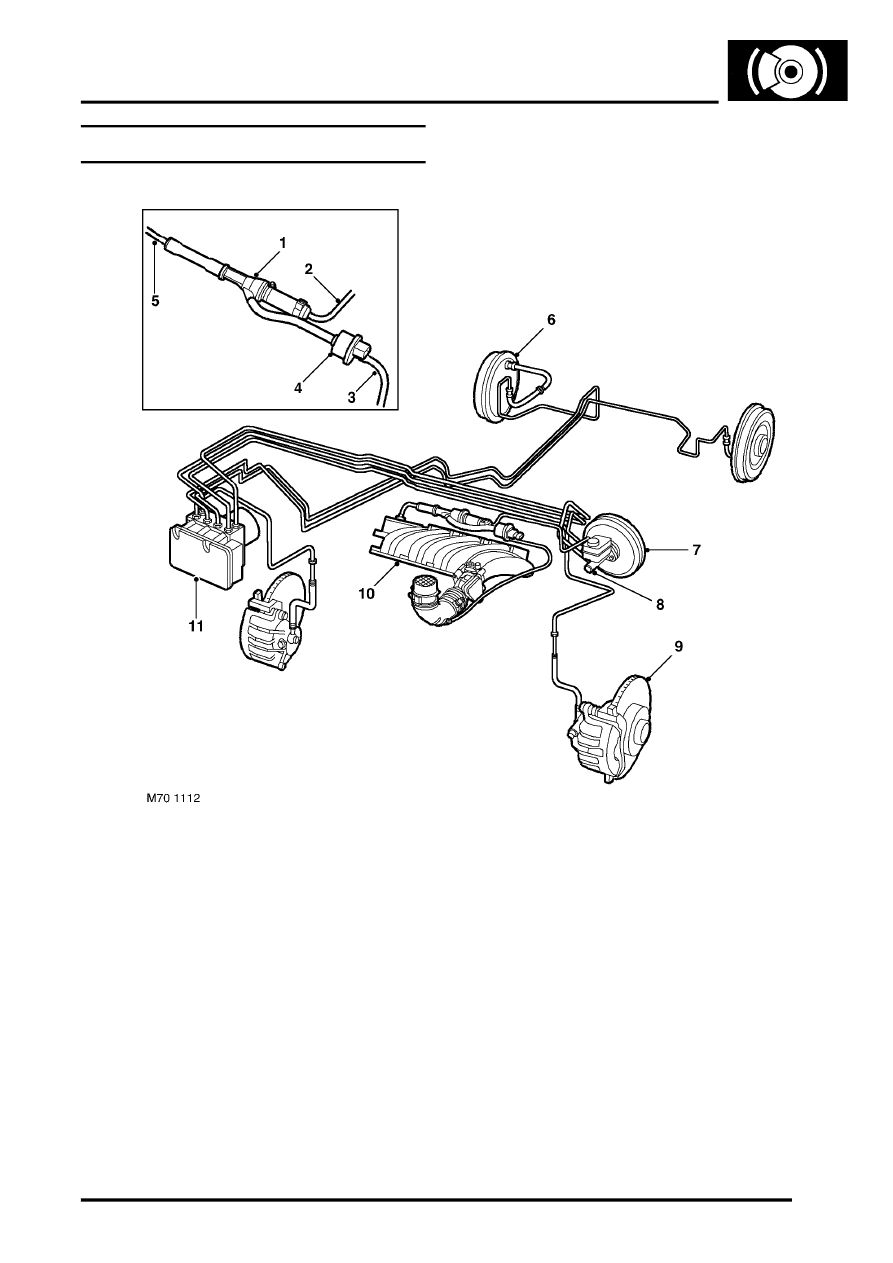

Brake System Layout (KV6)

LHD shown, RHD similar

NOTE: The vacuum enhancer solenoid valve (item 4) is applicable to all models except NAS KV6 from 2003 model

year onwards.

1 Vacuum enhancer venturi valve
2 Vacuum pipe from brake servo
3 Air feed pipe from intake duct
4 Vacuum enhancer solenoid valve
5 Vacuum pipe from inlet manifold
6 Rear brake

7 Brake servo assembly
8 Master cylinder assembly
9 Front brake

10 Engine inlet manifold
11 ABS modulator/ECU
