D097 Short circuit coupling

Make: Lancia
Model: Thesis Factory Service Manual
Year: 2002–2009
Section: Intermediate couplings › D097 Short circuit coupling

‹ Prev D094 Adaptive Cruise Control node bridge coupling Next › D098 Front/headlamp washer coupling

Connectors and pin-outsD097 Short circuit coupling

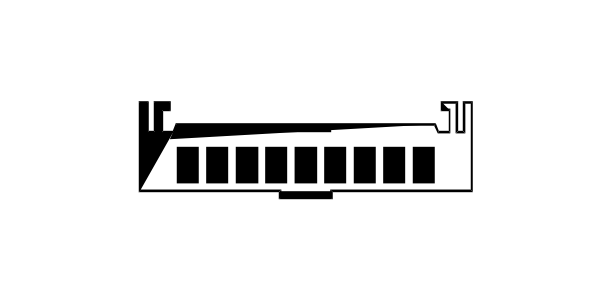

D097 Short circuit coupling

D097A – Front

2.4 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2	100,5	BG		B001A	18
3	100,5	M		D004	10
4	100,5	M		H001A	3
5	100,5	B		B001A	14
6	100,5	MB		M089	4
7	0,5	MN		M089	8
8	0,5	BV		B001A	17

2.4 JTD 10V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2	100,5	BG		B001A	18
3	100,5	M		D004	10
4	100,5	M		H001A	3
5	100,5	B		B001A	14
6	100,5	MB		M089	4
7	0,5	MN		M089	8
8	0,5	BV		B001A	17

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2	100,5	BG		B001A	18
3	100,5	M		D004	F
4	100,5	M		H001A	3
5	100,5	B		B001A	14
6	100,5	MB		M089	4
7	0,5	MN		M089	8
8	0,5	BV		B001A	17

2.0 TB

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2	100,5	BG		B001A	18
3	100,5	M		D004	10
4	100,5	M		H001A	3
5	100,5	B		B001A	14
6	100,5	MB		M089	4
7	0,5	MN		M089	8
8	0,5	BV		B001A	17

D097B – Front

3.2 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin

3.0 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	N		C010A	13
2	0,5	N		L050A	2
3	0,5	BM		M089	8
4	100,5	M		D004	10
5	100,5	BS		B001A	18
7	100,5	MN		H001A	3
8	100,5	B		B001A	14
9	100,5	MB		M089	4

2.4 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	N		C010A	13
2	0,5	N		L050A	2
3	0,5	BM		M089	8
4	100,5	M		D004	10
5	100,5	BS		B001A	18
7	100,5	MN		H001A	3
8	100,5	B		B001A	14
9	100,5	MB		M089	4

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	N		C010A	13
2	0,5	N		L050A	2
3	0,5	BM		M089	8
4	100,5	M		D004	F
5	100,5	BS		B001A	18
7	100,5	MN		H001A	3
8	100,5	B		B001A	14
9	100,5	MB		M089	4

D097C – Front

3.2 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin

2.4 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	BV		B002A	16
2	0,5	BG		M010A	27
5	0,5	BV		M046	30
6	0,5	BR		M088	4
7	0,5	BR		D001	A2
8	0,5	BR		M073	5

2.4 JTD 10V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	BV		B002A	16
2	0,5	BV		M010A	59
5	0,5	BV		M046	30
6	0,5	BR		M088	4
7	0,5	BR		D001	A2
8	0,5	BR		M073	5

3.0 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	BV		B002A	16
2	0,5	BG		M010A	27
3	0,5	BV		M055A	10
5	0,5	BV		M046	30
6	0,5	BR		M088	4
7	0,5	BR		D001	A2
8	0,5	BR		M073	5

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	BV		B002A	16
2	0,5	BV		M010A	17
5	0,5	BV		M046	30
6	0,5	BR		M088	4
7	0,5	BR		D001	A2
8	0,5	BR		M073	5

2.0 TB

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	BV		B002A	16
2	0,5	BG		M010A	27
5	0,5	BV		M046	30
6	0,5	BR		M088	4
7	0,5	BR		D001	A2
8	0,5	BR		M073	5

2.4 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	BV		B002A	16
2	0,5	BG		M010A	27
3	0,5	BV		M055A	10
5	0,5	BV		M046	30
6	0,5	BR		M088	4
7	0,5	BR		D001	A2
8	0,5	BR		M073	5

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	BV		B002A	16
2	0,5	BV		M010A	17
3	0,5	BV		M055A	10
5	0,5	BV		M046	30
6	0,5	BR		M088	4
7	0,5	BR		D001	A2
8	0,5	BR		M073	5

D097D – Front

3.2 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin

2.4 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	1	L		B002A	11
2	0,75	LS		M091	1
4	0,5	L		M051	23
6	0,5	L		M092	5
7	0,35	SR		M079	10
8	0,35	SR		M001B	25
9	0,35	SR		P090	2

2.4 JTD 10V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	1	L		B002A	11
2	0,75	LS		M091	1
4	0,5	L		M051	23
6	0,5	L		M092	5
7	0,35	SR		M079	10
8	0,35	SR		M001B	25
9	0,35	SR		P090	2

3.0 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	1	L		B002A	11
2	0,75	LS		M091	1
4	0,5	L		M051	23
5	1	L		M052	4
6	0,5	L		M092	5
7	0,35	SR		M079	10
8	0,35	SR		M001B	25
9	0,35	SR		P090	2

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	1	L		B002A	11
2	0,75	LS		M091	1
4	0,5	L		M051	23
6	0,5	L		M092	5
7	0,35	SR		M079	10
8	0,35	SR		M001B	25
9	0,35	SR		P090	2

2.0 TB

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	1	L		B002A	11
2	0,75	LS		M091	1
4	0,5	L		M051	23
6	0,5	L		M092	5
7	0,35	SR		M079	10
8	0,35	SR		M001B	25
9	0,35	SR		P090	2

2.4 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	1	LN		B002A	11
2	0,75	LS		M091	1
4	0,5	L		M051	23
5	1	L		M052	4
6	0,5	L		M092	5
7	0,35	SR		M079	10
8	0,35	SR		M001B	25
9	0,35	SR		P090	2

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	1	LN		B002A	11
2	0,75	LS		M091	1
4	0,5	L		M051	23
5	1	L		M052	4
6	0,5	L		M092	5
7	0,35	SR		M079	10
8	0,35	SR		M001B	25
9	0,35	SR		P090	2

D097E – Front

3.2 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin

3.0 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
7	1	RG		M052	3
8	0,5	RG		M092	1
9	0,5	RG		D006	A6

2.4 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
7	1	RG		M052	3
8	0,5	RG		M092	1
9	0,5	RG		D006	A6

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
7	1	RG		M052	3
8	0,5	RG		M092	1
9	0,5	RG		D006	A6

D097F – Front

3.2 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin

3.0 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	BG		M001B	35
2	0,5	BR		M087	11
3	0,5	BR		M052	5
4	0,5	BR		M075A	2
7	0,5	BR		M010A	53
8	0,5	BR		M001A	20
9	0,5	BR		M055A	11

2.4 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	BG		M001B	35
2	0,5	BR		M087	11
3	0,5	BR		M052	5
4	0,5	BR		M075A	2
7	0,5	BR		M001A	20
8	0,5	BR		M010A	53
9	0,5	BR		M055A	11

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	BG		M001B	35
2	0,5	BR		M087	11
3	0,5	BR		M052	5
4	0,5	BR		M075A	2
7	0,5	BR		M001A	20
8	0,5	BR		M010A	25
9	0,5	BR		M055A	11

D097G – Front

3.2 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin

2.4 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2	0,5	G		H036	3
5	0,35	GH		D006	B7
6	0,35	MV		M001B	28
7	0,35	MV		M073	4
8	0,5	M		M046	31

2.4 JTD 10V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2	0,5	G		H036	3
5	0,35	GH		D006	B7
6	0,35	MV		M001B	28
7	0,35	MV		M073	4
8	0,5	M		M046	31

3.0 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2	0,5	G		H036	3
4	0,35	GR		M053	3
5	0,35	GH		D006	B7
6	0,35	MV		M001B	28
7	0,35	MV		M073	4
8	0,5	M		M046	31

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2	0,5	G		H036	3
5	0,35	GH		D006	B7
6	0,35	MV		M001B	28
7	0,35	MV		M073	4
8	0,5	M		M046	31

2.0 TB

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2	0,5	G		H036	3
5	0,35	GH		D006	B7
6	0,35	MV		M001B	28
7	0,35	MV		M073	4
8	0,5	M		M046	31

2.4 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2	0,5	G		H036	3
4	0,35	GR		M053	3
5	0,35	GH		D006	B7
6	0,35	MV		M001B	28
7	0,35	MV		M073	4
8	0,5	M		M046	31

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2	0,5	G		H036	3
4	0,35	GR		M053	3
5	0,35	GH		D006	B7
6	0,35	MV		M001B	28
7	0,35	MV		M073	4
8	0,5	M		M046	31

D097H – Dashboard

2.4 20V

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	100,5	N		C022A	4
2	100,5	N		P050	3
3	100,5	N		P051	3
6	0,5	GV		P051	1
7	0,35	GV		G035	1
8	0,5	GV		P050	1
9	0,35	GV		M001D	18

2.0 TB

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	100,5	N		C022A	4
2	100,5	N		P050	3
3	100,5	N		P051	3
7	0,35	GV		G035	1
8	0,5	GV		P050	1
9	0,35	GV		M001D	18
6	0,5	GV		P051	1

2.4 JTD 10V

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	100,5	N		C022A	4
2	100,5	N		P050	3
3	100,5	N		P051	3
6	0,5	GV		P051	1
7	0,35	GV		G035	1
8	0,5	GV		P050	1
9	0,35	GV		M001D	18

3.0 V6

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	100,5	N		C022A	4
2	100,5	N		P050	3
3	100,5	N		P051	3
6	0,5	GV		P051	1
7	0,35	GV		G035	1
8	0,5	GV		P050	1
9	0,35	GV		M001D	18

D097I – Dashboard

2.4 20V

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	LS		H092C	1
2	0,75	LS		B002H	4
3	0,5	LR		D001	A5
4	1	LV		D001	A4
6	0,35	LS		D047	5
7	0,5	LS		D021	3
9	0,35	LS		H093	7

2.0 TB

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	LS		H092C	1
2	0,75	LS		B002H	4
3	0,5	LR		D001	A5
4	1	LV		D001	A4
6	0,35	LS		D047	5
7	0,5	LS		D021	3
9	0,35	LS		H093	7

2.4 JTD 10V

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	LS		H092C	1
2	0,75	LS		B002H	4
3	0,5	LR		D001	A5
4	1	LV		D001	A4
6	0,35	LS		D047	5
7	0,5	LS		D021	3
9	0,35	LS		H093	7

3.0 V6

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	LS		H092C	1
2	0,75	LS		B002H	4
3	0,5	LR		D001	A5
4	1	LV		D001	A4
6	0,35	LS		D047	5
7	0,5	LS		D021	3
9	0,35	LS		H093	7

D097J – Dashboard

2.4 20V

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	SR		N028A	3
2	0,35	SR		N029A	1
3	0,35	SR		D020	41
4	0,35	sz		N028A	1
5	0,35	SZ		N029A	3
6	0,35	SZ		D020	42

2.0 TB

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	SR		N028A	3
2	0,35	SR		N029A	1
3	0,35	SR		D020	41
4	0,35	sz		N028A	1
5	0,35	SZ		N029A	3
6	0,35	SZ		D020	42

2.4 JTD 10V

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	SR		N028A	3
2	0,35	SR		N029A	1
3	0,35	SR		D020	41
4	0,35	sz		N028A	1
5	0,35	SZ		N029A	3
6	0,35	SZ		D020	42

3.0 V6

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	SR		N028A	3
2	0,35	SR		N029A	1
3	0,35	SR		D020	41
4	0,35	sz		N028A	1
5	0,35	SZ		N029A	3
6	0,35	SZ		D020	42

D097K – Dashboard

2.4 20V

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	BS		M001D	25
2	0,35	BS		D021	4
3	0,35	BS		D047	4
4	0,35	NS		M001D	24
5	0,35	NS		D021	5
6	0,35	NS		D047	3

2.0 TB

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	BS		M001D	25
2	0,35	BS		D021	4
3	0,35	BS		D047	4
4	0,35	NS		M001D	24
5	0,35	NS		D021	5
6	0,35	NS		D047	3

2.4 JTD 10V

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	BS		M001D	25
2	0,35	BS		D021	4
3	0,35	BS		D047	4
4	0,35	NS		M001D	24
5	0,35	NS		D021	5
6	0,35	NS		D047	3

3.0 V6

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	BS		M001D	25
2	0,35	BS		D021	4
3	0,35	BS		D047	4
4	0,35	NS		M001D	24
5	0,35	NS		D021	5
6	0,35	NS		D047	3

D097L – Rear

2.4 20V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	RN		B045	12
2	0,5	R		D071A	M
3	0,5	R		D070B	M
6	0,5	R		D020	49
7	0,35	SV		M062	4
8	0,35	SV		M001F	7

2.0 TB

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	RN		B045	12
2	0,5	R		D071A	M
3	0,5	R		D070B	M
6	0,5	R		D020	49
7	0,35	SV		M062	4
8	0,35	SV		M001F	7

2.4 JTD 10V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	RN		B045	12
2	0,5	R		D071A	M
3	0,5	R		D070B	M
6	0,5	R		D020	49
7	0,35	SV		M062	4
8	0,35	SV		M001F	7

3.0 V6

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,5	RN		B045	12
2	0,5	R		D071A	M
3	0,5	R		D070B	M
6	0,5	R		D020	49
7	0,35	SV		M062	4
8	0,35	SV		M001F	7

D097M – Rear

2.4 20V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	BS		M062	7
2	0,35	BS		B002D	10
3	0,35	BS		D031	13
4	0,35	BS		D030	12
5	0,35	BS		M063F	40
6	0,35	BS		D070B	E
7	0,35	BS		M084C	7
8	0,35	BS		M064	9
9	0,35	BS		D071A	E

2.0 TB

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	BS		M062	7
2	0,35	BS		B002D	10
3	0,35	BS		D031	13
4	0,35	BS		D030	12
5	0,35	BS		M063F	40
6	0,35	BS		D070B	E
7	0,35	BS		M084C	7
8	0,35	BS		M064	9
9	0,35	BS		D071A	E

2.4 JTD 10V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	BS		M062	7
2	0,35	BS		B002D	10
3	0,35	BS		D031	13
4	0,35	BS		D030	12
5	0,35	BS		M063F	40
6	0,35	BS		D070B	E
7	0,35	BS		M084C	7
8	0,35	BS		M064	9
9	0,35	BS		D071A	E

3.0 V6

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	BS		M062	7
2	0,35	BS		B002D	10
3	0,35	BS		D031	13
4	0,35	BS		D030	12
5	0,35	BS		M063F	40
6	0,35	BS		D070B	E
7	0,35	BS		M084C	7
8	0,35	BS		M064	9
9	0,35	BS		D071A	E

D097N – Rear

2.4 20V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
7	0,35	NS		M084C	14
8	0,35	NS		M064	30
9	0,35	NS		D071A	J
1	0,35	NS		M062	16
2	0,35	NS		B002D	28
3	0,35	NS		D031	12
4	0,35	NS		D030	13
5	0,35	NS		M063F	30
6	0,35	NS		D070B	J

2.0 TB

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
7	0,35	NS		M084C	14
8	0,35	NS		M064	30
9	0,35	NS		D071A	J
1	0,35	NS		M062	16
2	0,35	NS		B002D	28
3	0,35	NS		D031	12
4	0,35	NS		D030	13
5	0,35	NS		M063F	30
6	0,35	NS		D070B	J

2.4 JTD 10V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
7	0,35	NS		M084C	14
8	0,35	NS		M064	30
9	0,35	NS		D071A	J
6	0,35	NS		D070B	J
1	0,35	NS		M062	16
2	0,35	NS		B002D	28
3	0,35	NS		D031	12
4	0,35	NS		D030	13
5	0,35	NS		M063F	30

3.0 V6

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
6	0,35	NS		D070B	J
7	0,35	NS		M084C	14
8	0,35	NS		M064	30
9	0,35	NS		D071A	J
1	0,35	NS		M062	16
2	0,35	NS		B002D	28
3	0,35	NS		D031	12
4	0,35	NS		D030	13
5	0,35	NS		M063F	30

D097O – Rear

2.4 20V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	AG		M001G	40
2	0,35	GZ		D035	21
3	0,5	GN		P052	1
4	0,35	GZ		D036	21
5	0,35	AG		D032	E
6	0,35	BL		D037	19
7	0,35	SZ		D030	18
8	0,35	SZ		D031	18
9	0,35	SV		D020	50

2.0 TB

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	AG		M001G	40
2	0,35	GZ		D035	21
3	0,5	GN		P052	1
4	0,35	GZ		D036	21
5	0,35	AG		D032	E
6	0,35	BL		D037	19
7	0,35	SZ		D030	18
8	0,35	SZ		D031	18
9	0,35	SV		D020	50

2.4 JTD 10V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	AG		M001G	40
2	0,35	GZ		D035	21
3	0,5	GN		P052	1
4	0,35	GZ		D036	21
5	0,35	AG		D032	E
6	0,35	BL		D037	19
7	0,35	SZ		D030	18
8	0,35	SZ		D031	18
9	0,35	SV		D020	50

3.0 V6

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	AG		M001G	40
2	0,35	GZ		D035	21
3	0,5	GN		P052	1
4	0,35	GZ		D036	21
5	0,35	AG		D032	E
6	0,35	BL		D037	19
7	0,35	SZ		D030	18
8	0,35	SZ		D031	18
9	0,35	SV		D020	50

D097P – Rear

2.4 20V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	1	RG		B045	5
2	0,5	RV		D030	8
3	0,5	RG		D030	10
4	0,5	R		G020	1
6	0,5	R		G040	1
7	0,5	RG		D031	10
8	0,5	RV		D031	8

2.0 TB

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	1	RG		B045	5
2	0,5	RV		D030	8
3	0,5	RG		D030	10
4	0,5	R		G020	1
6	0,5	R		G040	1
7	0,5	RG		D031	10
8	0,5	RV		D031	8

2.4 JTD 10V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	1	RG		B045	5
2	0,5	RV		D030	8
3	0,5	RG		D030	10
4	0,5	R		G020	1
6	0,5	R		G040	1
7	0,5	RG		D031	10
8	0,5	RV		D031	8

3.0 V6

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	1	RG		B045	5
2	0,5	RV		D030	8
3	0,5	RG		D030	10
4	0,5	R		G020	1
6	0,5	R		G040	1
7	0,5	RG		D031	10
8	0,5	RV		D031	8

‹ Prev D094 Adaptive Cruise Control node bridge coupling Next › D098 Front/headlamp washer coupling

Parts & tools for this job Staging For 2002 Lancia Thesis

Links open Amazon search results in a new tab. As an Amazon Associate I earn from qualifying purchases.
