21 · General

C022 Centre dashboard earth

Make: Lancia
Model: Thesis Factory Service Manual
Year: 2002–2009
Section: Earths › C022 Centre dashboard earth

‹ Prev C020 Passenger dashboard earth Next › C030 Left rear earth

Connectors and pin-outsC022 Centre dashboard earth

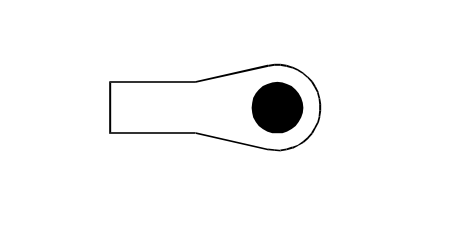

C022 Centre dashboard earth

C022A – Dashboard

2.4 20V

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2	100,5	N		N027A	1
3	0,5	N		D021	6
4	100,5	N		D097H	1
5	0,35	NZ		I015	1
6	0,35	NZ		H092C	4
7	0,35	NZ		G035	2
8	0,35	NZ		G047	2
9	0,35	NZ		G050	2
10	0,5	N		P135	6
11	0,35	NZ		G048	2

2.0 TB

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2	100,5	N		N027A	1
3	0,5	N		D021	6
4	100,5	N		D097H	1
5	0,35	NZ		I015	1
6	0,35	NZ		H092C	4
7	0,35	NZ		G035	2
8	0,35	NZ		G047	2
9	0,35	NZ		G050	2
10	0,5	N		P135	6
11	0,35	NZ		G048	2

2.4 JTD 10V

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2	100,5	N		N027A	1
3	0,5	N		D021	6
4	100,5	N		D097H	1
5	0,35	NZ		I015	1
6	0,35	NZ		H092C	4
7	0,35	NZ		G035	2
8	0,35	NZ		G047	2
9	0,35	NZ		G050	2
10	0,5	N		P135	6
11	0,35	NZ		G048	2

3.0 V6

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2	100,5	N		N027A	1
3	0,5	N		D021	6
4	100,5	N		D097H	1
5	0,35	NZ		I015	1
6	0,35	NZ		H092C	4
7	0,35	NZ		G035	2
8	0,35	NZ		G047	2
9	0,35	NZ		G050	2
10	0,5	N		P135	6
11	0,35	NZ		G048	2

C022B – Dashboard

2.4 20V

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	NZ	X	H005C	5
				H005B	4
2	0,35	NZ		H092A	1
3	0,5	NZ		M001E	8
4	0,5	N		M001E	9
5	0,35	NZ		H020	2
6	0,5	NZ		E050A	7

2.0 TB

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	NZ	X	H005C	5
				H005B	4
2	0,35	NZ		H092A	1
3	0,5	NZ		M001E	8
4	0,5	N		M001E	9
5	0,35	NZ		H020	2
6	0,5	NZ		E050A	7

2.4 JTD 10V

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	NZ	X	H005C	5
				H005B	4
2	0,35	NZ		H092A	1
3	0,5	NZ		M001E	8
4	0,5	N		M001E	9
5	0,35	NZ		H020	2
6	0,5	NZ		E050A	7

3.0 V6

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	NZ	X	H005C	5
				H005B	4
2	0,35	NZ		H092A	1
3	0,5	NZ		M001E	8
4	0,5	N		M001E	9
5	0,35	NZ		H020	2
6	0,5	NZ		E050A	7

C022C – Dashboard

2.4 20V

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	NS		H092D	4
2	0,35	NZ		N027B	1
3	0,35	NZ		H093	5
4	0,35	N		H091	2
5	100,5	N		B002H	10
6	0,35	NV		D047	6

2.0 TB

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	NS		H092D	4
2	0,35	NZ		N027B	1
3	0,35	NZ		H093	5
4	0,35	N		H091	2
5	100,5	N		B002H	10
6	0,35	NV		D047	6

2.4 JTD 10V

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	NS		H092D	4
2	0,35	NZ		N027B	1
3	0,35	NZ		H093	5
4	0,35	N		H091	2
5	100,5	N		B002H	10
6	0,35	NV		D047	6

3.0 V6

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	NS		H092D	4
2	0,35	NZ		N027B	1
3	0,35	NZ		H093	5
4	0,35	N		H091	2
5	100,5	N		B002H	10
6	0,35	NV		D047	6

C022D – Dashboard

2.4 20V

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	100,5	N		M065B	A8
1	0,35	NV		M120B	11

2.0 TB

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	100,5	N		M065B	A8
1	0,35	NV		M120B	11

2.4 JTD 10V

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	100,5	N		M065B	A8
1	0,35	NV		M120B	11

3.0 V6

Wiring	Colour
20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	100,5	N		M065B	A8
1	0,35	NV		M120B	11
