C010 Left front earth

Make

Lancia

Model

Thesis Factory Service Manual

Year

2002–2009

Section

Earths › C010 Left front earth

Connectors and pin-outsC010 Left front earth

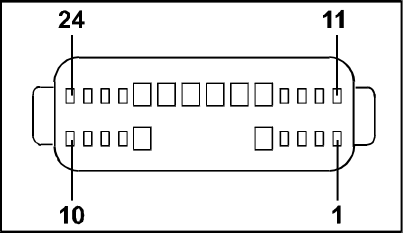

C010 Left front earth

C010A – Front

3.2 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin

2.4 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	NZ		K026	2
8	0,35	NZ		K025	2
9	0,5	N		F020	2
10	0,35	NZ		I031	2
12	0,5	NZ		P090	3
15	200,5	N		M075B	2
18	100,5	N		F010	1
19	100,5	N		F010	14
20	1	N		M089	5
22	0,35	NZ		K064	2
24	0,35	NZ		I031	3

2.4 JTD 10V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	NZ		K026	2
8	0,35	NZ		K025	2
9	0,5	N		F020	2
10	0,35	NZ		I031	2
12	0,5	NZ		P090	3
15	200,5	N		M075B	2
18	100,5	N		F010	1
19	100,5	N		F010	14
20	1	N		M089	5
22	0,35	NZ		K064	2
24	0,35	NZ		I031	3

3.0 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	NZ		K026	2
6	1	N		M052	2
7	0,5	N		M087	1
8	0,35	NZ		K025	2
9	0,5	N		F020	2
12	0,5	NZ		P090	3
13	0,5	N		D097B	1
14	0,5	N		L050A	9
15	200,5	N		M075B	2
17	100,5	N		D009D	2
18	100,5	N		F010	1
19	100,5	N		F010	14
20	1	N		M089	5
21	0,5	N		M010A	11
22	0,35	NZ		K064	2
23	0,5	NZ		I035	4
24	0,5	NZ		I035	1

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	NZ		K026	2
8	0,35	NZ		K025	2
9	0,5	N		F020	2
10	0,35	NZ		I031	2
12	0,5	NZ		P090	3
15	200,5	N		M075B	2
17	100,5	N	X	D009C	2
				D009D	2
18	100,5	N		F010	1
19	100,5	N		F010	14
20	1	N		M089	5
22	0,35	NZ		K064	2
24	0,35	NZ		I031	3

2.0 TB

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	NZ		K026	2
8	0,35	NZ		K025	2
9	0,5	N		F020	2
10	0,35	NZ		I031	2
12	0,5	NZ		P090	3
15	200,5	N		M075B	2
17	100,5	N		D009D	2
18	100,5	N		F010	1
19	100,5	N		F010	14
20	1	N		M089	5
22	0,35	NZ		K064	2
24	0,35	NZ		I031	3

2.4 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	NZ		K026	2
8	0,35	NZ		K025	2
9	0,5	N		F020	2
12	0,5	NZ		P090	3
13	0,5	N		D097B	1
14	0,5	N		L050A	9
15	200,5	N		M075B	2
17	100,5	N		D009D	2
18	100,5	N		F010	1
19	100,5	N		F010	14
20	1	N		M089	5
21	0,5	N		M010A	11
23	0,5	NZ		I035	4
24	0,5	NZ		I035	1

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	NZ		K026	2
6	1	N		M052	2
7	0,5	N		M087	1
8	0,35	NZ		K025	2
9	0,5	N		F020	2
12	0,5	NZ		P090	3
13	0,5	N		D097B	1
14	0,5	N		L050A	9
15	200,5	N		M075B	2
17	100,5	N	X	D009C	2
				D009D	2
18	100,5	N		F010	1
20	1	N		M089	5
23	0,5	NZ		I035	4
24	0,5	NZ		I035	1

C010B – Front

2.4 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	N-SCH2		M001B	21

2.0 TB

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	N-SCH2		M001B	21

3.2 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin

2.4 JTD 10V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	N-SCH2		M001B	21

3.0 V6

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	N-SCH2		M001B	21

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	N-SCH2		M001B	21

2.4 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	N-SCH2		M001B	21

2.4 JTD 20V

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	N-SCH2		M001B	21
