D071 Passenger seat coupling

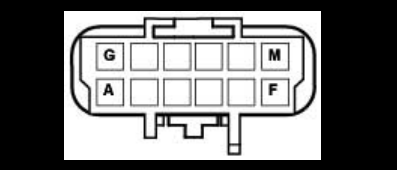

D071A – Rear

2.4 20V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	200,5	LN		B045	18
B	0,35	BL		D032	H
C	0,75	MR		M063G	38
D	0,35	GR	X	G020	6
				M063E	14
				D037	1
				D035	25
				G058	1
				D036	25
				D006	B7
				G057	1
				H060	4
				D070B	D
				D032	B
E	0,35	BS		D097M	9
F	200,5	N		C020	9
G	100,5	LG	X	D070B	G
				B045	26
J	0,35	NS		D097N	9
K	0,35	BN		D032	L
L	0,5	N		C020	6
M	0,5	R		D097L	2

2.0 TB

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	200,5	LN		B045	18
B	0,35	BL		D032	H
C	0,75	MR		M063G	38
D	0,35	GR	X	G020	6
				M063E	14
				D037	1
				D035	25
				G058	1
				D036	25
				D006	B7
				G057	1
				H060	4
				D070B	D
				D032	B
E	0,35	BS		D097M	9
F	200,5	N		C020	9
G	100,5	LG	X	D070B	G
				B045	26
J	0,35	NS		D097N	9
K	0,35	BN		D032	L
L	0,5	N		C020	6
M	0,5	R		D097L	2

2.4 JTD 10V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
B	0,35	BL		D032	H
C	0,75	MR		M063G	38
D	0,35	GR	X	G020	6
				M063E	14
				D035	25
				G058	1
				D036	25
				D006	B7
				G057	1
				H060	4
				D070B	D
				D032	B
				D037	1
E	0,35	BS		D097M	9
F	200,5	N		C020	9
G	100,5	LG	X	D070B	G
				B045	26
J	0,35	NS		D097N	9
K	0,35	BN		D032	L
L	0,5	N		C020	6
M	0,5	R		D097L	2
A	200,5	LN		B045	18

3.0 V6

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	200,5	LN		B045	18
B	0,35	BL		D032	H
C	0,75	MR		M063G	38
D	0,35	GR	X	G020	6
				M063E	14
				D037	1
				D035	25
				G058	1
				D036	25
				D006	B7
				G057	1
				H060	4
				D070B	D
				D032	B
E	0,35	BS		D097M	9
F	200,5	N		C020	9
G	100,5	LG	X	D070B	G
				B045	26
J	0,35	NS		D097N	9
K	0,35	BN		D032	L
L	0,5	N		C020	6
M	0,5	R		D097L	2

2.4 20V

Wiring	Colour
37 RIGHT SEAT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	200,5	L	X	J108	1
				H067	B2
				J106	87
				J105	87
				J105	85
				J106	85
B	0,5	BN		J106	86
C	0,35	MR		M110	6
D	0,35	GR		I066	3
F	200,5	N	X	M110	2
				H067	B1
				D134	7
				O047	2
				D134	9
G	100,5	LG		M110	8
K	0,5	BL		J105	86

2.0 TB

Wiring	Colour
37 RIGHT SEAT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	200,5	L	X	J108	1
				H067	B2
				J106	87
				J105	87
				J105	85
				J106	85
B	0,5	BN		J106	86
C	0,35	MR		M110	6
D	0,35	GR		I066	3
F	200,5	N	X	M110	2
				H067	B1
				D134	7
				O047	2
				D134	9
G	100,5	LG		M110	8
K	0,5	BL		J105	86

2.4 JTD 10V

Wiring	Colour
37 RIGHT SEAT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	200,5	L	X	J108	1
				H067	B2
				J106	87
				J105	87
				J105	85
				J106	85
B	0,5	BN		J106	86
C	0,35	MR		M110	6
D	0,35	GR		I066	3
F	200,5	N	X	M110	2
				H067	B1
				D134	7
				O047	2
				D134	9
G	100,5	LG		M110	8
K	0,5	BL		J105	86

3.0 V6

Wiring	Colour
37 RIGHT SEAT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	200,5	L	X	J108	1
				H067	B2
				J106	87
				J105	87
				J105	85
				J106	85
B	0,5	BN		J106	86
C	0,35	MR		M110	6
D	0,35	GR		I066	3
F	200,5	N	X	M110	2
				H067	B1
				D134	7
				O047	2
				D134	9
G	100,5	LG		M110	8
K	0,5	BL		J105	86

D071B – Rear

2.4 20V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	CN		D020	47
3	0,35	N		C055	1

2.0 TB

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	CN		D020	47
3	0,35	N		C055	1

2.4 JTD 10V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	CN		D020	47
3	0,35	N		C055	1

3.0 V6

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	CN		D020	47
3	0,35	N		C055	1

D071C – Rear

2.4 20V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	SV		M060B	1
2	0,35	SZ		M060B	2

2.0 TB

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	SV		M060B	1
2	0,35	SZ		M060B	2

2.4 JTD 10V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	SV		M060B	1
2	0,35	SZ		M060B	2

3.0 V6

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	SV		M060B	1
2	0,35	SZ		M060B	2
