D070 Driver's seat coupling

Make: Lancia
Model: Thesis Factory Service Manual
Year: 2002–2009
Section: Intermediate couplings › D070 Driver's seat coupling

‹ Prev D055 Dashboard/TV coupling Next › D071 Passenger seat coupling

Connectors and pin-outsD070 Driver's seat coupling

D070 Driver's seat coupling

D070B – Rear

2.4 20V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	200,5	L		B045	17
C	0,75	BH		M063F	35
D	0,35	GR	X	M063E	14
				D037	1
				D035	25
				G058	1
				D036	25
				D006	B7
				G057	1
				H060	4
				D071A	D
				D032	B
				G020	6
E	0,35	BS		D097M	6
F	200,5	N		C015	7
G	100,5	LG	X	D071A	G
				B045	26
J	0,35	NS		D097N	6
L	0,5	N		C015	11
M	0,5	R		D097L	3

2.0 TB

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	200,5	L		B045	17
C	0,75	BH		M063F	35
D	0,35	GR	X	G020	6
				M063E	14
				D037	1
				D035	25
				G058	1
				D036	25
				D006	B7
				G057	1
				H060	4
				D071A	D
				D032	B
E	0,35	BS		D097M	6
F	200,5	N		C015	7
G	100,5	LG	X	D071A	G
				B045	26
J	0,35	NS		D097N	6
L	0,5	N		C015	11
M	0,5	R		D097L	3

2.4 JTD 10V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	200,5	L		B045	17
C	0,75	BH		M063F	35
D	0,35	GR	X	G020	6
				M063E	14
				D037	1
				D035	25
				G058	1
				D036	25
				D006	B7
				G057	1
				H060	4
				D071A	D
				D032	B
E	0,35	BS		D097M	6
F	200,5	N		C015	7
G	100,5	LG	X	D071A	G
				B045	26
J	0,35	NS		D097N	6
L	0,5	N		C015	11
M	0,5	R		D097L	3

3.0 V6

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	200,5	L		B045	17
C	0,75	BH		M063F	35
D	0,35	GR	X	G020	6
				M063E	14
				D037	1
				D035	25
				G058	1
				D036	25
				D006	B7
				G057	1
				H060	4
				D071A	D
				D032	B
E	0,35	BS		D097M	6
F	200,5	N		C015	7
G	100,5	LG	X	D071A	G
				B045	26
J	0,35	NS		D097N	6
L	0,5	N		C015	11
M	0,5	R		D097L	3

2.4 20V

Wiring	Colour
36 LEFT SEAT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	200,5	L	X	M076C	B8
				J107	1
C	0,35	BH		M076C	B6
D	0,35	GR	X	H066	B2
				I065	2
E	0,35	BS		M076C	B3
F	200,5	N	X	M076C	A8
				D133	7
				O046	2
				D133	9
G	100,5	LG		M076C	C8
J	0,35	NS		M076C	A4
L	0,5	N		M076C	A7
M	0,5	R		M076C	C7

2.0 TB

Wiring	Colour
36 LEFT SEAT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	200,5	L	X	M076C	B8
				J107	1
C	0,35	BH		M076C	B6
D	0,35	GR	X	H066	B2
				I065	2
E	0,35	BS		M076C	B3
F	200,5	N	X	M076C	A8
				D133	7
				O046	2
				D133	9
G	100,5	LG		M076C	C8
J	0,35	NS		M076C	A4
L	0,5	N		M076C	A7
M	0,5	R		M076C	C7

2.4 JTD 10V

Wiring	Colour
36 LEFT SEAT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	200,5	L	X	M076C	B8
				J107	1
C	0,35	BH		M076C	B6
D	0,35	GR	X	H066	B2
				I065	2
E	0,35	BS		M076C	B3
F	200,5	N	X	M076C	A8
				D133	7
				O046	2
				D133	9
G	100,5	LG		M076C	C8
J	0,35	NS		M076C	A4
L	0,5	N		M076C	A7
M	0,5	R		M076C	C7

3.0 V6

Wiring	Colour
36 LEFT SEAT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	200,5	L	X	M076C	B8
				J107	1
C	0,35	BH		M076C	B6
D	0,35	GR	X	H066	B2
				I065	2
E	0,35	BS		M076C	B3
F	200,5	N	X	M076C	A8
				D133	7
				O046	2
				D133	9
G	100,5	LG		M076C	C8
J	0,35	NS		M076C	A4
L	0,5	N		M076C	A7
M	0,5	R		M076C	C7

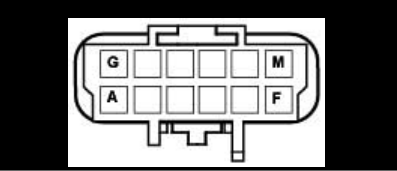

D070C – Rear

2.4 20V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	1	HV		D020	35
B	0,35	BS		D020	24
C	0,35	BH		D020	33
D	0,35	BL		D020	8
F	1	HL		D020	38
G	1	HG		D020	39
H	0,35	SZ		D020	42
J	0,35	BV		D020	40
K	0,35	BZ		D020	37
L	0,35	SR		D020	41
M	1	HR		D020	36

2.0 TB

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	1	HV		D020	35
B	0,35	BS		D020	24
C	0,35	BH		D020	33
D	0,35	BL		D020	8
F	1	HL		D020	38
G	1	HG		D020	39
H	0,35	SZ		D020	42
J	0,35	BV		D020	40
K	0,35	BZ		D020	37
L	0,35	SR		D020	41
M	1	HR		D020	36

2.4 JTD 10V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	1	HV		D020	35
B	0,35	BS		D020	24
C	0,35	BH		D020	33
D	0,35	BL		D020	8
F	1	HL		D020	38
G	1	HG		D020	39
H	0,35	SZ		D020	42
J	0,35	BV		D020	40
K	0,35	BZ		D020	37
L	0,35	SR		D020	41
M	1	HR		D020	36

3.0 V6

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	1	HV		D020	35
B	0,35	BS		D020	24
C	0,35	BH		D020	33
D	0,35	BL		D020	8
F	1	HL		D020	38
G	1	HG		D020	39
H	0,35	SZ		D020	42
J	0,35	BV		D020	40
K	0,35	BZ		D020	37
L	0,35	SR		D020	41
M	1	HR		D020	36

2.4 20V

Wiring	Colour
36 LEFT SEAT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	1	HV		M076C	C1
B	0,35	BS		M076C	A6
C	0,35	BH		M076C	A3
D	0,35	BL		M076C	B5
F	1	HL		M076C	B2
G	1	HG		M076C	A1
H	0,35	SZ		M076C	C5
J	0,35	BV		M076C	B4
K	0,35	BZ		M076C	A5
L	0,35	SR		M076C	C3
M	1	HR		M076C	B1

2.0 TB

Wiring	Colour
36 LEFT SEAT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	1	HV		M076C	C1
B	0,35	BS		M076C	A6
C	0,35	BH		M076C	A3
D	0,35	BL		M076C	B5
F	1	HL		M076C	B2
G	1	HG		M076C	A1
H	0,35	SZ		M076C	C5
J	0,35	BV		M076C	B4
K	0,35	BZ		M076C	A5
L	0,35	SR		M076C	C3
M	1	HR		M076C	B1

2.4 JTD 10V

Wiring	Colour
36 LEFT SEAT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	1	HV		M076C	C1
B	0,35	BS		M076C	A6
C	0,35	BH		M076C	A3
D	0,35	BL		M076C	B5
F	1	HL		M076C	B2
G	1	HG		M076C	A1
H	0,35	SZ		M076C	C5
J	0,35	BV		M076C	B4
K	0,35	BZ		M076C	A5
L	0,35	SR		M076C	C3
M	1	HR		M076C	B1

3.0 V6

Wiring	Colour
36 LEFT SEAT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A	1	HV		M076C	C1
B	0,35	BS		M076C	A6
C	0,35	BH		M076C	A3
D	0,35	BL		M076C	B5
F	1	HL		M076C	B2
G	1	HG		M076C	A1
H	0,35	SZ		M076C	C5
J	0,35	BV		M076C	B4
K	0,35	BZ		M076C	A5
L	0,35	SR		M076C	C3
M	1	HR		M076C	B1

D070D – Rear

2.4 20V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	CB		D020	46
3	0,35	N		C055	1

2.0 TB

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	CB		D020	46
3	0,35	N		C055	1

2.4 JTD 10V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	CB		D020	46
3	0,35	N		C055	1

3.0 V6

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	0,35	CB		D020	46
3	0,35	N		C055	1
