I065 Driver's seat heating switch
- Make
- Lancia
- Model
- Thesis Factory Service Manual
- Year
- 2002–2009
- Section
- Switches › I065 Driver's seat heating switch
Connectors and pin-outsI065 Driver's seat heating switch

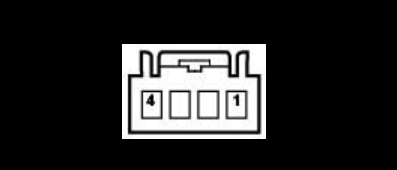

I065 Driver's seat heating switch
| Wiring | Colour |
|---|---|
| 36 LEFT SEAT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 1 | 0,35 | SZ | M076A | C2 | |
| 2 | 0,35 | GR | X | D070B | D |
| H066 | B2 | ||||
| 3 | 0,35 | BL | M076A | B7 | |
| 4 | 0,35 | SR | M076A | C8 | |
| Wiring | Colour |
|---|---|
| 36 LEFT SEAT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 1 | 0,35 | SZ | M076A | C2 | |
| 2 | 0,35 | GR | X | D070B | D |
| H066 | B2 | ||||
| 3 | 0,35 | BL | M076A | B7 | |
| 4 | 0,35 | SR | M076A | C8 | |
| Wiring | Colour |
|---|---|
| 36 LEFT SEAT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 1 | 0,35 | SZ | M076A | C2 | |
| 2 | 0,35 | GR | X | D070B | D |
| H066 | B2 | ||||
| 3 | 0,35 | BL | M076A | B7 | |
| 4 | 0,35 | SR | M076A | C8 | |
| Wiring | Colour |
|---|---|
| 36 LEFT SEAT |
