Lancia Thesis Factory Service Manual (2002-2009)21 · Connectors and pin-outs
21 · General

J107 Left front seat polyswitch

Make
Lancia
Model
Thesis Factory Service Manual
Year
2002–2009
Section
Relays › J107 Left front seat polyswitch
Connectors and pin-outsJ107 Left front seat polyswitch

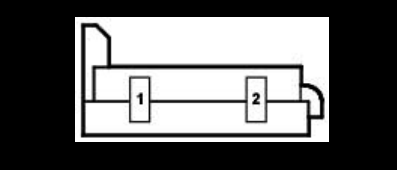

J107 Left front seat polyswitch

2.4 20V

J107 Left front seat polyswitch
WiringColour
36 LEFT SEAT
PinCableDestination
DiameterColourNodeConnectorPin
1100,5LXM076CB8
D070BA
20,5LRI0674

2.0 TB

J107 Left front seat polyswitch
WiringColour
36 LEFT SEAT
PinCableDestination
DiameterColourNodeConnectorPin
1100,5LXM076CB8
D070BA
20,5LRI0674

2.4 JTD 10V

J107 Left front seat polyswitch
WiringColour
36 LEFT SEAT
PinCableDestination
DiameterColourNodeConnectorPin
1100,5LXM076CB8
D070BA
20,5LRI0674

3.0 V6

J107 Left front seat polyswitch
WiringColour
36 LEFT SEAT
PinCableDestination
DiameterColourNodeConnectorPin
1100,5LXM076CB8
D070BA
20,5LRI0674
