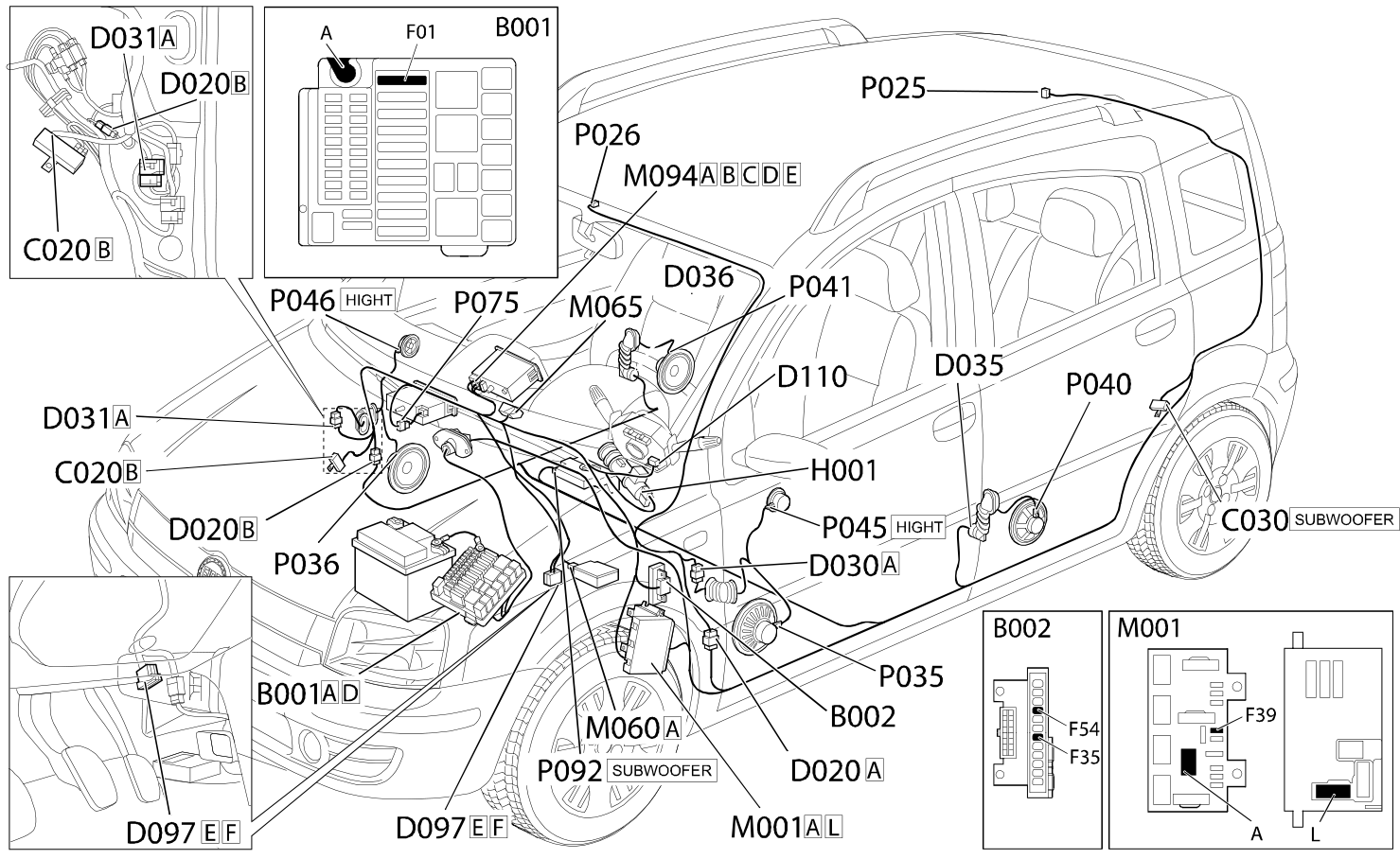

CONNECT - COMPONENT LOCATION

Component location

COMPONENTS

Component code	Description	Reference to the assembly
B1	JUNCTION UNIT	Op. 5505C VEHICLE COMPARTMENT WIRING
B2	JUNCTION UNIT UNDER DASHBOARD	Op. 5505C VEHICLE COMPARTMENT WIRING
C20	PASSENGER SIDE DASHBOARD EARTH
C30	REAR LEFT EARTH
D20	FACIA/REAR JUNCTION
D30	REAR COUPLING FOR /FRONT DOOR. DRIVER''S SIDE
D31	RIGHT FRONT DOOR REAR COUPLING/.
D97	SHORT CIRCUITING COUPLING
D110	CLOCK SPRING AND STEERING WHEEL CONTROLS COUPLING
H1	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
M1	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M60	AIR BAG CONTROL UNIT	Op. 5580C AIR BAG SYSTEM
M94	RADIO RECEIVER NODE
P25	AERIAL POWER SUPPLY/AMPLIFIER	Op. 5570T CAR RADIO AND CAR TELEPHONE
P26	MICROPHONE
P35	SPEAKER ON FRONT DOOR LEFT	Op. 5570T CAR RADIO AND CAR TELEPHONE
P36	SPEAKER ON FRONT RIGHT DOOR	Op. 5570T CAR RADIO AND CAR TELEPHONE
P40	SPEAKER IN REAR LEFT DOOR	Op. 5570T CAR RADIO AND CAR TELEPHONE
P41	SPEAKER ON RIGHT REAR DOOR	Op. 5570T CAR RADIO AND CAR TELEPHONE
P45	LEFT TWEETER SPEAKER
P46	RIGHT TWEETER SPEAKER
P75	CD PLAYER/CHANGER
P92	SUBWOOFER
