H001 ignition switch

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Manual electric controls › H001 ignition switch

Connectors and pin-outsH001 ignition switch

H001 IGNITION SWITCH

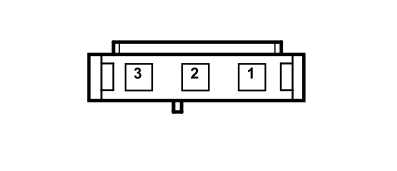

H001A – Front

1.2 8v · Smart gearbox

Wiring	Colour
See 12 FRONT	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	C	X	See B001D JUNCTION UNIT (FRONT)	6
				See B001D JUNCTION UNIT (FRONT)	7
				See B001D JUNCTION UNIT (FRONT)	4
2	1,5	R		See B001D JUNCTION UNIT (FRONT)	26
3	1,5	M	X	See M054B ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	76
				See B001D JUNCTION UNIT (FRONT)	86

1.3 JTD 16v

Wiring	Colour
See 12 FRONT	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	C	X	See B001D JUNCTION UNIT (FRONT)	6
				See B001D JUNCTION UNIT (FRONT)	7
				See B001D JUNCTION UNIT (FRONT)	4
2	1,5	R		See B001D JUNCTION UNIT (FRONT)	26
3	1,5	M		See D004 FRONT/ENGINE COUPLING	G

1.1, 1.2 8v

Wiring	Colour
See 12 FRONT	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	C	X	See B001D JUNCTION UNIT (FRONT)	6
				See B001D JUNCTION UNIT (FRONT)	7
				See B001D JUNCTION UNIT (FRONT)	4
2	1,5	R		See B001D JUNCTION UNIT (FRONT)	26
3	1,5	M		See D004 FRONT/ENGINE COUPLING	G

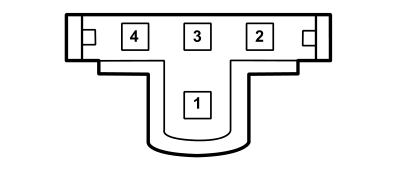

H001B – Dashboard

Wiring	Colour
See 20 DASHBOARD	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	A		See B002 JUNCTION UNIT UNDER DASHBOARD	25
2	1,5	L		See B002 JUNCTION UNIT UNDER DASHBOARD	27
