C020 passenger side dashboard earth

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Earths › C020 passenger side dashboard earth

Connectors and pin-outsC020 passenger side dashboard earth

C020 PASSENGER SIDE DASHBOARD EARTH

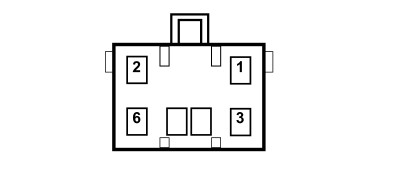

C020A – Rear

Wiring	Colour
See 25 REAR	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	0,5	NZ		See H030 ADJUSTABLE MIRRORS CONTROL	5
3	0,35	NS		See D036 RIGHT REAR DOOR COUPLING	4
4	0,5	N		See F021 RIGHT SIDE REPEATER	1
5	1,5	N		See P050 CIGARETTE LIGHTER/POWER SOCKET	3
6	1,5	N		See M095 Sun roof control unit	3

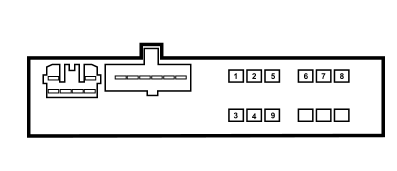

C020B – Dashboard

Right hand drive

Wiring	Colour
See 20 DASHBOARD	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	LN		See D110 CLOCK SPRING AND STEERING WHEEL CONTROLS COUPLING	7
2	2,5	N		See M094A RADIO RECEIVER NODE (DASHBOARD)	8
3	0,5	NZ		See D031A PASSENGER FRONT DOOR COUPLING (DASHBOARD)	2
4	0,5	NZ		See D030B DRIVER'S FRONT DOOR COUPLING (DASHBOARD)	6
5	0,35	NS		See H043 PASSENGER'S FRONT ELECTRIC WINDOW SWITCH	3
6	0,35	NZ		See H042 DRIVER'S FRONT ELECTRIC WINDOW SWITCH	3
7	0,35	NS		See D030A DRIVER'S FRONT DOOR COUPLING (DASHBOARD)	4
8	0,35	NZ		See M065 Info-telematic control unit (NIT)	12
10	0,35	NS		See D031A PASSENGER FRONT DOOR COUPLING (DASHBOARD)	4
11	0,35	NS		See D110 CLOCK SPRING AND STEERING WHEEL CONTROLS COUPLING	1
12	0,5	NZ		See M001L BODY COMPUTER (DASHBOARD)	2

CONNECT

Wiring	Colour
See 20 DASHBOARD	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	LN		See D110 CLOCK SPRING AND STEERING WHEEL CONTROLS COUPLING	7
2	2,5	N		See M094A RADIO RECEIVER NODE (DASHBOARD)	8
3	0,5	NZ		See D031A PASSENGER FRONT DOOR COUPLING (DASHBOARD)	2
4	0,5	NZ		See D030B DRIVER'S FRONT DOOR COUPLING (DASHBOARD)	6
5	0,35	NS		See H043 PASSENGER'S FRONT ELECTRIC WINDOW SWITCH	3
6	0,35	NZ		See H042 DRIVER'S FRONT ELECTRIC WINDOW SWITCH	3
7	0,35	NS		See D031A PASSENGER FRONT DOOR COUPLING (DASHBOARD)	4
8	0,35	NZ		See M065 Info-telematic control unit (NIT)	12
10	0,35	NS		See D030A DRIVER'S FRONT DOOR COUPLING (DASHBOARD)	4
11	0,35	NS		See D110 CLOCK SPRING AND STEERING WHEEL CONTROLS COUPLING	1
12	0,5	NZ		See M001L BODY COMPUTER (DASHBOARD)	2

All versions

Wiring	Colour
See 20 DASHBOARD	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	LN		See D110 CLOCK SPRING AND STEERING WHEEL CONTROLS COUPLING	7
2	2,5	N		See M094A RADIO RECEIVER NODE (DASHBOARD)	8
3	0,5	NZ		See D031A PASSENGER FRONT DOOR COUPLING (DASHBOARD)	2
4	0,5	NZ		See D030B DRIVER'S FRONT DOOR COUPLING (DASHBOARD)	6
5	0,35	NS		See H043 PASSENGER'S FRONT ELECTRIC WINDOW SWITCH	3
6	0,35	NZ		See H042 DRIVER'S FRONT ELECTRIC WINDOW SWITCH	3
7	0,35	NS		See D031A PASSENGER FRONT DOOR COUPLING (DASHBOARD)	4
10	0,35	NS		See D030A DRIVER'S FRONT DOOR COUPLING (DASHBOARD)	4
11	0,35	NS		See D110 CLOCK SPRING AND STEERING WHEEL CONTROLS COUPLING	1
12	0,5	NZ		See M001L BODY COMPUTER (DASHBOARD)	2

22 General
