P092 subwoofer

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Various consumers › P092 subwoofer

Connectors and pin-outsP092 subwoofer

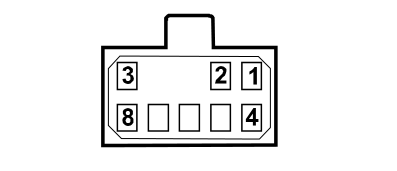

P092 SUBWOOFER

Wiring	Colour
See 25 REAR	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	CN	X	See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	4
				See D035 LEFT REAR DOOR COUPLING	9
2	1,5	AG	X	See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	6
				See D036 RIGHT REAR DOOR COUPLING	9
3	1,5	RB		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	12
4	1,5	BV	X	See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	5
				See D035 LEFT REAR DOOR COUPLING	6
5	1,5	LR	X	See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	7
				See D036 RIGHT REAR DOOR COUPLING	6
7	1,5	N		See C030 LEFT REAR EARTH	17
8	0,5	V		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	2
