D020 dashboard/rear coupling

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Intermediate couplings › D020 dashboard/rear coupling

Connectors and pin-outsD020 dashboard/rear coupling

D020 DASHBOARD/REAR COUPLING

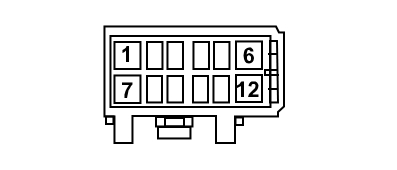

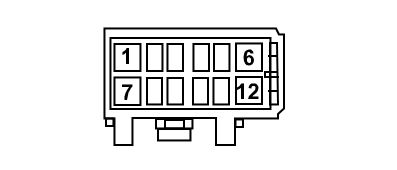

D020A – Dashboard

CONNECT

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	AB		See B002 JUNCTION UNIT UNDER DASHBOARD	18
2	0,5	V		See M094C RADIO RECEIVER NODE (DASHBOARD)	6
3	0,5	RV	X	See D097E SHORT CIRCUITING COUPLING (DASHBOARD)	4
				See H042 DRIVER'S FRONT ELECTRIC WINDOW SWITCH	4
				See H043 PASSENGER'S FRONT ELECTRIC WINDOW SWITCH	4
4	1,5	CN		See M094B RADIO RECEIVER NODE (DASHBOARD)	7
5	1,5	BV		See M094B RADIO RECEIVER NODE (DASHBOARD)	8
6	1,5	AG		See M094B RADIO RECEIVER NODE (DASHBOARD)	1
7	1,5	LR		See M094B RADIO RECEIVER NODE (DASHBOARD)	2
10	0,35	HB		See M065 Info-telematic control unit (NIT)	18
11	0,35	MB		See M065 Info-telematic control unit (NIT)	9
12	1,5	RB		See B002 JUNCTION UNIT UNDER DASHBOARD	24

All versions

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	AB		See B002 JUNCTION UNIT UNDER DASHBOARD	18
2	0,5	V		See M094C RADIO RECEIVER NODE (DASHBOARD)	6
3	0,5	RV	X	See D097E SHORT CIRCUITING COUPLING (DASHBOARD)	4
				See H042 DRIVER'S FRONT ELECTRIC WINDOW SWITCH	4
				See H043 PASSENGER'S FRONT ELECTRIC WINDOW SWITCH	4
4	1,5	CN		See M094B RADIO RECEIVER NODE (DASHBOARD)	7
5	1,5	BV		See M094B RADIO RECEIVER NODE (DASHBOARD)	8
6	1,5	AG		See M094B RADIO RECEIVER NODE (DASHBOARD)	1
7	1,5	LR		See M094B RADIO RECEIVER NODE (DASHBOARD)	2
12	1,5	RB		See B002 JUNCTION UNIT UNDER DASHBOARD	24

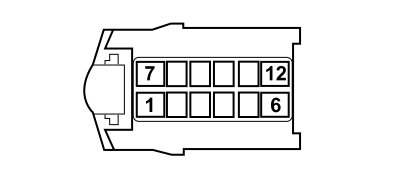

D020A – Rear

CONNECT

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	AB		See M095 Sun roof control unit	2
3	0,5	RV		See M095 Sun roof control unit	1
4	1,5	CN		See D035 LEFT REAR DOOR COUPLING	9
5	1,5	BV		See D035 LEFT REAR DOOR COUPLING	6
6	1,5	AG		See D036 RIGHT REAR DOOR COUPLING	9
7	1,5	LR		See D036 RIGHT REAR DOOR COUPLING	6
10	0,5	HB		See P026 HANDSFREE MICROPHONE	1
11	0,5	MB		See P026 HANDSFREE MICROPHONE	2

Subwoofer

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	AB		See M095 Sun roof control unit	2
2	0,5	V		See P092 SUBWOOFER	8
3	0,5	RV		See M095 Sun roof control unit	1
4	1,5	CN	X	See P092 SUBWOOFER	1
				See D035 LEFT REAR DOOR COUPLING	9
5	1,5	BV	X	See P092 SUBWOOFER	4
				See D035 LEFT REAR DOOR COUPLING	6
6	1,5	AG	X	See P092 SUBWOOFER	2
				See D036 RIGHT REAR DOOR COUPLING	9
7	1,5	LR	X	See P092 SUBWOOFER	5
				See D036 RIGHT REAR DOOR COUPLING	6
12	1,5	RB		See P092 SUBWOOFER	3

All versions

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	AB		See M095 Sun roof control unit	2
3	0,5	RV		See M095 Sun roof control unit	1
4	1,5	CN		See D035 LEFT REAR DOOR COUPLING	9
5	1,5	BV		See D035 LEFT REAR DOOR COUPLING	6
6	1,5	AG		See D036 RIGHT REAR DOOR COUPLING	9
7	1,5	LR		See D036 RIGHT REAR DOOR COUPLING	6

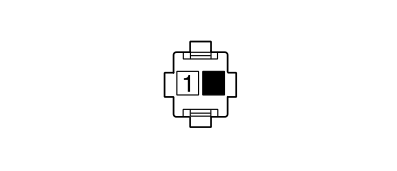

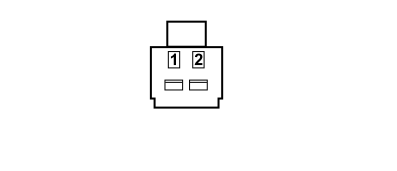

D020B – Dashboard

Wiring	Colour
See 20 DASHBOARD	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	R		See M094A RADIO RECEIVER NODE (DASHBOARD)	5

D020B – Rear

Wiring	Colour
See 25 REAR	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	R		See P025 AERIAL POWER SUPPLY	1

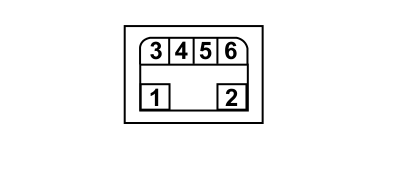

D020C – Dashboard

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	AV	X	See D030B DRIVER'S FRONT DOOR COUPLING (DASHBOARD)	2
				See D031B PASSENGER FRONT DOOR COUPLING (DASHBOARD)	3
2	0,5	BR		See B002 JUNCTION UNIT UNDER DASHBOARD	28
3	0,5	VN		See D031B PASSENGER FRONT DOOR COUPLING (DASHBOARD)	1
4	0,5	S		See D030B DRIVER'S FRONT DOOR COUPLING (DASHBOARD)	4
5	0,5	Z		See D031B PASSENGER FRONT DOOR COUPLING (DASHBOARD)	2
6	0,5	ZB		See D030B DRIVER'S FRONT DOOR COUPLING (DASHBOARD)	3

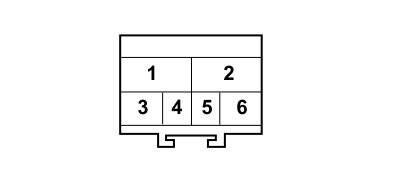

D020C – Rear

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	AV		See H030 ADJUSTABLE MIRRORS CONTROL	6
2	0,5	AB	X	See H030 ADJUSTABLE MIRRORS CONTROL	8
				See H030 ADJUSTABLE MIRRORS CONTROL	7
3	0,5	VN		See H030 ADJUSTABLE MIRRORS CONTROL	4
4	0,5	S		See H030 ADJUSTABLE MIRRORS CONTROL	3
5	0,5	Z		See H030 ADJUSTABLE MIRRORS CONTROL	2
6	0,5	ZB		See H030 ADJUSTABLE MIRRORS CONTROL	1
