D097 SHORT CIRCUITING COUPLING

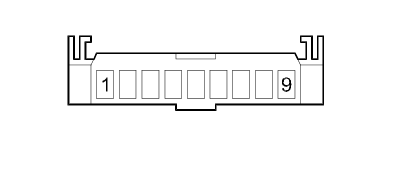

D097A – Front

1.2 8v · Air Conditioner, ESP, Smart gearbox

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	AN		See I020 REVERSING LIGHTS SWITCH	1
1	0,5	AN		See I020 REVERSING LIGHTS SWITCH	1
2	0,5	AN		See D008 AIR CONDITIONING-HEATER FRONT COUPLING	5
3	0,5	AN		See M001C BODY COMPUTER (FRONT)	9
4	0,5	AN		See B001D JUNCTION UNIT (FRONT)	48
5	0,5	CN	X	See B001D JUNCTION UNIT (FRONT)	68
				See B001D JUNCTION UNIT (FRONT)	64
6	0,35	LV		See B001D JUNCTION UNIT (FRONT)	80
7	0,75	CR	X	See M010B ENGINE MANAGEMENT ECU (FRONT)	12
				See B001D JUNCTION UNIT (FRONT)	57
				See M010B ENGINE MANAGEMENT ECU (FRONT)	29
8	0,75	AR		See B001D JUNCTION UNIT (FRONT)	17
9	0,5	CB	X	See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	28
				See H037 GEAR CONTROLS	6
				See B001D JUNCTION UNIT (FRONT)	84

1.2 8v · Smart gearbox

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	AN		See I020 REVERSING LIGHTS SWITCH	1
1	0,5	AN		See I020 REVERSING LIGHTS SWITCH	1
3	0,5	AN		See M001C BODY COMPUTER (FRONT)	9
4	0,5	AN		See B001D JUNCTION UNIT (FRONT)	48
5	0,5	CN	X	See B001D JUNCTION UNIT (FRONT)	68
				See B001D JUNCTION UNIT (FRONT)	64
6	0,35	LV		See B001D JUNCTION UNIT (FRONT)	80
7	0,75	CR	X	See M010B ENGINE MANAGEMENT ECU (FRONT)	12
				See B001D JUNCTION UNIT (FRONT)	57
				See M010B ENGINE MANAGEMENT ECU (FRONT)	29
8	0,75	AR		See B001D JUNCTION UNIT (FRONT)	17
9	0,5	CB	X	See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	28
				See H037 GEAR CONTROLS	6
				See B001D JUNCTION UNIT (FRONT)	84

1.3 JTD 16v · Air Conditioner

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	AN		See I020 REVERSING LIGHTS SWITCH	1
2	0,5	AN		See D008 AIR CONDITIONING-HEATER FRONT COUPLING	5
3	0,5	AN		See M001C BODY COMPUTER (FRONT)	9
4	0,5	AN		See B001D JUNCTION UNIT (FRONT)	48
5	0,5	CN	X	See B001D JUNCTION UNIT (FRONT)	68
				See B001D JUNCTION UNIT (FRONT)	64
6	0,35	LV		See B001D JUNCTION UNIT (FRONT)	80
7	0,5	MN		See B001D JUNCTION UNIT (FRONT)	88
8	0,75	AR		See B001D JUNCTION UNIT (FRONT)	17
9	0,5	CB		See M010B ENGINE MANAGEMENT ECU (FRONT)	23

1.3 JTD 16v

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	AN		See I020 REVERSING LIGHTS SWITCH	1
3	0,5	AN		See M001C BODY COMPUTER (FRONT)	9
4	0,5	AN		See B001D JUNCTION UNIT (FRONT)	48
5	0,5	CN	X	See B001D JUNCTION UNIT (FRONT)	68
				See B001D JUNCTION UNIT (FRONT)	64
6	0,35	LV		See B001D JUNCTION UNIT (FRONT)	80
7	0,5	MN		See B001D JUNCTION UNIT (FRONT)	88
8	0,75	AR		See B001D JUNCTION UNIT (FRONT)	17
9	0,5	CB		See M010B ENGINE MANAGEMENT ECU (FRONT)	23

1.1, 1.2 8v

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	AN		See I020 REVERSING LIGHTS SWITCH	1
2	0,5	AN		See D008 AIR CONDITIONING-HEATER FRONT COUPLING	5
3	0, 5	AN		See M001C BODY COMPUTER (FRONT)	9
4	0,5	AN		See B001D JUNCTION UNIT (FRONT)	48
5	0,5	CN	X	See B001D JUNCTION UNIT (FRONT)	68
				See B001D JUNCTION UNIT (FRONT)	64
6	0,35	LV		See B001D JUNCTION UNIT (FRONT)	80
7	0,75	CR		See B001D JUNCTION UNIT (FRONT)	57
8	0,75	AR		See B001D JUNCTION UNIT (FRONT)	17
9	0,75	GB		See M010B ENGINE MANAGEMENT ECU (FRONT)	47

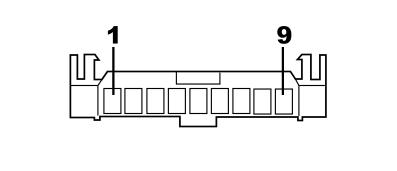

D097B – Front

1.2 8v · Air Conditioner, ESP, Smart gearbox

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	W		See B001D JUNCTION UNIT (FRONT)	18
5	1	MN		See D004 FRONT/ENGINE COUPLING	A
7	0,75	RV		See B001D JUNCTION UNIT (FRONT)	72

1.2 8v · Smart gearbox

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	W		See B001D JUNCTION UNIT (FRONT)	18
5	1	MN		See D004 FRONT/ENGINE COUPLING	A

1.3 JTD 16v · Air Conditioner

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	M		See B001D JUNCTION UNIT (FRONT)	18
5	1	M		See D004 FRONT/ENGINE COUPLING	A
6	0,75	MR		See B001D JUNCTION UNIT (FRONT)	31
7	0,75	RV		See B001D JUNCTION UNIT (FRONT)	72
8	0,75	MR		See M015A PLUG PREHEATING CONTROL UNIT (FRONT)	3

1.3 JTD 16v

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	M		See B001D JUNCTION UNIT (FRONT)	18
5	1	M		See D004 FRONT/ENGINE COUPLING	A
6	0,75	MR		See B001D JUNCTION UNIT (FRONT)	31
8	0,75	MR		See M015A PLUG PREHEATING CONTROL UNIT (FRONT)	3

1.1, 1.2 8v

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	W		See B001D JUNCTION UNIT (FRONT)	18
2	0,75	MR		See K017 LAMBDA SENSOR ON CATALYZER	4
3	0,75	MR		See K018 LAMBDA SENSOR ON CATALYZER - 2	4
5	0,75	MR		See D004 FRONT/ENGINE COUPLING	A
7	0,75	RV		See B001D JUNCTION UNIT (FRONT)	72

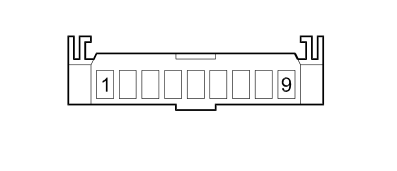

D097C – Front

1.2 8v · Smart gearbox

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	ZB		See I030 BRAKE PEDAL SWITCH	2
2	1	ZB		See M001B BODY COMPUTER (FRONT)	5
3	0,5	ZB		See M010B ENGINE MANAGEMENT ECU (FRONT)	35
4	0,5	ZB		See M051 Braking system control unit	30
5	0,5	ZB		See M054B ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	69
7	0,5	LG		See M051 Braking system control unit	41
8	0,5	RV		See M010B ENGINE MANAGEMENT ECU (FRONT)	34
9	0,5	LB		See I030 BRAKE PEDAL SWITCH	1

1.3 JTD 16v

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	ZB		See I030 BRAKE PEDAL SWITCH	2
2	1	ZB		See M001B BODY COMPUTER (FRONT)	5
3	0,5	ZB		See M010B ENGINE MANAGEMENT ECU (FRONT)	92
4	0,5	ZB		See M050 ABS CONTROL UNIT	20
8	0,5	LG		See M010B ENGINE MANAGEMENT ECU (FRONT)	68
9	0,5	LB		See I030 BRAKE PEDAL SWITCH	1

1.1, 1.2 8v

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	ZB		See I030 BRAKE PEDAL SWITCH	2
2	1	ZB		See M001B BODY COMPUTER (FRONT)	5
4	0,5	ZB		See M050 ABS CONTROL UNIT	20

D097D – Rear

Wiring	Colour
See 25 REAR	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
7	0,5	RV		See M001E BODY COMPUTER (REAR)	4
9	0,5	RV		See K062 ALARM VOLUMETRIC SENSORS ASSEMBLY	1

D097E – Dashboard

CONNECT

Wiring	Colour
See 20 DASHBOARD	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	LG		See B002 JUNCTION UNIT UNDER DASHBOARD	29
2	0,35	LG		See H090B SWITCH CONTROL PANEL (DASHBOARD)	13
3	0,35	LG		See M094A RADIO RECEIVER NODE (DASHBOARD)	4
4	0,5	LG	X	See H042 DRIVER'S FRONT ELECTRIC WINDOW SWITCH	4
				See H043 PASSENGER'S FRONT ELECTRIC WINDOW SWITCH	4
				See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	3
5	0,35	LG		See D001 FRONT/DASHBOARD COUPLING	11
6	0,35	LG		See D110 CLOCK SPRING AND STEERING WHEEL CONTROLS COUPLING	5
7	0,5	GR		See M001L BODY COMPUTER (DASHBOARD)	9
8	0,35	GR	X	See M094A RADIO RECEIVER NODE (DASHBOARD)	6
				See D075 RADIO PHONE COUPLING	8
9	0,35	GR		See D001 FRONT/DASHBOARD COUPLING	8

All versions

Wiring	Colour
See 20 DASHBOARD	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	LG		See B002 JUNCTION UNIT UNDER DASHBOARD	29
2	0,35	LG		See H090B SWITCH CONTROL PANEL (DASHBOARD)	13
3	0,35	LG		See M094A RADIO RECEIVER NODE (DASHBOARD)	7
4	0,5	LG	X	See H042 DRIVER'S FRONT ELECTRIC WINDOW SWITCH	4
				See H043 PASSENGER'S FRONT ELECTRIC WINDOW SWITCH	4
				See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	3
5	0,35	LG		See D001 FRONT/DASHBOARD COUPLING	11
6	0,35	LG		See D110 CLOCK SPRING AND STEERING WHEEL CONTROLS COUPLING	5
7	0,5	GR		See M001L BODY COMPUTER (DASHBOARD)	9
8	0,35	GR	X	See M094A RADIO RECEIVER NODE (DASHBOARD)	6
				See D075 RADIO PHONE COUPLING	8
9	0,35	GR		See D001 FRONT/DASHBOARD COUPLING	8

D097F – Dashboard

Wiring	Colour
See 20 DASHBOARD	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	BR		See B002 JUNCTION UNIT UNDER DASHBOARD	28
3	0,5	LR		See D021 DASHBOARD/AIR CONDITIONING-HEATER COUPLING	4
4	0,5	LR		See D075 RADIO PHONE COUPLING	7
6	0,5	MN		See D001 FRONT/DASHBOARD COUPLING	4
7	0,5	NZ		See M094D RADIO RECEIVER NODE (DASHBOARD)	12
8	0,35	NZ		See D110 CLOCK SPRING AND STEERING WHEEL CONTROLS COUPLING	2
9	0,5	NZ		See D075 RADIO PHONE COUPLING	10

D097G – Front

1.2 8v

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	M		See M010B ENGINE MANAGEMENT ECU (FRONT)	36
3	0,5	M		See M051 Braking system control unit	14
4	0,5	M		See M051 Braking system control unit	15
6	0,5	M		See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	7
7	0,5	M		See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	33
9	0,5	M		See M001D BODY COMPUTER (FRONT)	12

1.2 8v · Smart gearbox

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	M		See M010B ENGINE MANAGEMENT ECU (FRONT)	36
3	0,5	M		See M051 Braking system control unit	14
4	0,5	M		See M086B ELECTRIC STEERING CONTROL UNIT (FRONT)	3
6	0,5	M		See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	7
7	0,5	M		See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	33
9	0,5	M		See M001D BODY COMPUTER (FRONT)	12

D097H – Front

1.2 8v · Smart gearbox

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	V		See M010B ENGINE MANAGEMENT ECU (FRONT)	52
3	0,5	V		See M051 Braking system control unit	25
4	0,5	V		See M051 Braking system control unit	26
6	0,5	V		See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	19
7	0,5	V		See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	45
9	0,5	V		See M001D BODY COMPUTER (FRONT)	11
