Earths › C030 left rear earth
Connectors and pin-outs C030 left rear earth

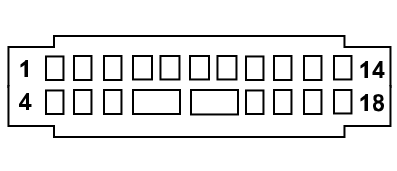

C030 LEFT REAR EARTH
1.3 JTD 16v · SUV
Pin Cable Destination Sec. Colour Node Connect. Pin 1 0,75 NS See N016 REAR WINDOW WIPER MOTOR 1 2 0,5 N See F020 LEFT SIDE REPEATER 1 3 1 NZ See D085 3 4 0,5 N See G010 FRONT COURTESY LIGHT 1 5 0,5 N See K062 ALARM VOLUMETRIC SENSORS ASSEMBLY 2 6 0,5 N See F040 ADDITIONAL REAR LIGHT ('THIRD BRAKE LIGHT) 2 7 2,5 M X See F030B LEFT REAR LIGHT CLUSTER (REAR) 1 See F030A LEFT REAR LIGHT CLUSTER (REAR) 2 See F030A LEFT REAR LIGHT CLUSTER (REAR) 3 8 1 N X See F031B RIGHT REAR LIGHT CLUSTER (FIXED PART) (REAR) 1 See F031A RIGHT REAR LIGHT CLUSTER (FIXED PART) (REAR) 2 See F031A RIGHT REAR LIGHT CLUSTER (FIXED PART) (REAR) 3 9 2,5 N See P055A HEATED REARSCREEN (REAR) 1 10 2 SN See I050 INERTIA SWITCH 1 12 0,35 NV See I033 SWITCH ON BOOT OUTER HANDLE 2 13 0,35 NZ See M084 PARKING SENSOR CONTROL UNIT 12 14 1,5 N See N057 BOOT LOCK GEARED MOTOR 2 16 0,5 N See I016B SWITCH ON LEFT FRONT DOOR. (REAR) 1 17 1,5 N See P092 SUBWOOFER 7

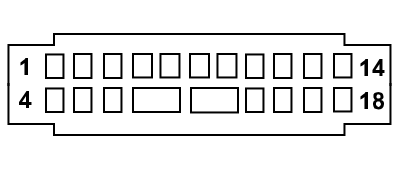

Door lock, Right hand drive
Pin Cable Destination Sec. Colour Node Connect. Pin 1 0, 75 N5 See N016 REAR WINDOW WIPER MOTOR 1 2 0,5 N See F020 LEFT SIDE REPEATER 1 3 1 NZ D085B 3 3 1 NZ D085A 3 4 0,5 N See G010 FRONT COURTESY LIGHT 1 4 0,5 N See G010 FRONT COURTESY LIGHT 1 6 0,5 N See F040 ADDITIONAL REAR LIGHT ('THIRD BRAKE LIGHT) 2 7 1 N See F030 LEFT REAR LIGHT CLUSTER 3 8 1 N See F031 RIGHT REAR LIGHT CLUSTER (FIXED PART) 3 9 2,5 N See P055A HEATED REARSCREEN (REAR) 1 10 2 SN See I050 INERTIA SWITCH 1 12 0,35 NV See I033 SWITCH ON BOOT OUTER HANDLE 2 13 0,35 NZ See M084 PARKING SENSOR CONTROL UNIT 12 14 1,5 N See N057 BOOT LOCK GEARED MOTOR 2 16 0,35 NS See D035 LEFT REAR DOOR COUPLING 4 17 1,5 N See P092 SUBWOOFER 7
Right hand drive
Pin Cable Destination Sec. Colour Node Connect. Pin 1 0, 75 N5 See N016 REAR WINDOW WIPER MOTOR 1 2 0,5 N See F020 LEFT SIDE REPEATER 1 3 1 NZ D085B 3 3 1 NZ D085A 3 4 0,5 N See G010 FRONT COURTESY LIGHT 1 4 0,5 N See G010 FRONT COURTESY LIGHT 1 6 0,5 N See F040 ADDITIONAL REAR LIGHT ('THIRD BRAKE LIGHT) 2 7 1 N See F030 LEFT REAR LIGHT CLUSTER 3 8 1 N See F031 RIGHT REAR LIGHT CLUSTER (FIXED PART) 3 9 2,5 N See P055A HEATED REARSCREEN (REAR) 1 10 2 SN See I050 INERTIA SWITCH 1 12 0,35 NV See I033 SWITCH ON BOOT OUTER HANDLE 2 13 0,35 NZ See M084 PARKING SENSOR CONTROL UNIT 12 14 1,5 N See N057 BOOT LOCK GEARED MOTOR 2 16 0,5 N See I016B SWITCH ON LEFT FRONT DOOR. (REAR) 1 17 1,5 N See P092 SUBWOOFER 7
Door lock
Pin Cable Destination Sec. Colour Node Connect. Pin 1 0,75 NS See N016 REAR WINDOW WIPER MOTOR 1 2 0,5 N See F020 LEFT SIDE REPEATER 1 3 1 NZ See D085 3 3 1 NZ See D085 3 4 0,5 N See G010 FRONT COURTESY LIGHT 1 4 0,5 N See G010 FRONT COURTESY LIGHT 1 5 0,5 N See K062 ALARM VOLUMETRIC SENSORS ASSEMBLY 2 6 0,5 N See F040 ADDITIONAL REAR LIGHT ('THIRD BRAKE LIGHT) 2 7 1 N See F030 LEFT REAR LIGHT CLUSTER 3 8 1 N See F031 RIGHT REAR LIGHT CLUSTER (FIXED PART) 3 9 2,5 N See P055A HEATED REARSCREEN (REAR) 1 10 2 SN See I050 INERTIA SWITCH 1 12 0,35 NV See I033 SWITCH ON BOOT OUTER HANDLE 2 13 0,35 NZ See M084 PARKING SENSOR CONTROL UNIT 12 14 1,5 N See N057 BOOT LOCK GEARED MOTOR 2 16 0,35 NS See D035 LEFT REAR DOOR COUPLING 4 17 1,5 N See P092 SUBWOOFER 7
All versions
Pin Cable Destination Sec. Colour Node Connect. Pin 1 0,75 NS See N016 REAR WINDOW WIPER MOTOR 1 2 0,5 N See F020 LEFT SIDE REPEATER 1 3 1 NZ See D085 3 4 0,5 N See G010 FRONT COURTESY LIGHT 1 5 0,5 N See K062 ALARM VOLUMETRIC SENSORS ASSEMBLY 2 6 0,5 N See F040 ADDITIONAL REAR LIGHT ('THIRD BRAKE LIGHT) 2 7 1 N See F030 LEFT REAR LIGHT CLUSTER 3 8 1 N See F031 RIGHT REAR LIGHT CLUSTER (FIXED PART) 3 9 2,5 N See P055A HEATED REARSCREEN (REAR) 1 10 2 SN See I050 INERTIA SWITCH 1 12 0,35 NV See I033 SWITCH ON BOOT OUTER HANDLE 2 13 0,35 NZ See M084 PARKING SENSOR CONTROL UNIT 12 14 1,5 N See N057 BOOT LOCK GEARED MOTOR 2 16 0,5 N See I016B SWITCH ON LEFT FRONT DOOR. (REAR) 1 17 1,5 N See P092 SUBWOOFER 7
