P075 cd player/changer

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Various consumers › P075 cd player/changer

Connectors and pin-outsP075 cd player/changer

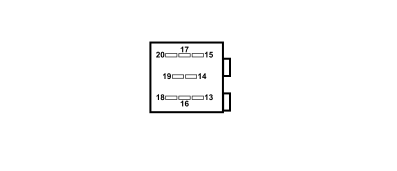

P075 CD PLAYER/CHANGER

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
13	0,35	GM		See M094E RADIO RECEIVER NODE (DASHBOARD)	13
14	0,35	LZ		See M094E RADIO RECEIVER NODE (DASHBOARD)	14
15	1	R		See M094E RADIO RECEIVER NODE (DASHBOARD)	15
16	0,35	HV		See M094E RADIO RECEIVER NODE (DASHBOARD)	16
17	1	N		See M094E RADIO RECEIVER NODE (DASHBOARD)	17
18	0,35	N		See M094E RADIO RECEIVER NODE (DASHBOARD)	18
19	0,35	BZ		See M094E RADIO RECEIVER NODE (DASHBOARD)	19
20	0,35	SZ		See M094E RADIO RECEIVER NODE (DASHBOARD)	20
