NAVIGATION SYSTEM
11
DESCRIPTION AND OPERATION

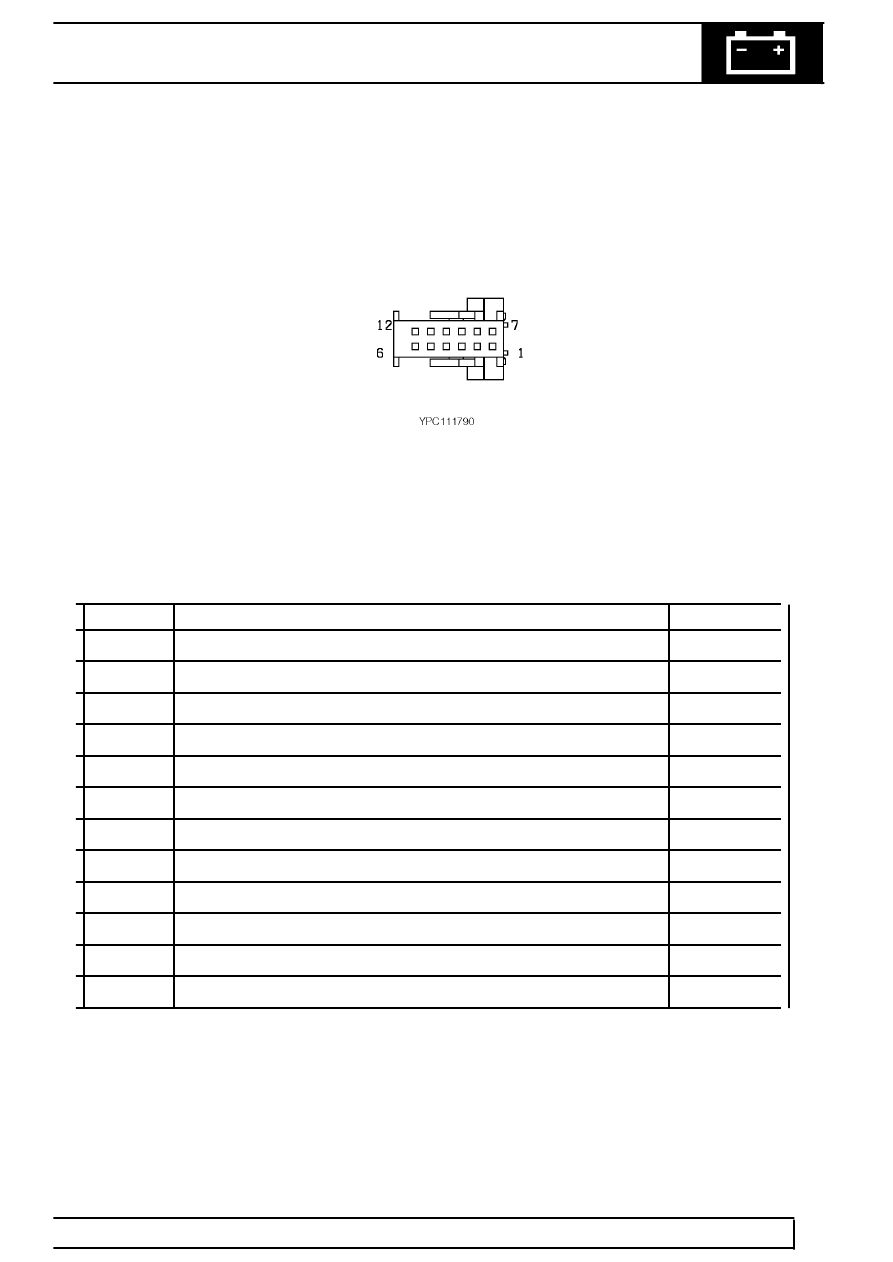

The D&C unit is connected with a 12-way MQL connector and a 6 way AMP connector.
C815 - 12 way MQL - White
Pin No.
Description
Input/Output
1
Red Video 50
Ω
from Nav Computer
Input
2
Video ground from Nav Computer
Input
3
Green Video & Sync 50
Ω
from Nav Computer
Input
4
Video ground from video module II
Input
5
Blue Video from video module II
Input
6
Video ground from video module II
Input
7
LCD Ground from video module II
Input
8
Not used
-
9
Not used
-
10
Not used
-
11
Not used
-
12
Not used
-
