87 - NAVIGATION SYSTEMNAVIGATION SYSTEM COMPONENTS · page 9 of 9
87
NAVIGATION SYSTEM
NEW RANGE ROVER
12
DESCRIPTION AND OPERATION

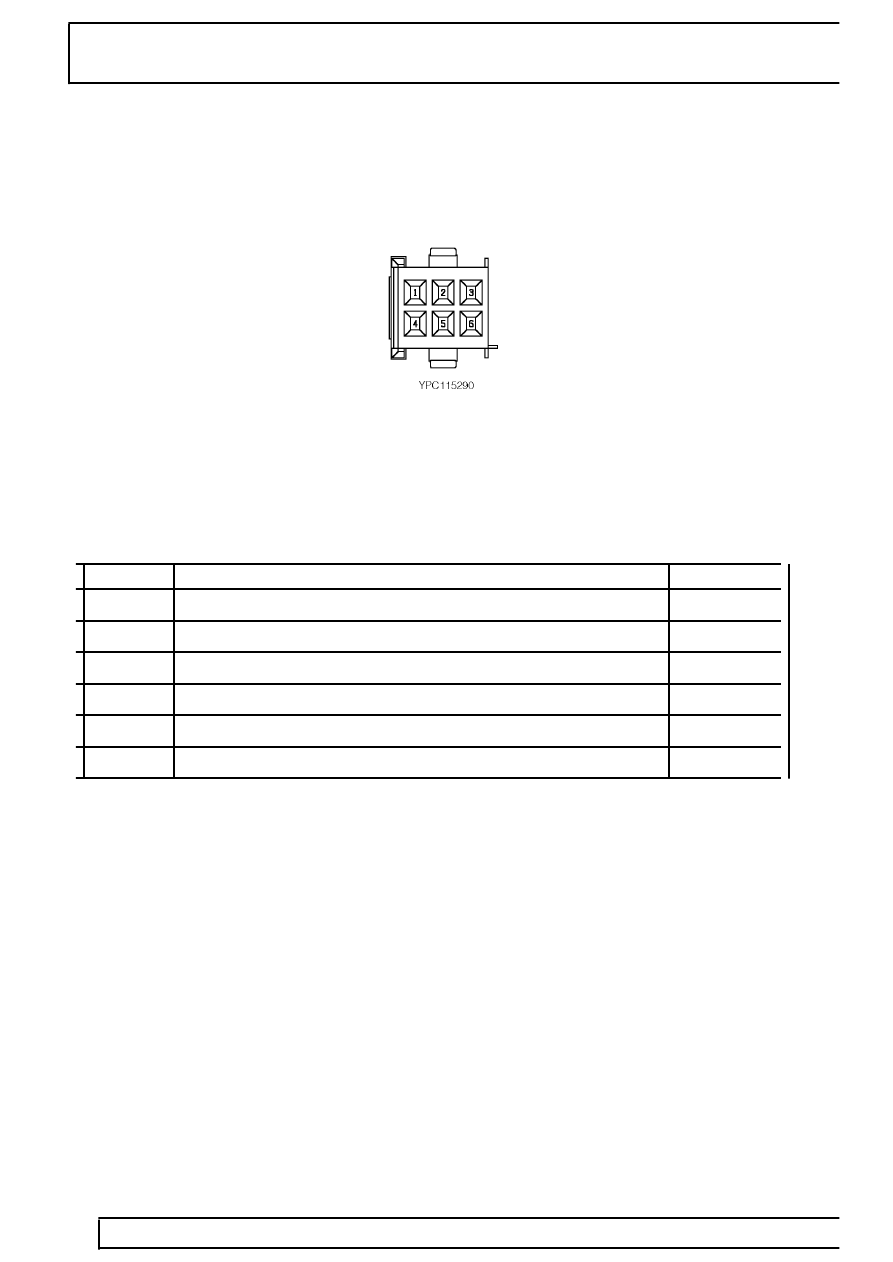

6 way AMP - Black
Pin No.
Description
Input/Output
1
PWM variable illumination signal
Input
2
Ground
Input
3
K-bus
Input/Output
4
+12V Permanent feed
Input
5
+12V Accessory feed
Input
6
Display Frame Rate (60Hz/50Hz) changeover signal
Input
