87
NAVIGATION SYSTEM
NEW RANGE ROVER
10
DESCRIPTION AND OPERATION

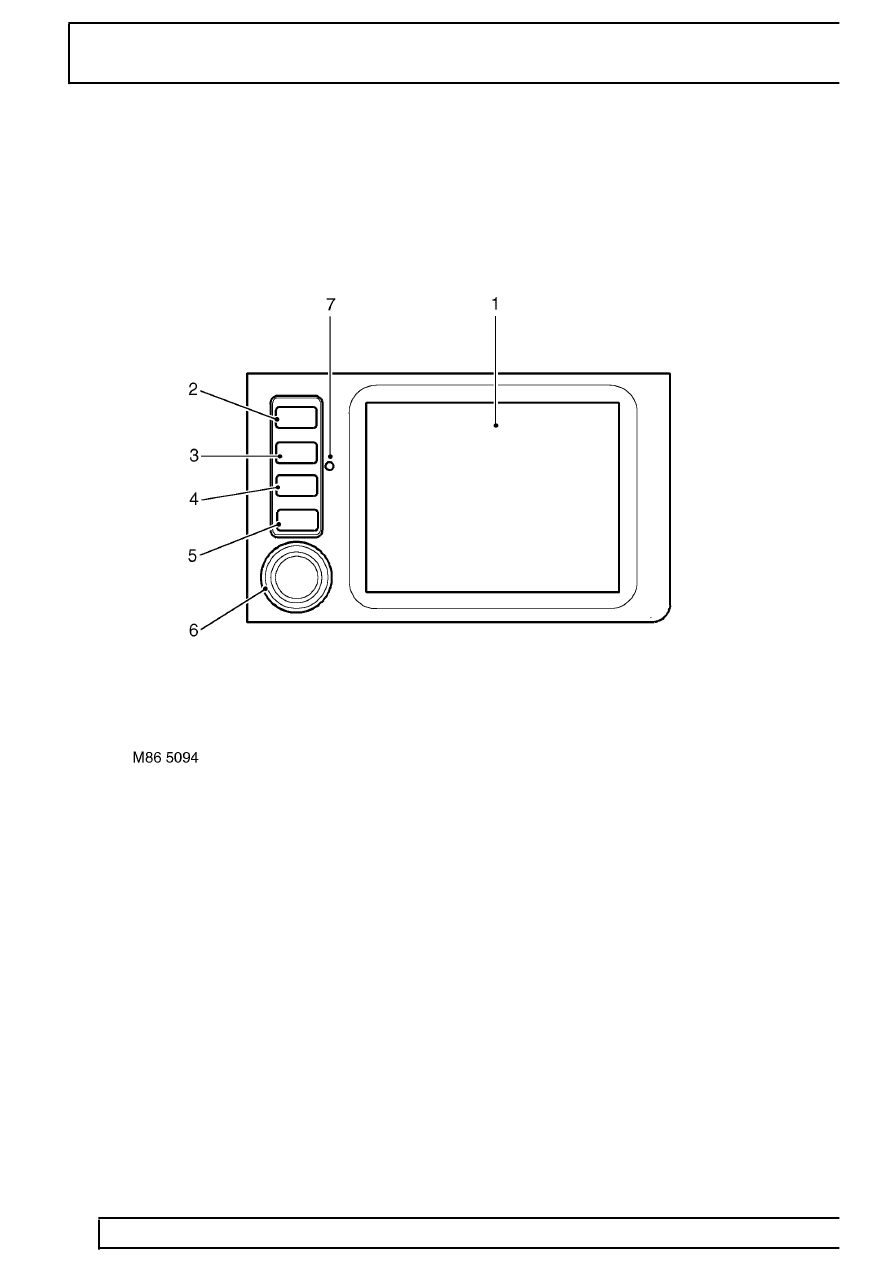

Display and Control Unit
The display and control unit is an integrated display and control unit, which allows the user to operate all the
functions of the navigation system.
1. Liquid Crystal Display (LCD)
2. Mute button
3. RE-RTE (Re-Route) button
4. Menu button
5. Repeat button
6. Navigation rotary controller
7. Photosensor
The display unit is located in the centre of the fascia. The unit comprises of a 127 mm (5 in) colour Liquid Crystal
Display (LCD) screen and controls to operate the navigation functions. The display unit comprises four control
switches, one rotary press menu control and one status LED. A photosensor is used to control the brightness of
the screen in day and night time conditions.
