70

BRAKES

NEW RANGE ROVER

20

DESCRIPTION AND OPERATION

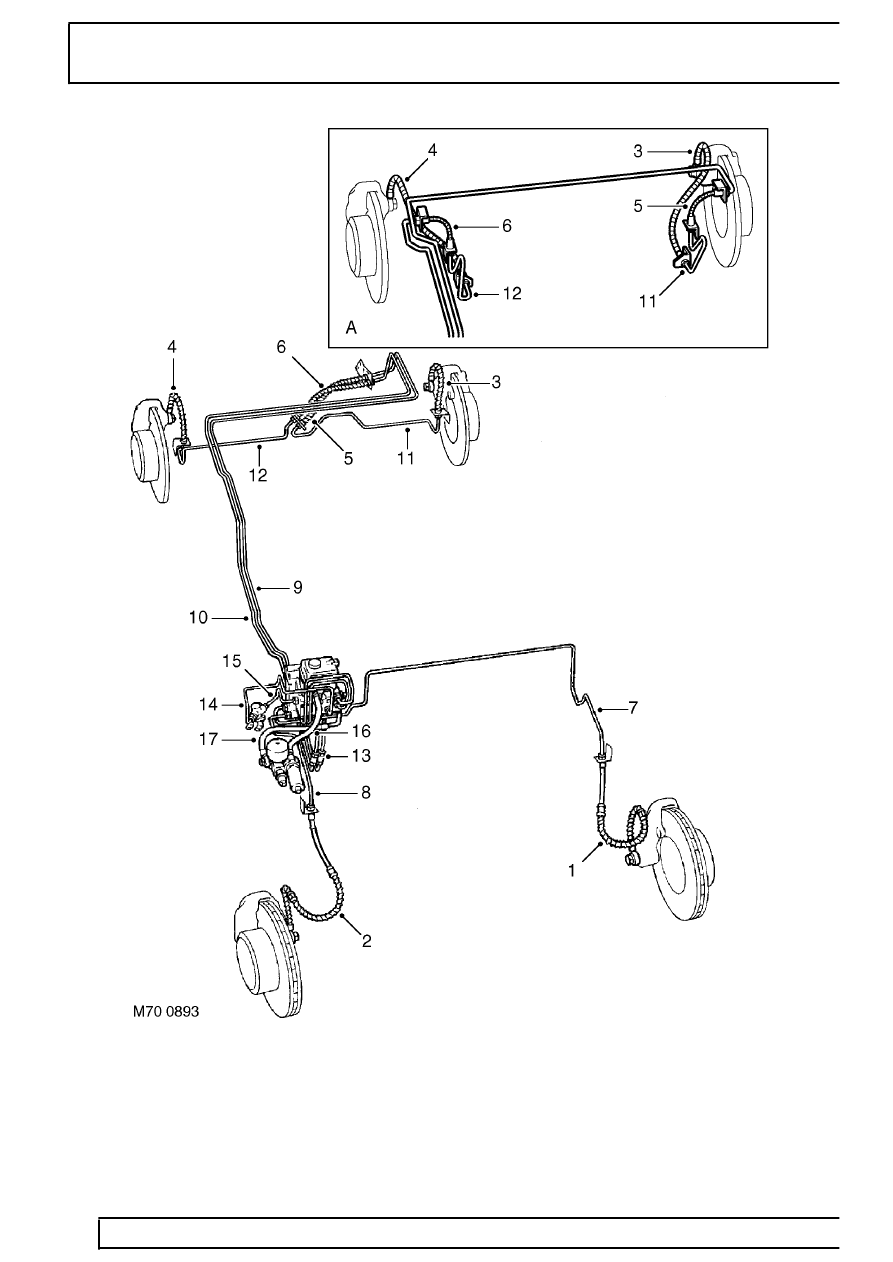

Brake pipe layout - Left hand drive

INSET A = VEHICLES FROM 97MY

FLEXIBLE HOSES

1. Front left hand
2. Front right hand
3. Rear left hand

4. Rear right hand
5. Rear left hand intermediate
6. Rear right hand intermediate

114 Brakes
