Motor - wiper - headlamp

WIPERS AND WASHERS

84-8

REPAIRS

Motor - wiper - headlamp

$% 84.25.12

Remove

1. Remove front bumper assembly.

 +

 EXTERIOR FITTINGS, REPAIRS,

Bumper - assembly - front.

2. Remove headlamp assembly.

 +

 LIGHTING, REPAIRS, Headlamp

assembly.

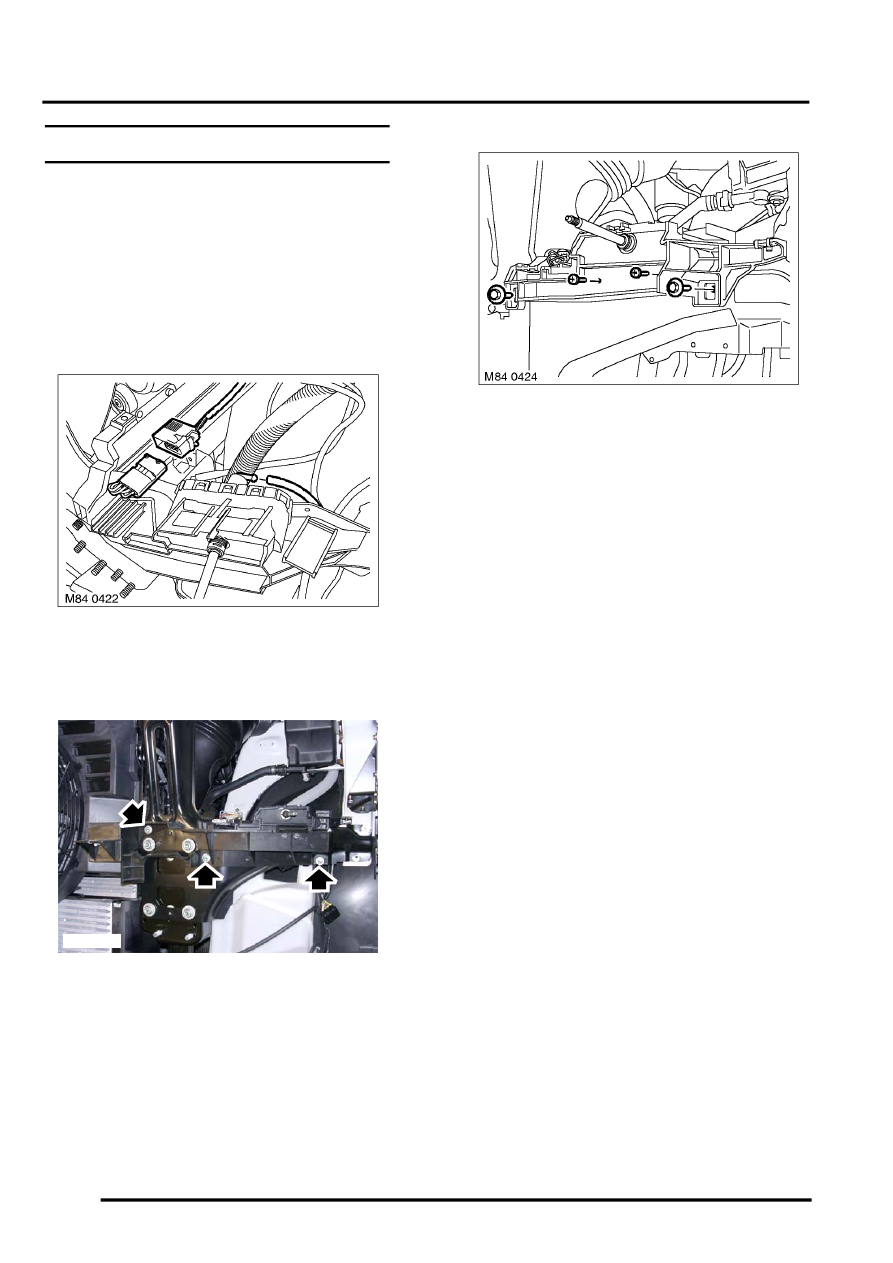

3. Disconnect multiplug and hose from headlamp

wiper motor.

4. Release harness from front panel.

5. Remove 3 bolts securing bumper support

bracket and remove bracket.

6. Remove 2  bolts securing wiper motor retaining

bracket, remove bracket and motor assembly.

7. Remove 2 screws and release wiper motor

from bracket.

Refit

1. Position wiper motor to bracket and secure with

screws.

2. Fit motor assembly, fit and tighten bolts to 10

Nm (7 lbf.ft).

3. Fit bumper support bracket, fit and tighten bolts

to 10 Nm (7 lbf.ft).

4. Secure harness to front panel, connect

multiplug and hose to motor.

5. Fit headlamp assembly.

 +

 LIGHTING, REPAIRS, Headlamp

assembly.

6. Fit front bumper assembly.

 +

 EXTERIOR FITTINGS, REPAIRS,

Bumper - assembly - front.

M84 0423
