Transfer gearbox - Td6 (page 2 of 3)

TRANSFER BOX

41-4

REPAIRS

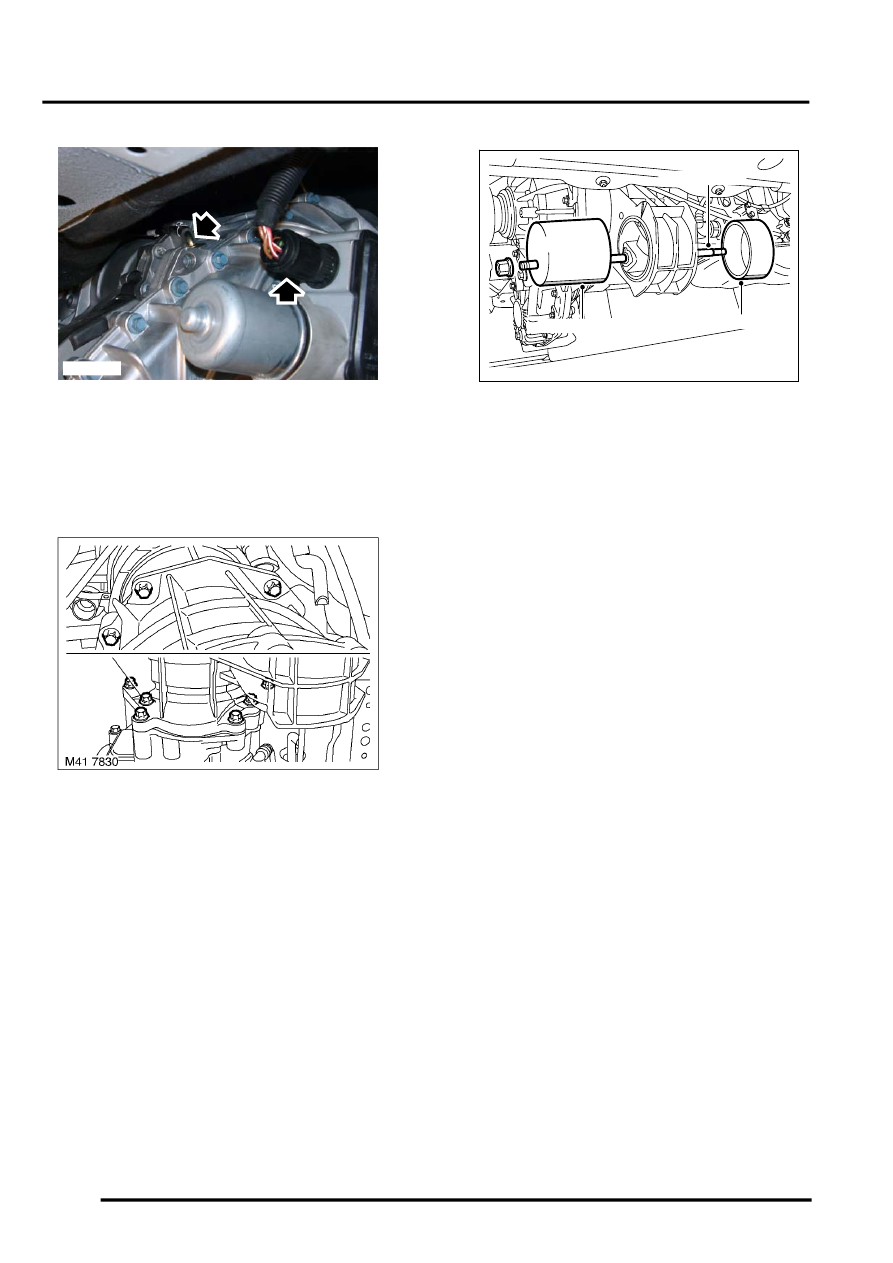

15. Disconnect multiplug from high/low shift motor.
16. Disconnect breather hose from gearbox.

CAUTION: Always fit plugs to open
connections to prevent contamination.

17. Support transfer gearbox on jack.
18. Remove 9 Torx bolts and remove transfer

gearbox.

NOTE: Do not carry out further dismantling if
component is removed for access only.

19. Remove 3 Torx screws securing mass damper

and remove damper.

20. Lubricate centre screw LRT-41-018/4 with

Molybdenum Disulphide grease and assemble
tool as shown to remove mounting from
transfer gearbox.

CAUTION: Ensure tool alignment indicator
is at the 6 o'clock position. The tool
alignment indicator is a machined flat on
LRT-41-018/1 and LRT-41-018/2.

Refit

1. Clean mounting and mating faces.
2. Lubricate new mounting and bore in transfer

gearbox casing to aid assembly.

M41 7829

M12 7539A

LRT-41-018/2

LRT-41-018/1

LRT-41-018/4
