Power steering rack - right hand drive - V8 (page 3 of 5)

STEERING

57-16

REPAIRS

21. Raise engine sufficiently only to clear engine

mountings.

CAUTION: To prevent damage to the
radiator, guide the fan cowl clear of the
radiator as it is raised with the engine.

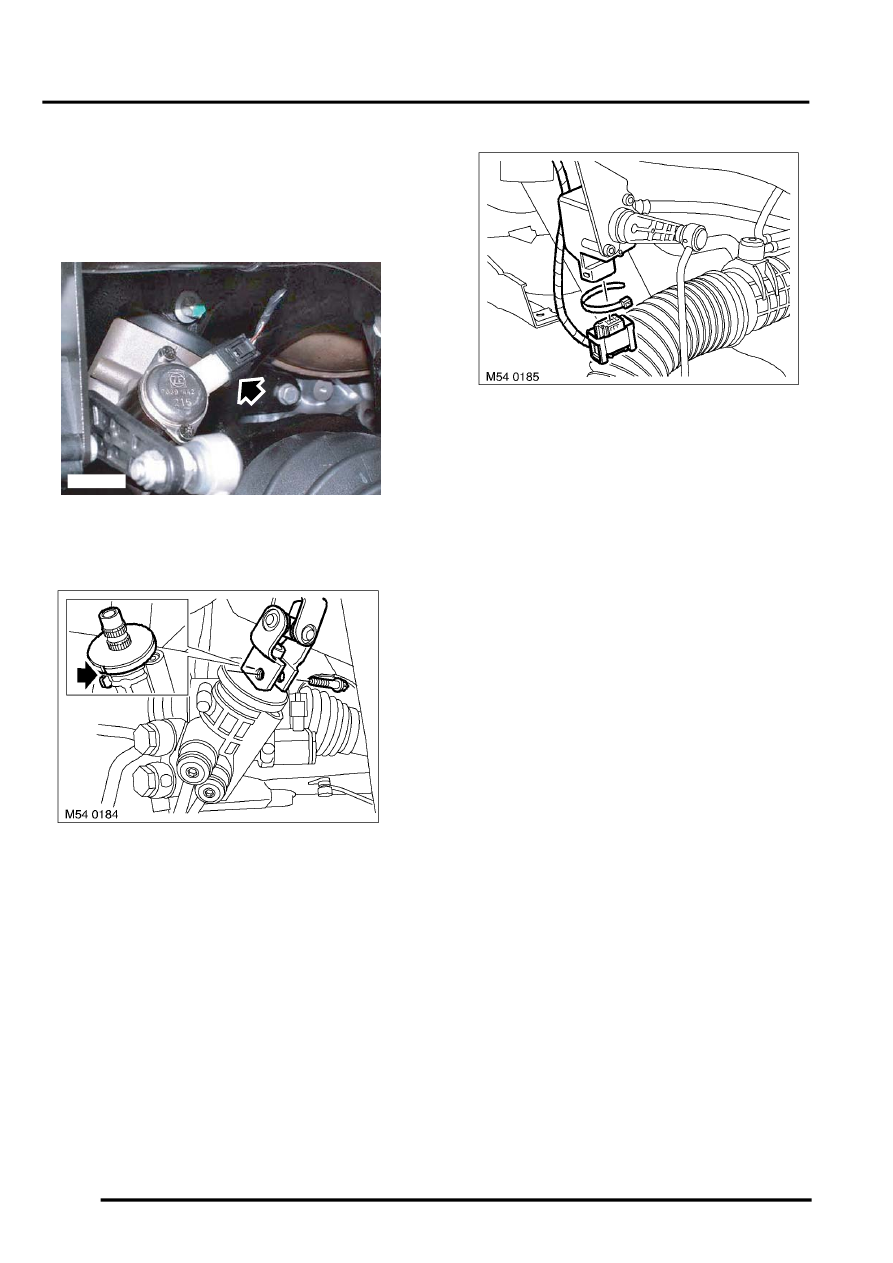

22. Disconnect multiplug from PAS rack pinion

sensor.

23. Note fitted position of lower steering column.

Remove Torx bolt from clamp and disconnect
lower steering column from PAS rack. Discard
Torx bolt.

CAUTION: Do not turn the steering wheel
with the lower steering column
disconnected as damage to the rotary
coupler and the steering wheel switches
may occur.

24. Note fitted position for refit then remove cable

ties securing front height sensor harness to sub
frame and sensors. Disconnect multiplugs from
front height sensors.

25. Remove 2 speed nuts securing each anti-roll

bar heatshield to body and 2 bolts securing
each heatshield to sub-frame. Remove
heatshields.

26. Use a transmission jack to support the sub

frame.

M57 1126
