Power steering rack - left hand drive - Td6

STEERING

REPAIRS

57-7

REPAIRS

Power steering rack - left hand drive -
Td6

$% 57.10.01

Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.


 +

 GENERAL INFORMATION, Electrical

Precautions.

Remove

1. Position vehicle on lift.
2. Disconnect battery earth lead.
3. Raise front of vehicle and support under body.
4. Remove front road wheels.
5. Remove undertray.

 +

 EXTERIOR FITTINGS, REPAIRS,

Undertray - front.

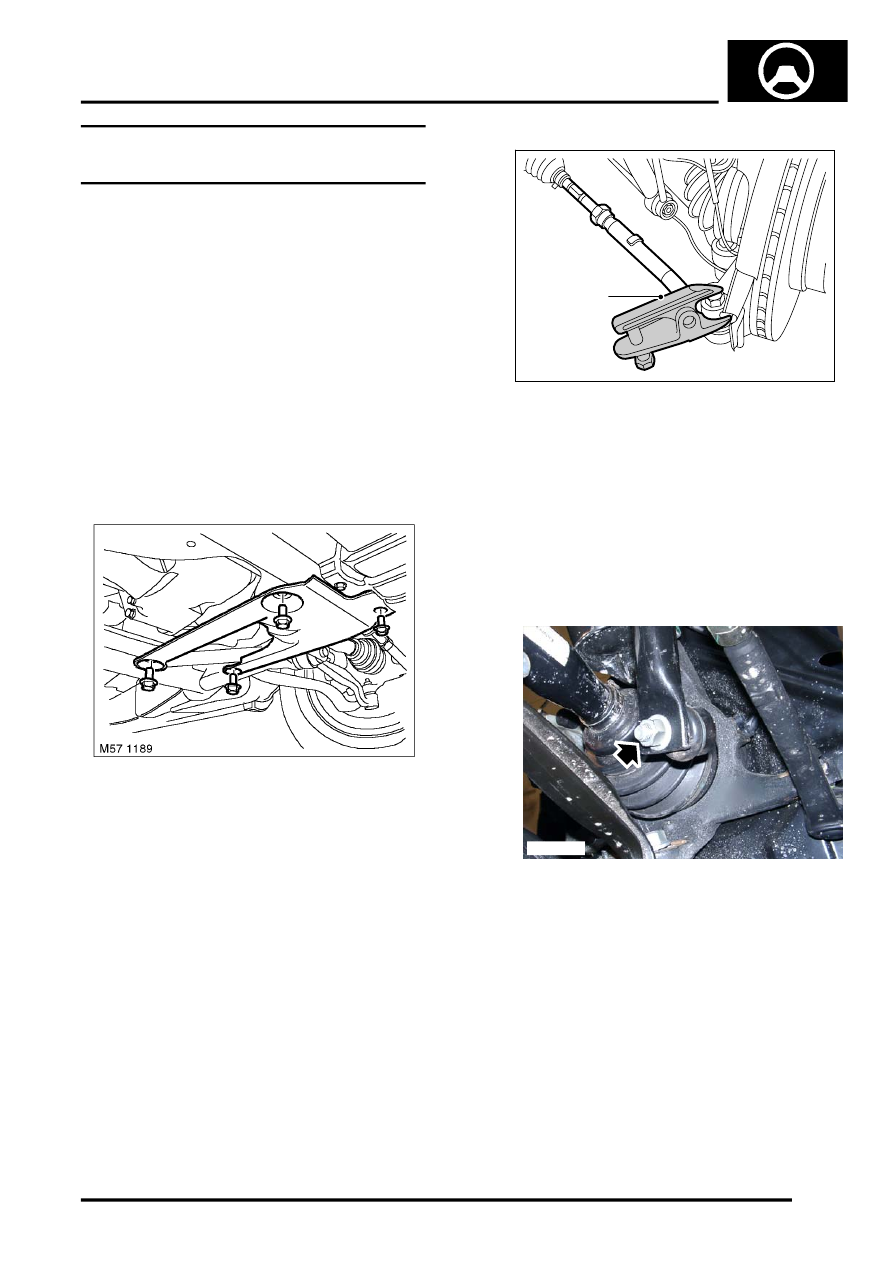

6. Remove 4 bolts securing the air flow panel and

remove panel.

7. Remove LH drive shaft.

 +

 DRIVESHAFTS, REPAIRS, Drive

shaft - front - LH.

8. Remove and discard nut securing RH track rod

ball joint to steering arm.

9. Fit an M14 nut to ball pin, flush with end of pin.

10. Using LRT-57-036 separate ball pin from

steering arm. Remove M14 nut and release ball
pin from steering arm.

CAUTION: Ensure ball joint seal is not
damaged. A damaged seal will lead to
premature failure of the joint.

11. Remove 2 nuts securing links to anti-roll bar

and disconnect links.

M54 0179

LRT-57-036

M60 0778
