Power steering rack - right hand drive - Td6 (page 2 of 5)

STEERING

57-20

REPAIRS

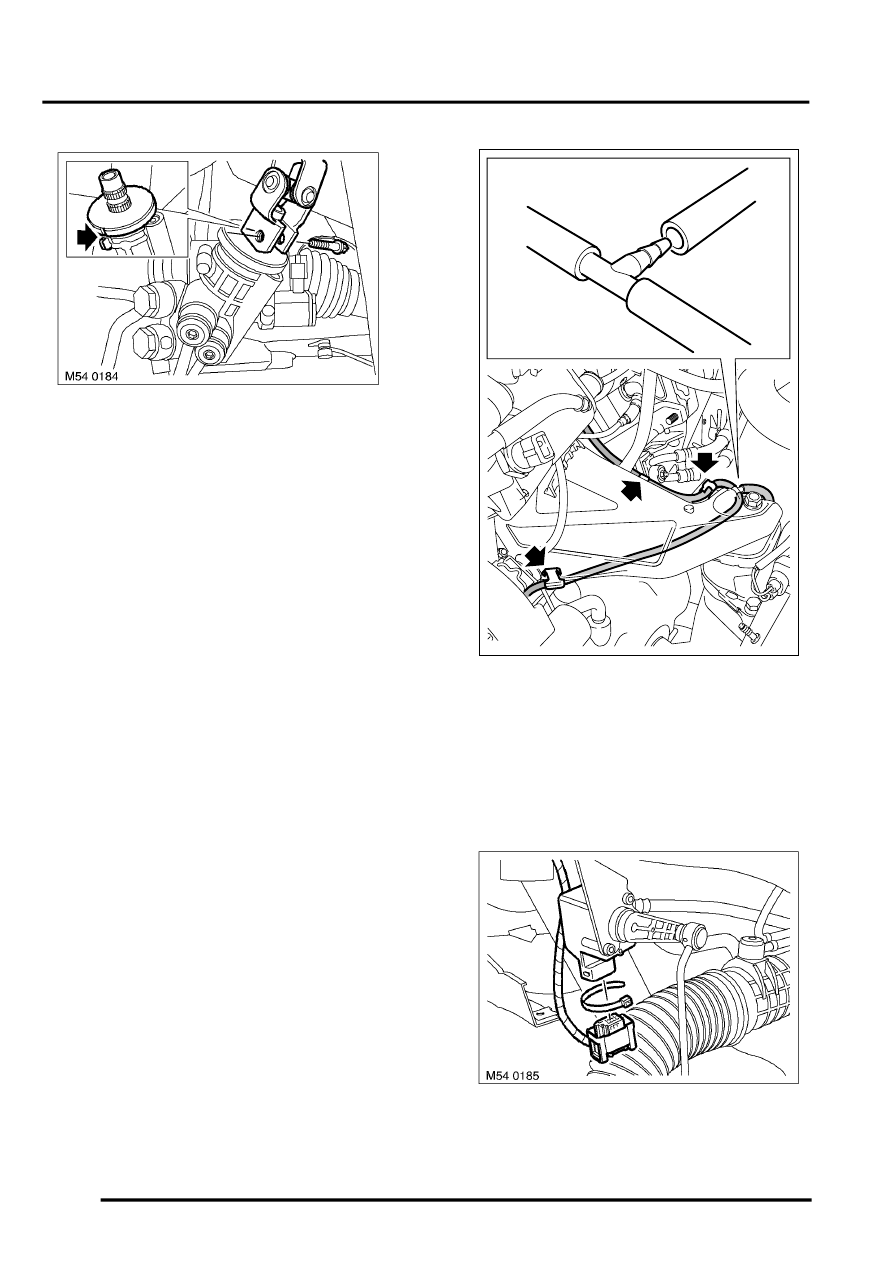

11. Remove Torx screw from steering column

lower clamp.

12. Rotate steering wheel to straight ahead

position, align pinion timing marks and remove
ignition key.

CAUTION: Do not turn the steering wheel
with the intermediate shaft or universal joint
disconnected as damage to the rotary
coupler and the steering wheel switches
may occur.

13. Disconnect column from pinion.

14. Release vacuum hose from 3 clips on engine

LH mounting bracket.

15. Disconnect mounting vacuum supply hose from

'T' piece.

CAUTION: Always fit plugs to open
connections to prevent contamination.

16. Note fitted position for refit then remove cable

ties securing height sensor harness to sub
frame and sensors.

M12 7784
