Anti-roll bar

REAR SUSPENSION

REPAIRS

64-13

Anti-roll bar

$% 64.35.08

Do not depressurise air suspension system before
raising vehicle

Remove

1. Remove exhaust system.

 +

 MANIFOLD AND EXHAUST SYSTEM

- Td6, REPAIR, Exhaust system and
mountings.

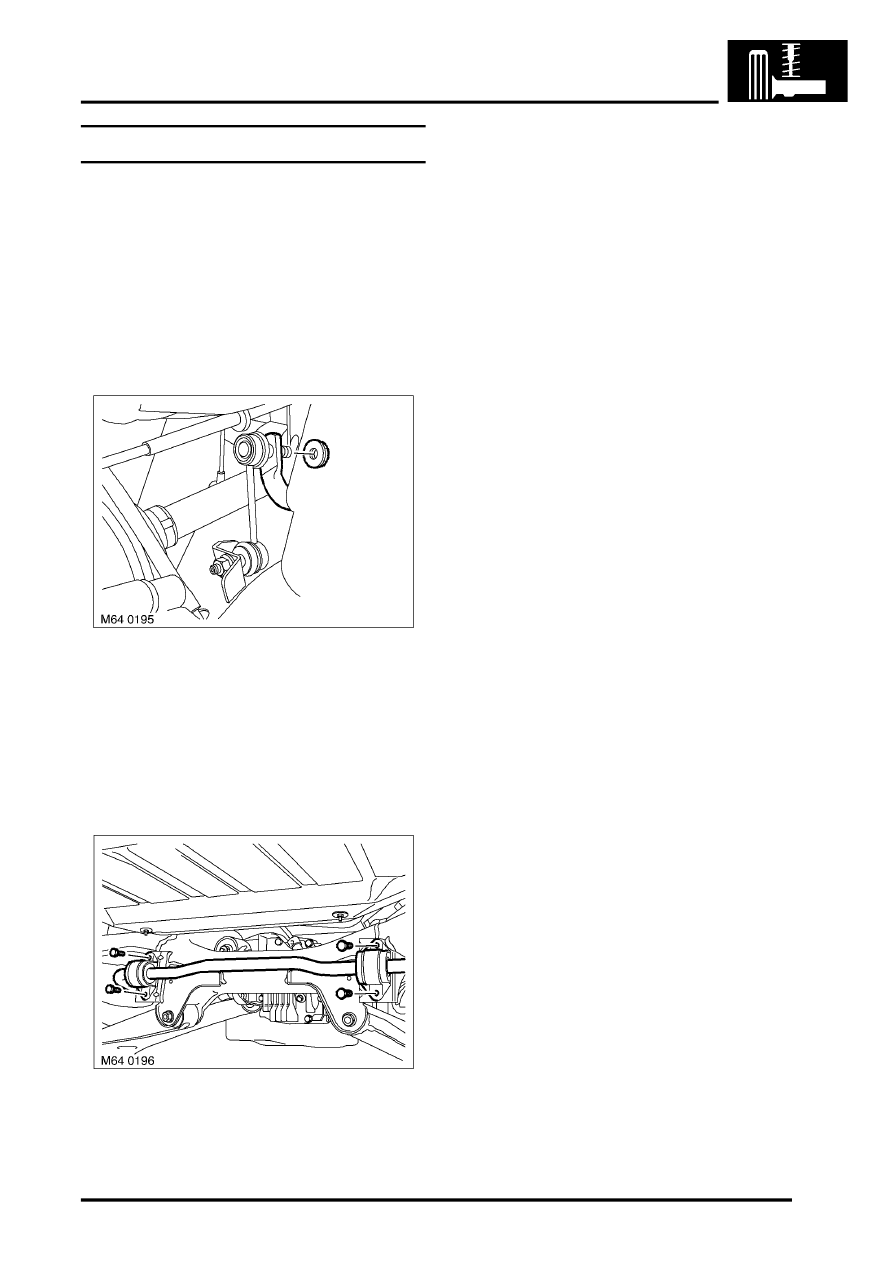

2. Remove nuts securing anti-roll bar links and

release both links from anti-roll bar.

CAUTION: Use an open ended spanner on
flats provided to prevent ball joint rotating.

3. Collect washer from lower fixing.

CAUTION: Note position of washer for refit.

4. Remove 4 bolts securing anti-roll bar bush

clamps to subframe.

5. Remove LH air spring assembly.

 +

 REAR SUSPENSION, REPAIRS, Air

spring.

6. Manoeuvre anti-roll bar over subframe and

remove from vehicle.

Refit

1. Position anti-roll bar to subframe and

manoeuvre into position.

2. Fit LH air spring.

 +

 REAR SUSPENSION, REPAIRS, Air

spring.

3. Align anti-roll bar bush clamps, fit bolts and

tighten to 38 Nm (28 lbf.ft).

4. Connect anti-roll bar links, fit washer and nuts

and tighten to 100 Nm (74 lbf.ft).

CAUTION: The washer is hardened and
must be fitted in the correct position.

5. Fit exhaust system.

 +

 MANIFOLD AND EXHAUST SYSTEM

- Td6, REPAIR, Exhaust system and
mountings.
