Gasket(s) - inlet manifold (page 3 of 6)

MANIFOLD AND EXHAUST SYSTEM - V8

30-2-8

REPAIRS

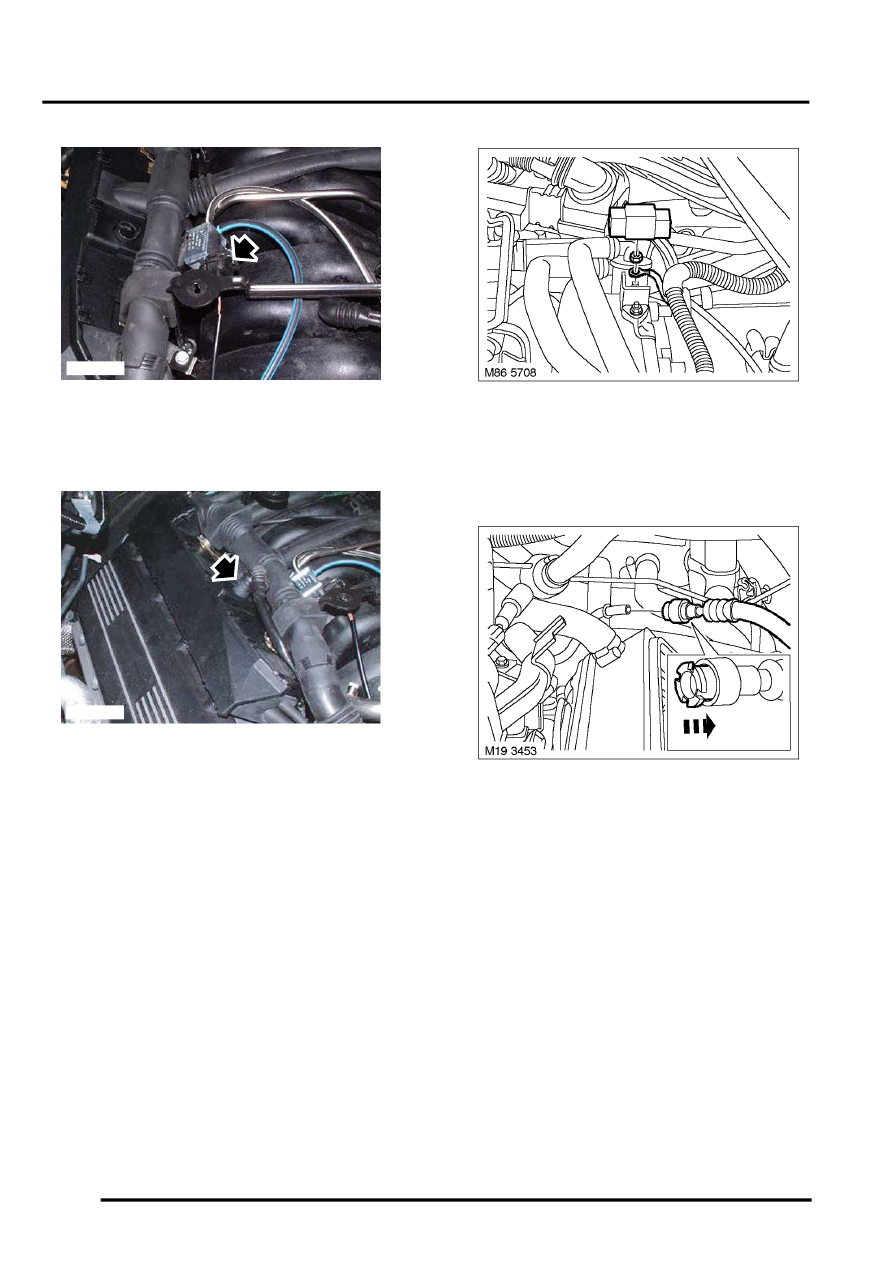

20. Disconnect multiplug from SAI solenoid.
21. Remove SAI solenoid valve from RH fuel

injector harness securing stud.

22. Disconnect multiplug from knock sensor.
23. Remove washer from fuel injector harness

securing stud.

24. Disconnect multiplugs from fuel injectors.
25. Reposition injector harness.
26. Remove air intake plenum.

 +

 HEATING AND VENTILATION,

REPAIRS, Plenum - air intake.

27. Release terminal cover, remove nut and

disconnect 2 cables from terminal post.

28. Depressurise fuel system.

 +

 FUEL DELIVERY SYSTEM - V8,

ADJUSTMENT, Fuel system - depressurise.

29. Disconnect fuel feed hose from fuel rail.

CAUTION: Always fit plugs to open
connections to prevent contamination.

M86 5701

M86 5698
