Plenum - air intake

HEATING AND VENTILATION

80-4

REPAIRS

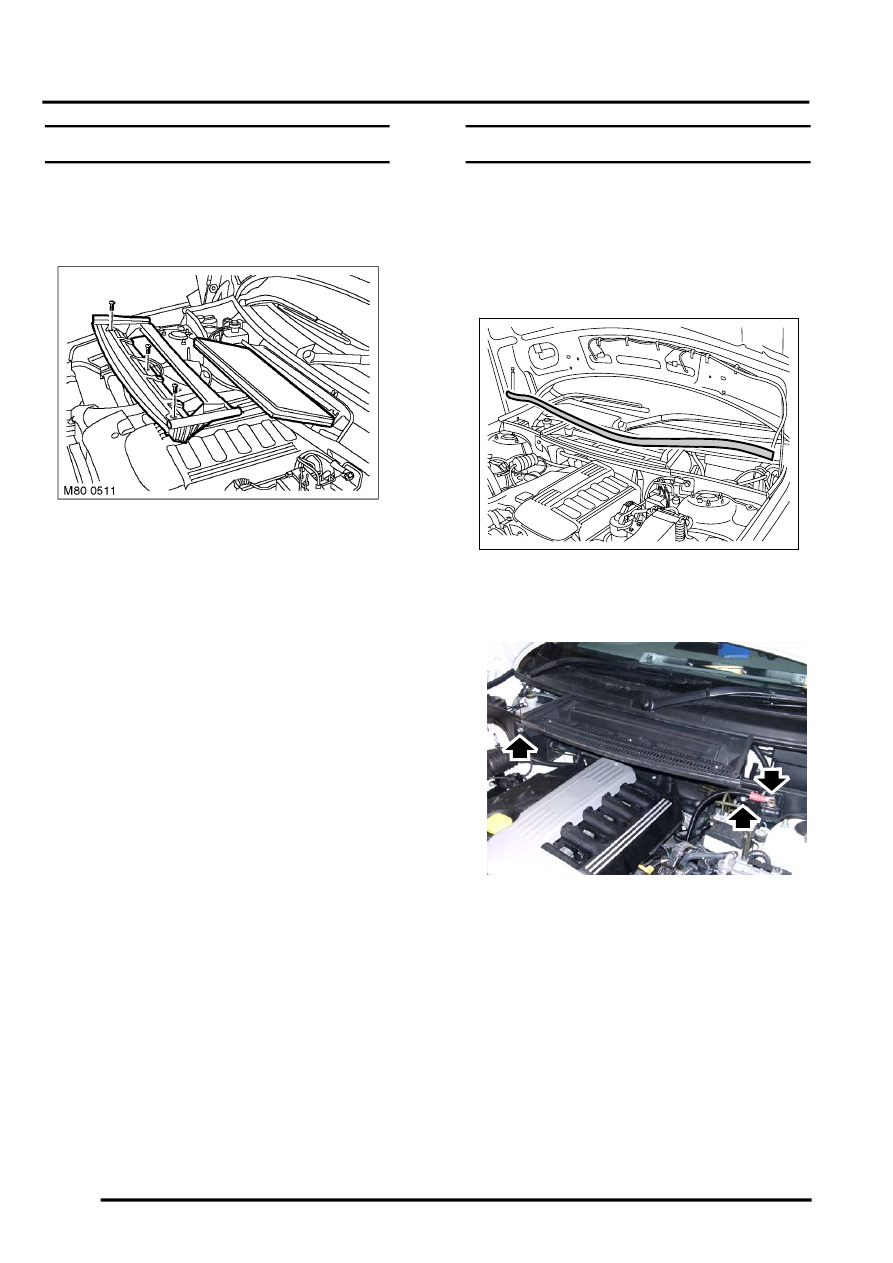

Filter - fresh air intake

$% 80.15.42

Remove

1. Remove 3 screws and remove plenum intake

cover.

2. Lift flap and remove filter.

Refit

1. Clean plenum intake.
2. Fit new filter.
3. Fit cover and secure with screws.

Plenum - air intake

$% 80.15.62

Remove

1. Release bonnet support stays, raise and

secure bonnet in upright position.

2. Disconnect battery earth lead.

3. Remove bonnet sealing rubber from air intake

moulding.

4. Release cover from positive cable.
5. Remove nut and disconnect positive cable from

stud.

6. Remove 2 nuts securing plenum and remove

air intake plenum assembly.

NOTE: Do not carry out further dismantling if
component is removed for access only.

M80 0512

M80 0513
