Bolt and Nut Identification (page 2 of 3)

GENERAL INFORMATION

03-12

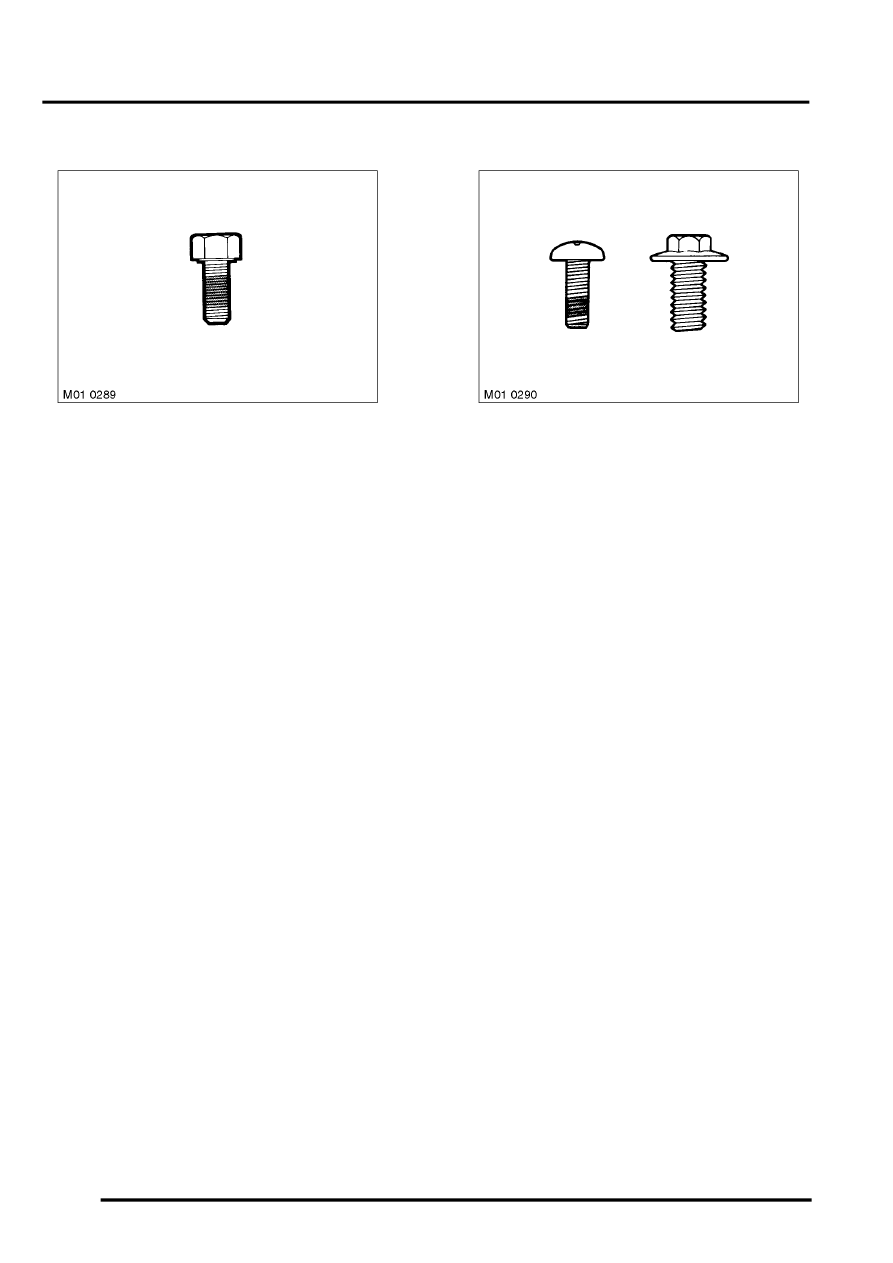

Encapsulated bolts and screws

Encapsulated bolts and screws have a micro-
encapsulated locking agent pre-applied to the
thread. They are identified by a coloured section
which extends 360

°

 around the thread. The locking

agent is released and activated by the assembly
process and is then chemically cured to provide the
locking action.

Unless a specific repair procedure states otherwise,
encapsulated bolts may be re-used providing the
threads are undamaged and the following procedure
is adopted:

l

Remove loose adhesive from the bolt and
housing threads.

l

Ensure threads are clean and free of oil and
grease.

l

Apply an approved locking agent.

An encapsulated bolt may be replaced with a bolt of
equivalent specification provided it is treated with an
approved locking agent.

Self-locking bolts and screws

Self-locking bolts and screws, i.e. nylon patched or
trilobular thread can be re-used providing resistance
can be felt when the locking portion enters the female
thread.

Nylon patched bolts and screws have a locking agent
pre-applied to the threads. They are identified by the
presence of a coloured section of thread which
extends for up to 180

°

 around the thread.

Trilobular bolts (i.e. Powerlok) have a special thread
form which creates a slight interference with the
thread of the hole or nut into which it is screwed.

DO NOT  re-use self-locking fasteners in critical
locations (e.g. engine bearings, flywheel). Always
use the correct replacement self-locking nut, bolt or
screw.

DO NOT  fit non self-locking fasteners in applications
where a self-locking nut, bolt or screw is specified.
