FRONT SUSPENSION

REPAIRS

60-11

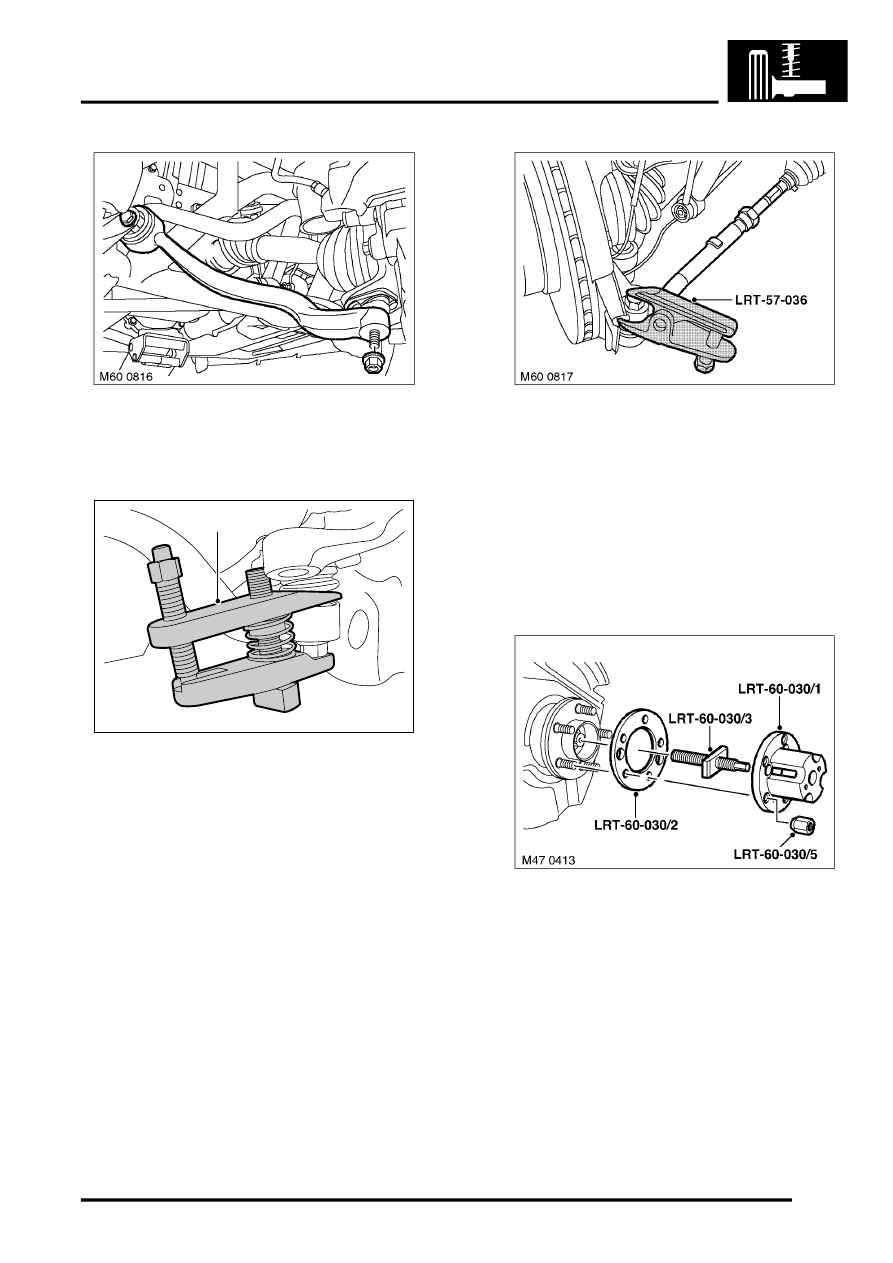

12. Loosen bolt securing tie rod to subframe one

quarter of a turn.

13. Remove nut securing tie rod to ball joint.

14. Using LRT-54-027 release tie rod from ball joint

CAUTION: Ensure ball joint seal is not
damaged. A damaged seal will lead to
premature failure of the joint.

15. Remove and discard nut securing track rod ball

joint to steering arm.

16. Fit an M14 nut to ball pin, flush with end of pin.
17. Using LRT-57-036 separate ball pin from

steering arm. Remove M14 nut and release ball
pin from steering arm.

CAUTION: Ensure ball joint seal is not
damaged. A damaged seal will lead to
premature failure of the joint.

18. Fit centre screw LRT-60-030/3 to LRT-60-030/

1 and fit to hub with spacer LRT-60-030/2.
Secure with nuts LRT-60-030/5.

19. Tighten centre screw to press drive shaft from

flange.

20. Remove tools.

M60 0787

LRT -54-027
